PV22 Mixer High Pressure Hydraulic Pumps For Material Handling Equipments
Mixer high pressure hydraulic pumps for material handling equipments
Mixer hydraulic pump product introduction:

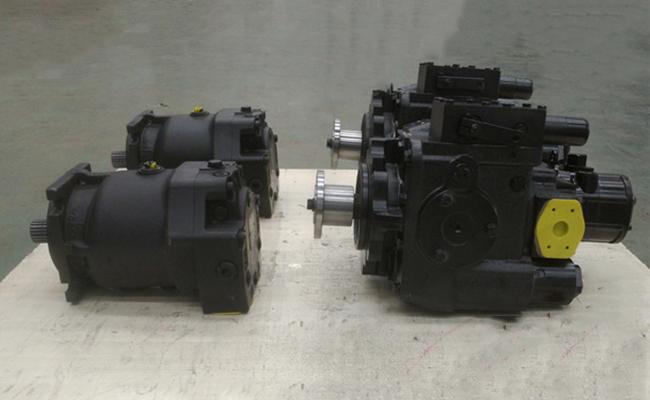

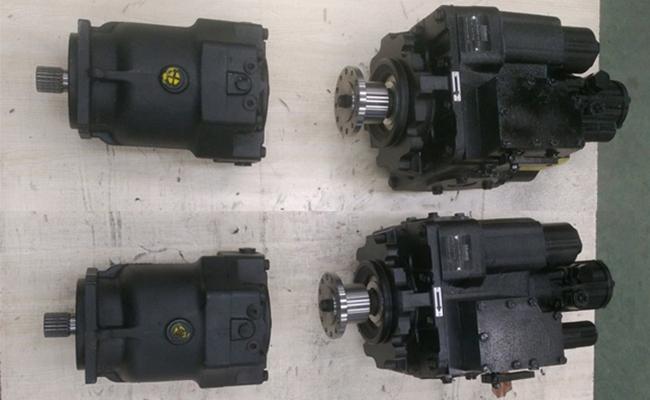

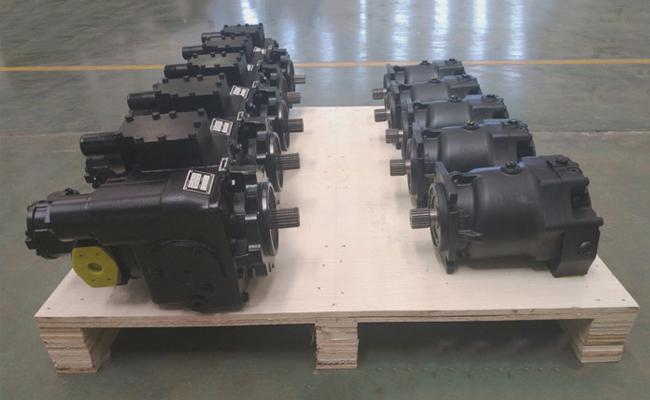

Mixer truck hydraulic consists of Highland hydraulic pump, hydraulic motor and reducer unit, the engine output mechanical energy into hydraulic energy by hydraulic system, and then through the reducer into mechanical energy to rotate the tanks.
Highland High pressure hydraulic pump performance and Characteristics:
1. High efficiency, durable, robust design meets the demands of harsh work conditions for applications in mixer truck.
2. Mixer truck hydraulic pumps has swash plate structure.
3. Be Suitable for closed-loop circuit system of mixer hydraulic pump.
4. High pressure hydraulic pumps have manual servo and hydraulic variable control mode.
5. Mixer hydraulic pumps are variable displacement pumps with a charging oil pump.
High pressure hydraulic pump technical specifications:
| 20 series PV hydraulic pump and MF hydraulic motor | 20 | 21 | 22 | 23 | ||
| Displacement | Max displacement | ml/r | 33.3 | 51.6 | 69.8 | 89.0 |
| Speed | Max continuous working speed (Full load condition) |
r/min | 3500 | 3500 | 3200 | 3200 |
| Rated speed | r/min | 2500 | ||||
| Min continuous working speed | r/min | 500 | ||||
| Pressure | Rated working pressure | Mpa | 35 | |||
| Max working pressure (transient) | Mpa | 42 | ||||
| Continuous working pressure | Mpa | 30 | ||||
| Allowable shell pressure (Absolute) | Mpa | Constant0.25, Peak value0.5 | ||||
| Torque | Continuous output torque (Under continuous working pressure) |
Nm | 162.3 | 252.3 | 342.6 | 432.9 |
| Max output torque | Nm | 227 | 353 | 480 | 606 | |
| Power | Continuous output power | KW | 45 | 79 | 107 | 139 |
| Max power | KW | 62 | 95 | 114 | 150 | |
| Temperature | Allowable shell temperature | ℃ | 80 | |||
| Max working temperature of oil tank | ℃ | 70 | ||||
| Weight |
PV series hydraulic pump hydraulic oil emptying |
kg | 45 | 53 | 63 | 78 |
|
PV series hydraulic motor hydraulic oil emptying |
kg | 30 | 34 | 40 | 47 | |
Our advantages of mixer hydraulic pump:
One year warranty.
Accept small order(MOQ:1pcs)
Provide technical guidance.
Help customer solve hydraulic confusion.
Strict quality control system.
100% factory testing and inspection personnel
in accordance with international standards to ensure the quality of products manufactured.
FAQ of mixer hydraulic pump:
Q1: Could we place a sample order of mixer hydraulic pump?
A: Yes, welcome sample order to test and check quality.
Q2: Do you offer guarantee for mixer hydraulic pump?
A: Each pump will be tested before shipping. Warranty 12 months after shipment for complete assembly.
Q3: What are the payment terms?
A: Full order: 30% as deposit, balance before shipment. Small order/sample order: 100% T/T payment in advance.
Q4: Are you manufacturer?
We are a manufacturer with own plant and professional manufacturing mixer hydraulic pump. We have 20 years experience in hydraulic industry for oversea and domestic markets.
