Vial Powder Filling Stoppering Capping Production Line For Antibiotic Powder Filling Machine
Automatic Vial Bottle Powder Washing Drying Filling Sealing Capping Machine Small Production Line
Brief introduction:
* This production line suitable for Vial washing, Dry and sterilization, Powder filling and stoppering, Capping(roll); Widely use for drugs, Biologies agents, Health products etc.
* Production line composed by QCL Vertical ultrasonic washing machine, Hot air circulation tunnel oven, GTI-FJ Powder filling and stoppering machine, ZG Capping(roll) machine; Can be connected for production line or stand-alone.
* According to customer technological requirements configuration can satisfy different specifications and production speed.
Technical Parameters:
| Product Model | SHH-FJ2 | SHH-FJ4 | SHH-FJ6 |
| Applicable specification | 0.1-3g | 0.1-3g | 0.1-3g |
| Production speed | 60-100 (b/m) | 120-200 (b/m) | 200-300 (b/m) |
| Filling error | ±3% | ±3% | ±3% |
| Water pressure and water consumption |
0.25-0.35mpa, 0.5~5m7h |
0.25-0.35mpa, 0.5~5m7h |
0.25-0.35mpa, 0.5~8m7h |
| Power supply | 380/220v,45KW | 380/220V.85KW | 380/220v,85KW |
| Purify compressed air pressure and air consumption | 0.6-0.8mpa,5~15m7h | 0.6-0.8mpa,30-45m7h | 0.6-0.8mpa.30-45m3/h |
| Exhaust volume | 2800m7h | 3200m3/h | 3200m7h |
| Weight | 4000KG | 8000KG | 12000KG |
| Dimensions | 10000 x 1800 x 1800mm | 12000 x 12500 x2400mm | 12000 x2500 x2400mm |

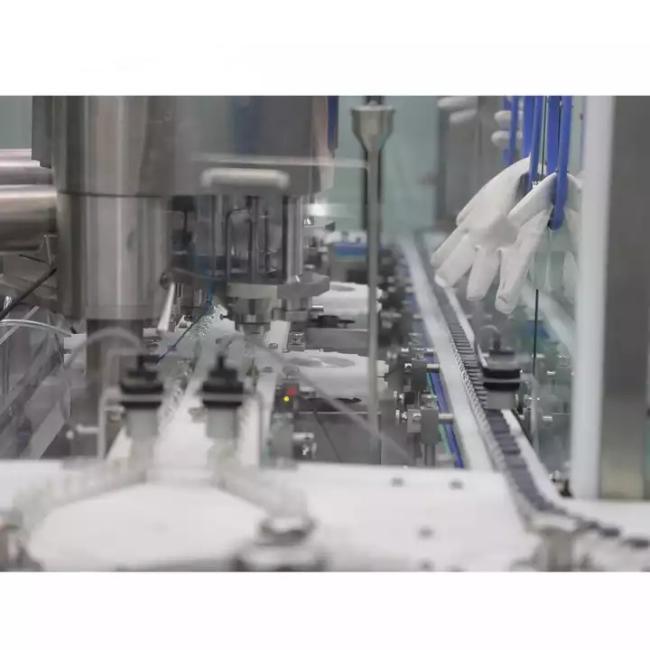

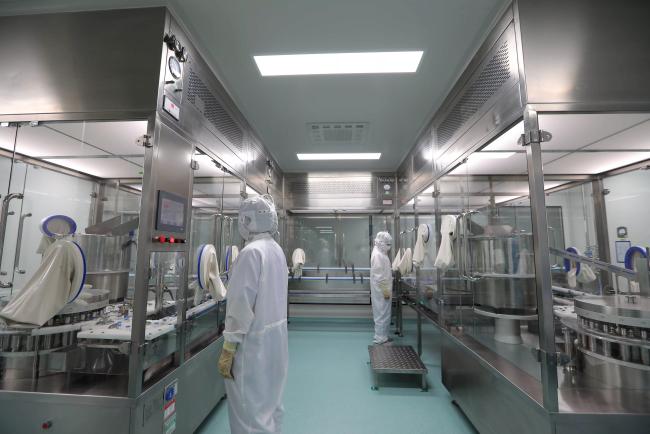

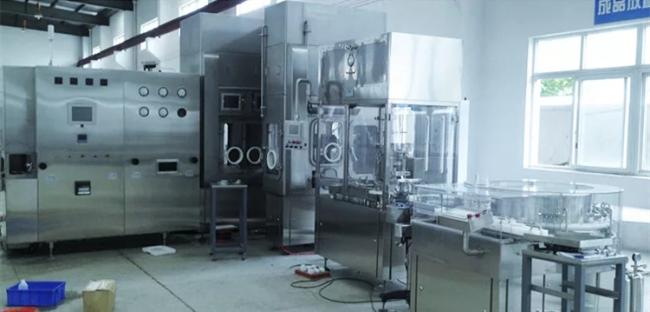

Details Picture:
