Pharmaceutical Glass Injectable Vial Liquid Powder Filling Sealing Washing and Capping Machine
Automatic Pharmaceutical Glass Injectable Vial Liquid Powder Filling Sealing Washing and Capping Machine
Features:
1. The compact line realizes single linkage, continuous operation from washing, sterilizing & drying, filling & stoppering and capping. The whole production process realizes cleaning operation; protects products from contamination, meets the GMP production standard.
2. Full servo control.
3. Transparent self-lifting protective cover with humid air outlet, electric screw control, safe and easy to maintenance.
4. For customers' liquid medicine and filling accuracy requirements, the ceramic pump filling system is selected, which can effectively ensure the filling accuracy and can be flexibly switched.
5. The stoppering form of inserting while rotating can effectively ensure the stoppering effect.
6. Capping machine: No Vial – No Capping, No Stopper – No Capping, Vacuum absorb aluminum scrap device.
Technical Paramater:
| Model | Production line | Suitable size | Output(max) | Power | Net weight | Overall size |
| SHH-Z I | QCL 60 | 2-25 ml | 6000-12000 pcs/h | 69.8 KW | 7500 Kg | 9930×2500×2340 mm |
| ARSM 620/44 | ||||||
| KGF 8 | ||||||
| SHH-Z II | QCL 80 | 2-25 ml | 8000-18000 pcs/h | 85.8 KW | 8000 Kg | 10830×2500×2340 mm |
| ARSM 620/60 | ||||||
| KGF10 | ||||||
| SHH-Z III | QCL 100 | 2-25 ml | 10000-24000 pcs/h | 123.8 KW | 8100 Kg | 10830×2500×2340 mm |
| ARSM 900/100 | ||||||
| KGF 12 |

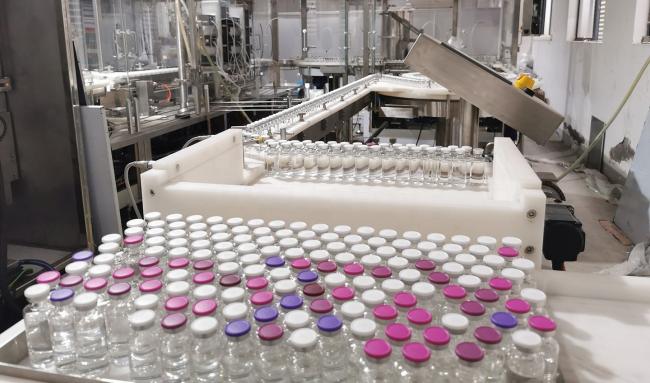

Pictures Details:
