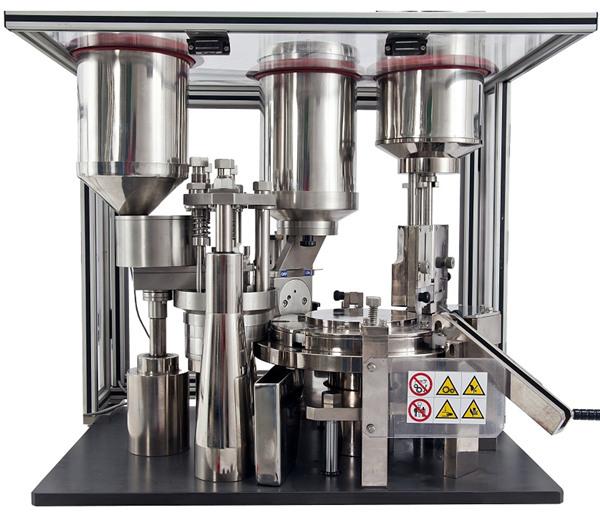

Pharma Fully Auto Capsule Filling Machine 400 caps / min
Automatic Capsule Filling Machine is suitable for filling powder/pellets in hard gelatin capsules. It adopts indexing motion and multi-position tamping method to complete capsule orientation, separation, filling, closing and ejection etc.
With help of different size parts, machine is suitable for different size capsules. The production speed can be controlled by means of a VFD (Variable Frequency Drive). Machine is designed in accordance with cGMP standards. All product contact parts are made of Stainless Steel 316 & machine covered by Stainless Steel 304. Advantage of the machine is advanced design, study structure, precise dosing, and safe and reliable, high filling rate etc.Machine having wide usage in R&D laboratories, Research Institutions, Herbal & Nutraceutical preparations, Unani & Ayurvedic medicines, Pilot batch productions etc.
Usage: Pharmaceutical, Nutritional, Biotech, Health Supplement, Food Product & Cosmetics
| Technical Parameter | |
|
Model
|
SHH- Z400
|
|
Capacity
|
400 caps/min
|
|
Number of Capsules
(per cycle) |
2 |
|
Capsule Size
|
000#-5# and safety capsule
|
|
Power
|
380/220V 50/60Hz
|
|
SNR
|
<75dB
|
