Glass Vial Liquid Pharmaceutical Filling Machine Stoppering Capping Machine
Vial Liquid Filling Stoppering (Plugging) And Capping machine
1. SHH-YG Series Vial liquid filling and stoppering machine

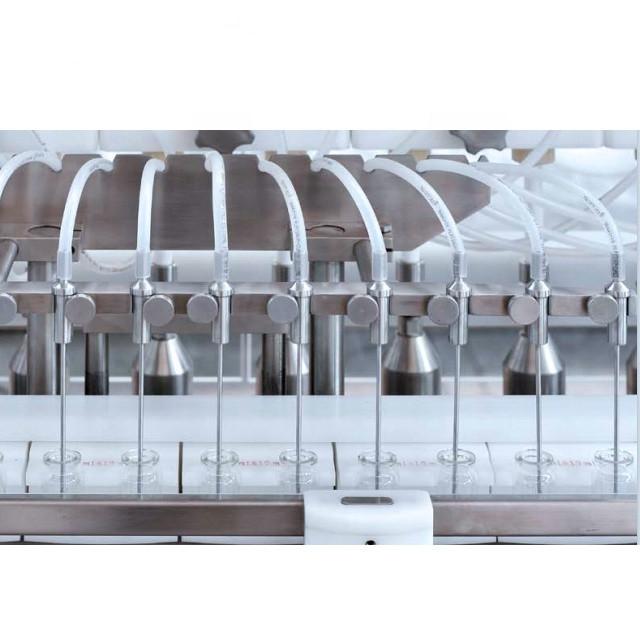

The core design of this liquid filling machine series is to use the combination of advanced PLC control system and high accuracy peristaltic pump, which ensures the accuracy of the filling volume. With the exact amount of liquid filled in, rubber stopper will then be automatically sealed on top of each vial.
Main features:
1. Peristaltic pump with star wheel design
2. Dual feeding, intermittent filling
3. PLC control, stepping motor, auto counting
4. Anti-dripping function
5. Optional N2 device
6. Liquid filling or freeze drying production
Technical parameters:
| Model | SHH-G2 | SHH-G4 |
| Vial Size | 2ml - 30ml vials | 30ml - 100ml bottles |
| Max Capacity |
100-120vials/min (7ml vial with 1ml dosage) |
45 bottles/min (100ml bottle) |
| Power supply | Three phases 380V 50Hz | Three phases 380V 50Hz |
| Power | 1.5KW | 1.6KW |
| Noise Level | ≤65dB | ≤65dB |
| Breakage rate | ≤0.1% | ≤0.1% |
| Completion rate | ≥99.5% | ≥99.5% |
| Tolerance | ≤±2% | ≤±2% |
| Vacuum | -6×10-2MPa, 8L/min | -6×10-2MPa, 8L/min |
| Dimension | 2020*1000*1800mm | 2020*1000*1800mm |
| Weight | 500KG | 500KG |
Details:
