Automatic Glass Ampoule Pharmaceutical Filling Machine 24000 bottles per Hour
Price:
Negotiable
MOQ:
1
Delivery Time:
120-150days
Brand:
Huiheng
Product Description

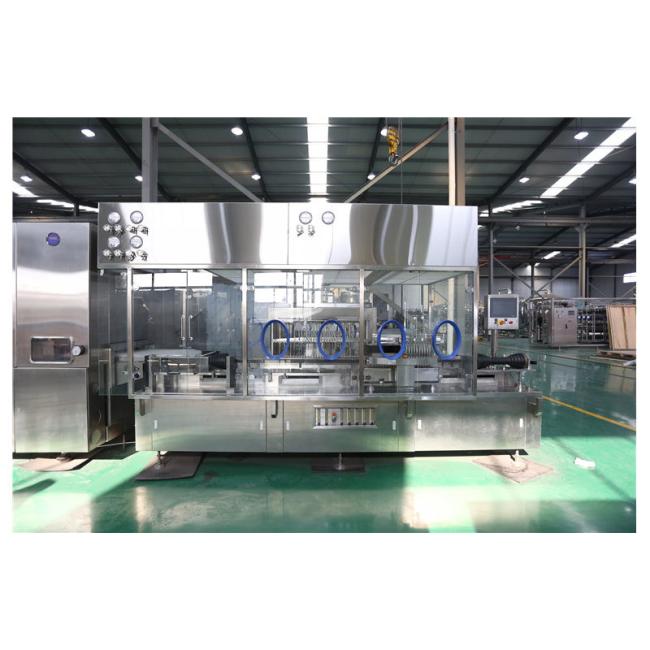

Factory Provider Automatic Glass Ampoule Filling Machine/Washing Sterilizing Filling Production line
Products Description
This line can meet the size range from 1-20ml ampoule of washing,drying and sterilizing to remove heat source, filling and sealing requirements of the production process.
The linkage line consists of this series vertical untrasonic washing machine,this series hot air circulation sterilization tunnel,filling and sealing machine.The linkage line can be used in combination or in a single machine.The linkage line an complete water spray filling,untrasonic cleaning and flushing(internal and external),CA flushing(internal and external), preheating, drying and sterilization to remove heat source, cooling, before and after netrogen, sealing after preheating,sealing and other processes.
Characteristics:
Vertical ulstrasonic washing machine using ultrasonic rough washing,circulating water, WFI and clean compressed air spray and clean the container alternately.Cleaning clarity and visible material detection effect is ideal; it is the most popular cleaning machine in the world today.
The sterilization tunnel adopts the principle of hot air laminar flow and high temperature sterilization process to preheat,dry,sterilize,remove heat and sterilization process.It is the most popular drying and sterilizing machine in the world.
Filling and sealing machine adpots step-by-step bottle convering,positioning filling,wire drawing and sealing.The sealing rate is high.It is the most popular filling and sealing machine in the world.
The interlocking production line adopts PLC control and touch screen operation,which can be used for linkage control or stand-alone operation.The control runs stably and with high automation.
Technical Parameters:
|
Filling Nozzles
|
6
|
8
|
10
|
12
|
16
|
|
Suitable Size
|
1-20ml(ampoule)
|
1-10ml(ampoule)
|
|||
|
Production Capacity(pcs/h)
|
6000-16000
|
8000-21000
|
10000-24000
|
12000-30000
|
16000-36000
|
|
Power Supply
|
380V-50HZ
|
||||
|
Power Capacity(KW)
|
78
|
78
|
80
|
90
|
90
|
|
Total Weight
|
8900
|
8900
|
9400
|
9700
|
10100 |
|
Overall Size(mm)
|
9100*2200*2450
|
9100*2200*2450
|
9260*2200*2450
|
9910*2200*2450
|
10042*2200*2450
|
Details:
