Normal Saline Plastic PP bottle washing filling and sealing production line

Performance characteristics:

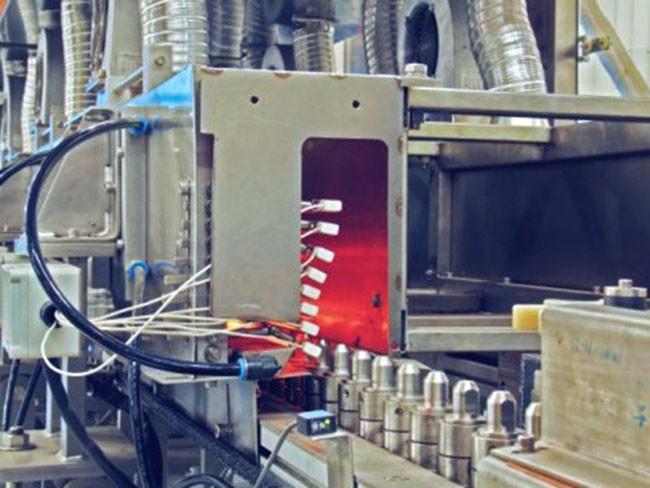

1, welding cover sealing system adopts double up and down heating plate, heating temperature control, respectively, to adapt to the different temperature requirements of the bottle and cap sealing, and USES the adjustable manipulator clamping bottleneck location, unique LIDS to grasp lid, for accurate, bottle sealing bearing area is large, uniform stress, good rigidity, precise position, Minimize the possibility of "dislocation" during the sealing of the welding cover, and reliably ensure the quality of the sealing. Selecting heating and pressing time can meet the requirements of different production speed. In particular, there is no requirement for the consistency of the heating power of each heating plate, which can easily ensure the sealing quality.

2. The gas washing anion generator has the function of failure alarm to ensure the bottle washing effect reliably.

3. Bottle mouth blow drying device is configured before sealing, so as to weld the cover easily;

4. Equipped with exhaust device in bottle before welding cap, the exhaust volume can be adjusted to ensure the bottle shape after sterilization.

5. with no bottle no filling, no cap, no bottle or no cap no heating and other functions;

6. The linkage line does not need to replace the specifications when replacing the production specifications;

7. all hand over finger turntable with steel ball torque clutch, increase the overload protection function, the whole machine overload shutdown;

8. When the welding cover cooling water tank is short of water or water pressure, the heating plate will stop heating and alarm;

9. the production line can be connected with the bottle blowing system synchronously;

10. The part in contact with the liquid is made of 316L stainless steel and sanitary silica gel tube, which can be cleaned and disinfected online and fully meet the requirements of GMP.

Plastic bottle washing, filling and sealing production line technical parameters:

Details:
