Reverse Osmosis Water Treatment System Purified Water System In Pharma

Price Negotiable
Price: Negotiable
MOQ: 1
Delivery Time: 60-90days
Brand: Huiheng
Product Description

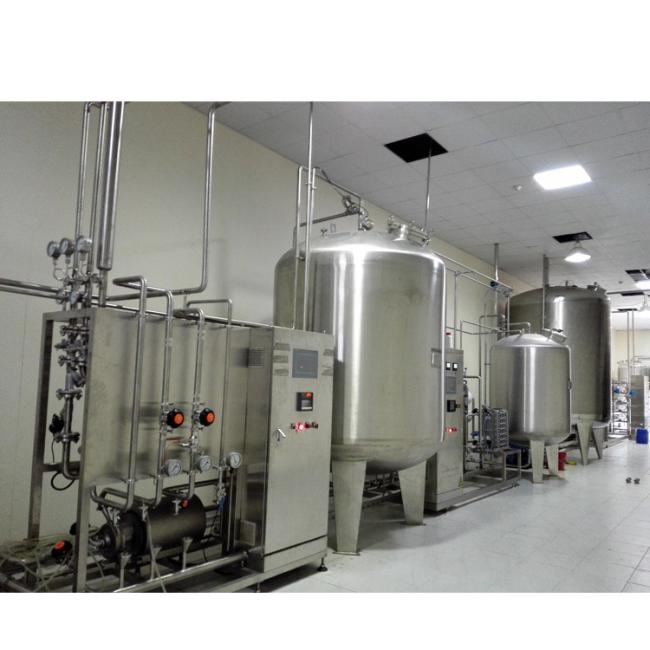

Reverse Osmosis water treatment System purified water treatment purified water system in pharma



Reverse Osmosis Water treatment equipment description:

Reverse osmosis is a membrane separation technique that uses pressure as a driving force by selecting a function of permeating (semi-transmissive) membrane. When the pressure applied in the system is greater than the osmotic pressure of the aqueous solution, the water molecules continuously permeate the membrane. The impurities flowing into the central tube through the product water channel and then flowing out of the water at one end, such as ions, organic matter, bacteria, viruses, etc., are trapped on the water inlet side of the membrane, and then flow out at the concentrated water outlet end, thereby achieving the purpose of separation and purification.

Application fields:

(1) Power industry: boiler feed water, cooling dam;
(2) Electronics industry: ultra-pure water for semiconductor industry, cleaning water for integrated circuits, and formula water;
(3) Food industry: formula water, production water;
(4) Pharmaceutical industry: process water, preparation water, washing water, water for injection, and sterile water;
(5) Beverage industry: formula water, production water, washing water;
(6) Chemical industry: production water, wastewater treatment;
(7) Drinking water project: preparation of ultrapure water and purification of drinking water;
(8) Petrochemical industry: advanced treatment of oilfield injection water and petrochemical wastewater;
(9) Seawater desalination: production and domestic water in island areas, coastal water-deficient areas, ships, seawater oil fields, etc.;
(10) Environmental protection field: recovery of precious metals and water in electroplating rinse water to achieve zero or micro emissions.


Technical Parameters:

Type
Capacity(M3/H)
Pipe DN
(mm)
WP
(MPa)
Material
SHH-RO-0.25
0.25
DN20
≤1.0
Stainless Steel/Carbon Steel
SHH-RO-0.5
0.5
DN20
≤1.0
Stainless Steel/Carbon Steel
SHH-RO-1
1



DN25
≤1.0
Stainless Steel/Carbon Steel
SHH-RO-2
2
DN32
≤1.0
Stainless Steel/Carbon Steel
SHH-RO-3
3
DN40
≤1.0
Stainless Steel/Carbon Steel
SHH-RO-5
5
DN50
≤1.0
Stainless Steel/Carbon Steel
SHH-RO-10
10
DN75
≤1.0
Stainless Steel/Carbon Steel
SHH-RO-20
20
DN100
≤1.6
Stainless Steel/Carbon Steel
CY-RO-30
30
DN125
≤1.6
Stainless Steel/Carbon Steel
CY-RO-40
40
DN150
≤1.6
Stainless Steel/Carbon Steel
CY-RO-50
50
DN200
≤1.6
Stainless Steel/Carbon Steel













Details:
