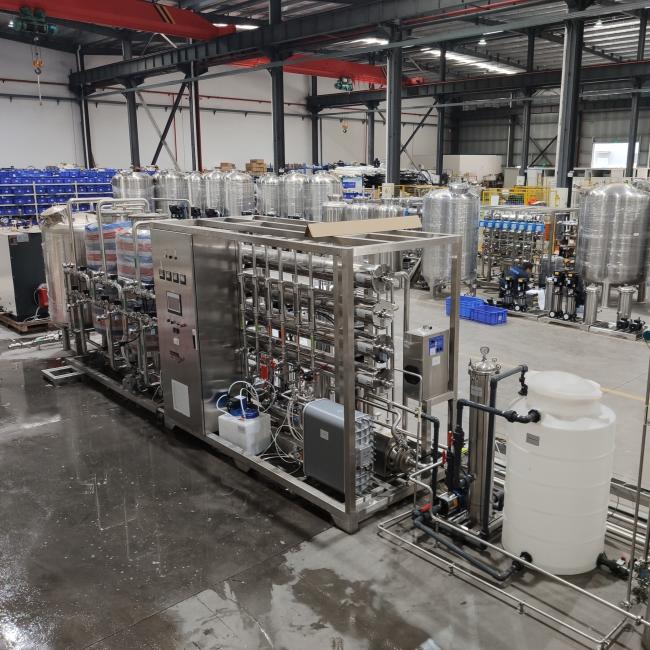

Pharmaceutical Industrial Water Treatment Plant PW For Injection Water System
Pharmaceutical Industry Water Treatment Plant PW for Injection Water System
PW System :
Drinking-water meeting WHO as water source of PW Systems
Pretreatment : Multi-media filter & Softener & Active carbon filter with backflushing automaticly
Treatment : Double Reverse Osmosis with EDI
Storage & Distribution: Vertical pure water tank & sanitary delivery pump & UV lamp & heat exchanger
Sterilization: Ozone sterilizer or heat exchangers
Water quality control routine: Online meters ,such as conductivity , pressure ,flow ,temperature,TOC
1. Product Specifications:
1.1. PW system specifications:
| Feeding water quality | Tap water quality |
| Water capacity | 250 to 10,000LPH |
| Pretreatment | Multimedia ,active carbon ,softener filter |
| Sterilization | Chemical , heat ,UV lamp ,Ozone sterilizer |
| RO membrane | DOW USA |
| EDI brand | Ionpure brand |
| Water pump | Groudfos or CNP |
| Online monitoring | Conductivity,temperature,pressure,TOC,flow rate etc. |
| Meter brands | Chinese & burket ,Jumo &others |
| Control | Automatic with PLC |
| Welding | Automatic |
| Standards | GMP or FDA |
| Other attached products | Distribution system with Loop |
| Other service | Oversea installation |
| Application | capsules, tablets, syrups, suspensions, injectables, soft gelatin capsules, suppositories, creams, and ointments ,healthcare medicine,animal medicine production and so on. |
1.2.WFI System Specifications
| Product Name | Multi effect distillation System |
| Feeding water quality | Purified Water |
| Water capacity | 250 to 10,000LPH |
| Output water quality | Endotoxin is less than 0.25EU/ml |
| Technology | Evaporation unit, separation unit, condensing unit |
| Online Meters | Chinese brand or Europe brand |
| Endotoxin reducing rate | > 99.99% |
| Water pump | Groudfos or CNP |
| Online monitoring | Conductivity,temperature,pressure,TOC,flow rate etc. |
| Control | Automatic with PLC |
| Welding | Automatic |
| Standards | cGMP |
| Other attached products | Distribution system with Loop |
| Other service | Oversea installation |
| Application | Injection (IV) water production & cleaning system & Water for sterile pharmaceutical production |
2.Product Features:
2.1 Features of PW System
- Backwashing for the pretreatment filter
- Heat water disinfection for the active carbon filter
- 1st ,2nd RO Water Conductivity & water flow rate Online monitoring
- EDI water resistance online monitoring
- TOC online monitoring is optional
- Separated CIP device for the RO membrane
- Whole stainless steel comply with GMP standards
- Recycling system for pure water with conductivity and flow rate online monitoring
- 2nd RO & EDI concentrated water back to the raw water tank
- Heat water or Ozone sterilizer disinfection for pure water and loop system
2.2 Features of WFI System
- Online monitoring
- Seperated distribution system
- more than 99.99% endotoxin reducing rate
- Advanced technology and process ; High performance
- Easy to operate;Use reliable;Low noise;Energy saving
- The maximum capacity of multi-effect distillation machine is about 10000L/H.
3.Our Service :
- Technical discuss service
- Design and offer drawing & proposal
- Documents service
- Safe shipment service
- Oversea installation service
