Automatic Vial Bottle Powder Washing Drying Filling Capping Machine Line
Price:
Negotiable
MOQ:
1
Delivery Time:
120-150days
Brand:
Huiheng
Product Description

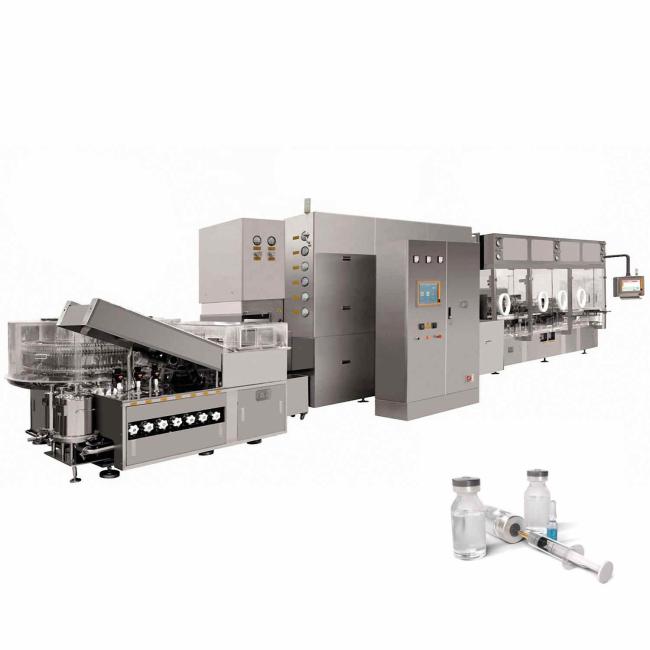

Automatic Vial Bottle Powder Washing Drying Filling Capping Machine Production Line
Equipment Brief introduction
* This production line suitable for Vial washing, Dry and sterilization, Powder filling and stoppering, Capping(roll); Widely use for drugs, Biologies agents, Health products etc.
* Production line composed by SHH-CL series Vertical ultrasonic washing machine SHH-HX series Hot air circulation tunnel oven, SHH-FJ series Powder filling and stoppering machine, SHH-ZG series Capping(rolling) machine; Can be connected for production line or stand-alone.
* According to customer technological requirements configuration can satisfy different specifications and production speed.
Technical Parameters:
|
Product Model
|
SHFJ-2
|
SHFJ-4
|
SHFJ-6
|
|
Applicable specification
|
0.1-3g
|
0.1-3g
|
0.1-3g
|
|
Production speed
|
60-100 (b/m)
|
120-200 (b/m)
|
200-300 (b/m)
|
|
Filling error
|
±3%
|
±3%
|
±3%
|
|
Water pressure and water consumption
|
0.25-0.35mpa,0.5~5m7h
|
0.25-0.35mpa,0.5~5m7h
|
0.25-0.35mpa,0.5~8m7h
|
|
Power supply
|
380/220v,45KW
|
380/220V.85KW
|
380/220v,85KW
|
|
Purify compressed air pressure and air consumption
|
0.6-0.8mpa,5~15m7h
|
0.6-0.8mpa,30-45m7h
|
0.6-0.8mpa.30-45m3/h
|
|
Exhaust volume
|
2800m7h
|
3200m3/h
|
3200m7h
|
|
Weight
|
4000KG
|
8000KG
|
12000KG
|
|
Dimensions
|
10000 x 1800 x 1800mm
|
12000 x 12500 x2400mm
|
12000 x2500 x2400mm
|
Details:
