MD5152 Smart Screwdriver Clockwise High Accuracy with Hexagon Batch Head

Price Negotiable

Price: Negotiable

MOQ: 1

Delivery Time: 1-4 weeks

Brand: AND

Product Description

Machine-loading Smart Screwdriver MD5152 High accuracy Own factory and patents

MD5152 Machine-loading Smart Screwdriver

Professional concept of modular and combined design solution

Leading servo motor drive plus precision reduction structure

Blow/suction optional automatic feeding method

Safe and reliable special cable and connector configuration

Multi-style, multi-series and multi-specification product selection

Beautiful and compact appearance structure, convenient and flexible installation method and suitable for a variety of applications

Notice that this model only works with ACT series controller ACT-M10**.

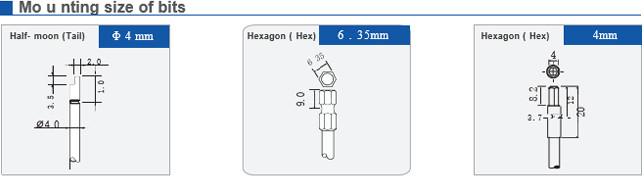

It can be connected properly with ACT M10** model controllers. MD5152 works with hexagon screwdriver bits as 4mm diameter.

Just like MD5151, this model aim for higer runing speed and can achieve 5000 rpm at maximum.

At this speed with 0.20~0.90's torque output range you can expect nice and fast assembly.

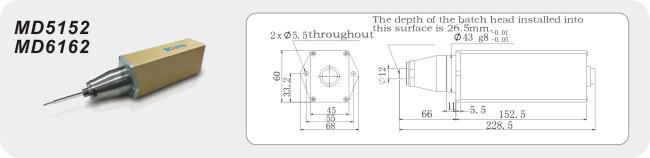

Dimensions (mm)

specifications

Model	Adapted controller	Tool cable	Torque output range			Maximum Speed (rpm)	Weight (kg)	Applicable batch head	Adapted outer diameter of screw(mm)
			kgf.cm	N.m	lbf.in
MD2120	ACT-M00XX HNA-M21XX	C112X	0.20～2.35	0.02～0.23	0.18～2.04	5000	0.5	Tail	1.0～2.0
MD2121								Hex(6.35mm)
MD2350	ACT-M01XX HNA-M23XX		1.52～9.18	0.15～0.90	1.33～7.97	1200	0.7	Tail	2.0～3.0
MD2351								Hex(6.35mm)
MD2460	ACT-M02XX HNA-M24XX		2.00～12.23	0.20～1.20	1.77～10.62	1000	0.7	Tail	2.0～4.0
MD2461								Hex(6.35mm)
MD5151	ACT-M10XX	C212X	2.04～9.18	0.20～0.90	1.77～7.97	5000	1.0	Hex(6.35mm)	1.8～3.0
MD5152								Hex(4mm)
MD5381	ACT-M11XX		8.16～30.60	0.80～3.00	7.08～26.55	1200	1.3	Hex(6.35mm)	2.5～5.0
MD5382								Hex(4mm)
MD5601	ACT-M14XX		10.20～66.28	1.00～6.50	8.85～70.80	600	1.5	Hex(6.35mm)	4.0～6.0
MD6161	ACT-M20XX		3.06～13.26	0.30～1.30	2.66～11.50	5000	1.1	Hex(6.35mm)	2.0～4.0
MD6162								Hex(4mm)
	ACT-M21XX		10.20～45.90	1.00～4.50	8.85～39.83	1200	1.4	Hex(6.35mm)	3.0～6.0
MD6392								Hex(4mm)
MD6601	ACT-M24XX		40.80～102.00	4.00～10.00	35.40～88.50	600	1.7	Hex(6.35mm)	4.0～8.0
MD6701	ACT-M27XX		71.30～153.00	7.00～15.00	61.90～132.00	300	1.9	Hex(6.35mm)	6.0～10.0
