ACT - M 1 0 2 1 Compact Electric Screwdriver Power Controller With TFT LCD Monitor
compact configuration convenient flexible installation touch screen ACT series screwdriver controller
ACT Series
Controller

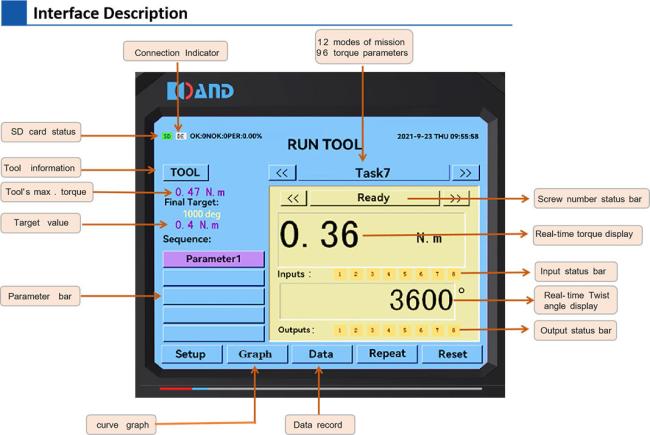

With TFT-LCD monitor, it is able to display the setting, programming, and status of the machine.
12 task modes that can be used for multiple assembly requirements
Up to 8 different torque parameter settings per task
Built-in servo driver can provide precise control of torque, corner monitoring and deceleration
tightening
Programmable IO and system extension components for process control
Communication interface for advanced data storage and factory control interactions
Dual operation and monitoring functions, such as physical button and LED indicator light, to further
improve the reliability of the controller
Beautiful and compact configuration, convenient and flexible installation, suitable for many applications
Specifications
| Model | ACT-M/H 0XX1 | ACT-M1/2XX1 | ACT-M3/4XX1 | ACT-M5XX1 |
| Input voltage | 1∅AC200～230V±10%50/60HZ | |||
| No-load consumption【1】 | <20W | <15W | <30W | |
| Output power【2】 | 40W | 100W/150W | 200W/400W | 750W |
| Display (Operation interface) | ① TFT-LCD,Touch Screen support | ② 3 function buttons+3 LED indicators | ||
| Torque accuracy | Within the maximum output torque range≤3δ±5%,else≤3δ±8% | |||
| The smallest unit of twist angle display | 1degree(1°) | |||
| Tightening method | ● Torque as priority (angle simultaneous monitoring secondly) | ● Angle as priority (torque simultaneous monitoring secondly) | ||
| IO channel | 8_CH Optocoupler isolated input(20mA/CH,Max) , 8_CH relay contact output(3A/CH, Max) | |||
| Communication interface【3】 | ①RS232 ②RS485 ③CANopen ④Ethernet ⑤EtherCAT | |||
| Recommended use environment | Temperature -10 °C ～ +60 °C, humidity <90% RH (no condensation) | |||
| Storage environment | Temperature -20 °C ～ +85 °C, humidity <90% RH (no condensation) | |||
| Weight | about 5.5kg | |||

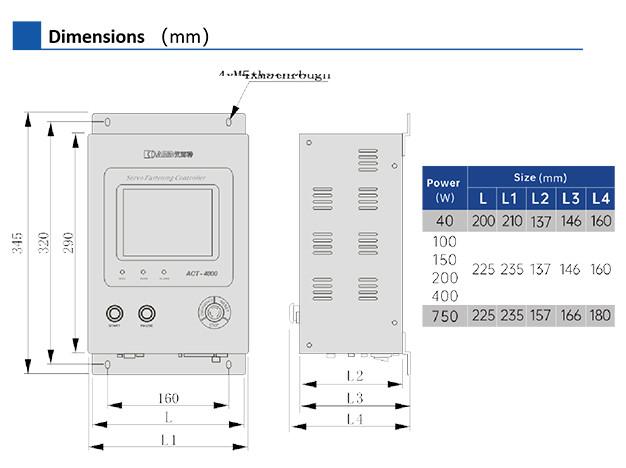

| Dimensions【4】 | Please refer to"Dimensions" | |||
[2]The output power refers to the maximum output power of the internal servo drive of the controller, which matches the mounted servo motor.
[3]For the configuration of the communication interface, please refer to the product selection table.
[4]The external dimensions are the maximum appearance of the controller itself when erected and in front of your view.
