MD2460 Servo Smart Mini Electric Screwdriver Compact Appearance Structure
Price:
Negotiable
MOQ:
1
Delivery Time:
1-4 weeks
Brand:
AND
Product Description
Machine-loading Servo Smart Screwdrive MD2460 Tightening data can be stored for 600 days and can be exported.
MD2460 Machine-loading Servo Smart Screwdriver
- Professional concept of modular, combined design solutions
- Leading servo motor drive plus precision reduction structure
- Blow/suction selectable automatic material supply method
- Safe and reliable special cable and connector configuration
- Multi-style, multi-series and multi-specification product selection
- Beautiful and compact appearance structure, convenient and flexible installation method and suitable for a variety of applications

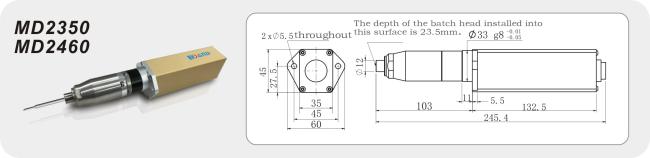

Dimensions
| Model | Adapted controller |
Tool cable | Torque output range | Maximum Speed (rpm) |
Weight (kg) |

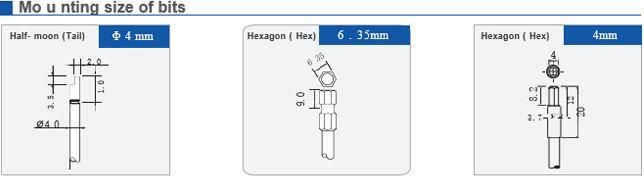

Applicable batch head |
Adapted outer diameter of screw(mm) | ||
| kgf.cm | N.m | lbf.in | |||||||
| MD2120 | ACT-M00XX HNA-M21XX |
C112X | 0.20～2.35 | 0.02～0.23 | 0.18～2.04 | 5000 | 0.5 | Tail | 1.0～2.0 |
| MD2121 | Hex(6.35mm) | ||||||||
| MD2350 | ACT-M01XX HNA-M23XX |
1.52～9.18 | 0.15～0.90 | 1.33～7.97 | 1200 | 0.7 | Tail | 2.0～3.0 | |
| MD2351 | Hex(6.35mm) | ||||||||
| MD2460 | ACT-M02XX HNA-M24XX |
2.00～12.23 | 0.20～1.20 | 1.77～10.62 | 1000 | 0.7 | Tail | 2.0～4.0 | |
| MD2461 | Hex(6.35mm) | ||||||||
| MD5151 | ACT-M10XX | C212X | 2.04～9.18 | 0.20～0.90 | 1.77～7.97 | 5000 | 1.0 | Hex(6.35mm) | 1.8～3.0 |
| MD5152 | Hex(4mm) | ||||||||
| MD5381 | ACT-M11XX | 8.16～30.60 | 0.80～3.00 | 7.08～26.55 | 1200 | 1.3 | Hex(6.35mm) | 2.5～5.0 | |
| MD5382 | Hex(4mm) | ||||||||
| MD5601 | ACT-M14XX | 10.20～66.28 | 1.00～6.50 | 8.85～70.80 | 600 | 1.5 | Hex(6.35mm) | 4.0～6.0 | |
| MD6161 | ACT-M20XX | 3.06～13.26 | 0.30～1.30 | 2.66～11.50 | 5000 | 1.1 | Hex(6.35mm) | 2.0～4.0 | |
| MD6162 | Hex(4mm) | ||||||||
| ACT-M21XX | 10.20～45.90 | 1.00～4.50 | 8.85～39.83 | 1200 | 1.4 | Hex(6.35mm) | 3.0～6.0 | ||
| MD6392 | Hex(4mm) | ||||||||
| MD6601 | ACT-M24XX | 40.80～102.00 | 4.00～10.00 | 35.40～88.50 | 600 | 1.7 | Hex(6.35mm) | 4.0～8.0 | |
| MD6701 | ACT-M27XX | 71.30～153.00 | 7.00～15.00 | 61.90～132.00 | 300 | 1.9 | Hex(6.35mm) | 6.0～10.0 | |
