China YAT - M 4 0 0 1 Miniaturization Electric Screwdriver Power Controller 400W for sale

YAT - M 4 0 0 1 Miniaturization Electric Screwdriver Power Controller 400W

Price Negotiable

Price: Negotiable

MOQ: 1

Delivery Time: 1-4 weeks

Brand: AND

Product Description

YAT - M 4 0 0 1 12 task modes suitable for a variety of assembly requirements

XDT Series Controller XDT Series Controller (AC)

Miniaturization design

12 task modes, suitable for a variety of assembly requirements

Up to 8 different torque parameter Settings per task

Drive integration, can provide torque, Angle monitoring and

deceleration tightening and other precision control

Provides IO for process control

Provide RS232 and RS485 communication commonly used in industry

Provides Ethernet interfaces for remote monitoring and control

Provide special upper computer software interface, including curve, data recording function

Convenient and flexible installation, suitable for a variety of applications

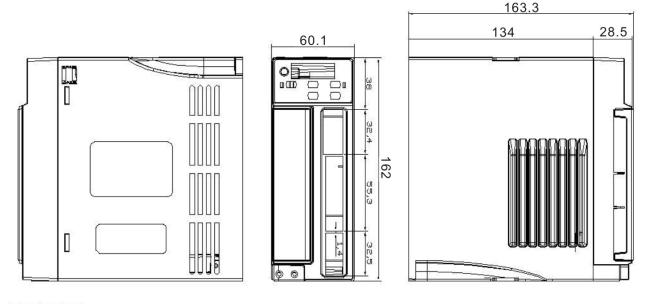

Dimensions(mm)

Specifications

Input voltage 1	1ΦAC200~230V±10% 50/60HZ
No-load consumption【1】	<20W
Output power【2】	100W/150W/200W/400W/750W
Display (Operation interface)	Upper computer
Torque accuracy	±10%
The smallest unit of twist angle display	1degree(1°)
Tightening method	●Torque as priority (angle simultaneous monitoring secondly) ●Angle as priority (torque simultaneous monitoring secondly)
IO channel	8_CH Optocoupler isolated input(20mA/CH,Max) , 7_CH Optocoupler isolatedoutput(20mA/CH,Max)
Communication interface【3】	1,RS232 2,RS485
Recommended use environment	Temperature -10 ° C ~ +60 ° C, humidity <90% RH (no condensation)
Storage environment	Temperature -20 ° C ~ +85 ° C, humidity <90% RH (no condensation)
Weight	About 0.75kg
Dimensions【4】	162(H)x60.1(W)X163.3(T)mm

[1] No-load consumption refers to the power consumption of the controller itself when the screwdriver body is not connected.
[2]The output power refers to the maximum output power of the internal servo drive of the controller, which matches the mounted servo motor.
[3]For the configuration of the communication interface, please refer to the product selection table.
[4]The external dimensions are the maximum appearance of the controller itself when erected and in front of your view.
