50mm Spot Welding Machine 50HZ 60KVA Pressure Welding Machine For Basket

Price Negotiable
Price: Negotiable
MOQ: 1 set
Delivery Time: 5-10 working days. Or negotiation
Brand: Jin Hongxiang
Product Description

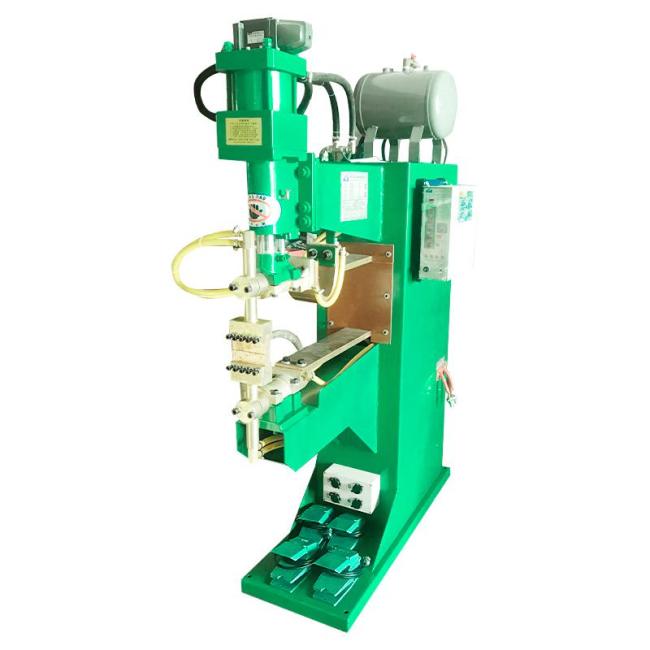

Air pressure row welder for basket welding

Product Description
Performance characteristics
1. Cylinder direct pressure mechanism, good follow-up performance, fast welding speed, combined cylinder, Taiwan AS2410 large flow solenoid valve.Taiwan AS2410 solenoid valve has strong suction and sensitive response. It is ideal for continuous row welding of mesh.
2. All red copper water cooling temperature control device of transformer has the advantages of long service life, low noise, safety and convenient use.

A. Taiwan transformer features: sufficient capacity, greater welding force and stronger conductivity.
B. Water circulation cooling, which can be used within the rated range to ensure 24 hours of operation.
C. Moreover, the temperature control device can work overload and automatically cut off power to protect the whole machine from being affected.

3.The water-saving forced cooling mode is adopted, and the main circuit adopts high-power SCR contactless switch, with high conductivity and low power loss , High temperature automatic protection.

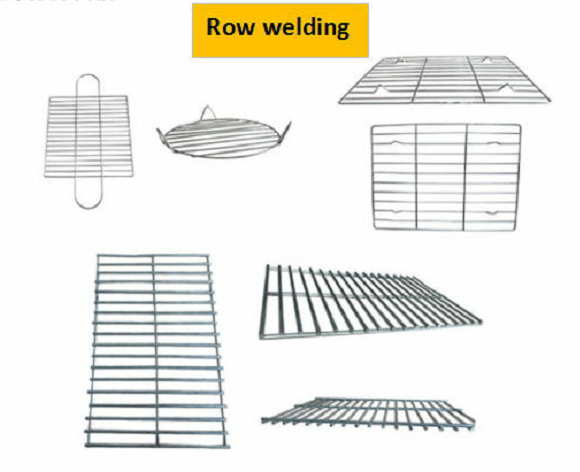

Welding product representative

Technical parameters:
Model Rated power KVA Input voltage V Nominal frequency HZ Maximum short circuit current A arm length mm ectrode travel MM Cooling water volume Weight KG

JD-60 60 380 50/60 22000 600 50 10 350
JD-80 80 380 50/60 28000 600 50 10 400
JD-100 100 380 50/60 30000 600 50 10 430
JD-120 120 380 50/60 32000 600 50 12 460
JD-150 150

380
50/60 34000 600 50 12 500
JDX-35 35

380
50/60 15000 400 50 / 197
JDX-50 50 380 50/60 20000 400 50 / 248

FAQ

Q: What is your normal lead time?

A. If there is stock, our company usually receives the payment for goods and delivers them within a week. If it needs to be customized, the delivery cycle is usually 3-4 weeks after receiving the deposit.

Q: What are your terms of payment?

A: We accept TT.

Q: What kind of packing do you offer?

A. Packaging is usually installed for the export of plywood boxes.

Q: What is the minimum order quantity you can produce?

A. Usually we have them in stock, and the minimum order is 1 set.

Q: How to control product quality?

A. We always attach great importance to product quality. Before leaving the factory, it will be fully aged and debugged. And we always adhere to the principle of "providing customers with better quality, better price and better service.
