Secondary Gravel Crusher Cone 236 TPH granite,Concrete Crushing Equipment Type Symons 4.25FT

Secondary cone crusher Crushing Stone Cone Crusher manufacturers Type Symons 4.25FT, Secondary Gravel Crusher Cone 236 TPH granite,Concrete Crushing Equipment Type Symons 4.25FT

Product Description

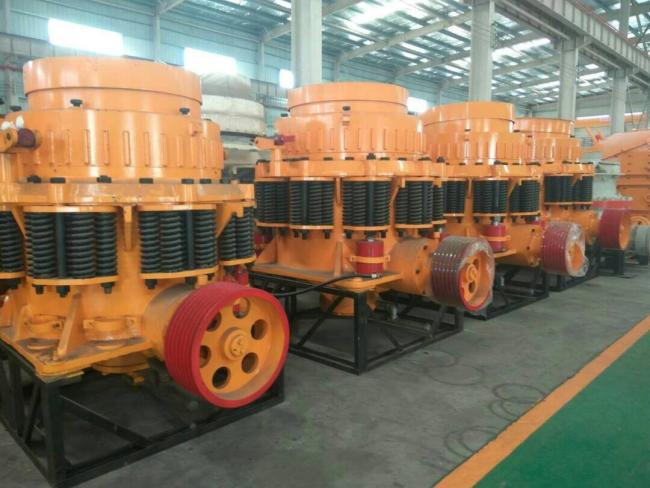

Symons Cone Crusher is suitable for processing gravels, ores, slag and construction waste and used for second, three or four level crushing of stones and slag.

Application
Symons cone crusher are widely applied in metallurgy, construction, road building, chemical and phosphatic industry. It is suitable for hard and mid-hard rocks and ores, such as iron ores, copper ores, limestone, quartz, granite, grit stone, etc... Cavity type of the crushing is decided by the application of the ores. Standard type is applicable to medium crushing, middle type is applicable to fine crushing and short-head type is applicable to super fine crushing.

Working Principle
1. When the Mine barite Symons cone crusher is working, the engine rotates around a fixed point driven by the belt wheel or the coupling.
2. The transmission shaft and the conical part of cone crusher swing under the force from the eccentric bushing, which makes the crushing wall of the Symons cone crusher close to the pierced mortar wall at intervals.
3. Then, the ores will be impacted, squeezed and bent constantly in the crushing chamber.
4. At last, the whole ore crushing process is finished.
5. The perfect combination of high-performance crushing chamber and high crushing frequency improves the handling ability of cone crusher to a greater degree.

Working Principle

Features

Symons cone crusher features :
1. Cubic-shaped end products;
2. Adjustable end products sizes, simple crushing process;
3. The board hammer is made of high chrome, abrasion-resistant, and with powerful impacting force;
4. Non-key connected, easy to maintain, cost-saving;
5. Sound construction and high efficiency.

Specification



Symons cone crusher technology specfications:

Type	Model	Cavity Type	Diameter of cone (mm)	Adjusting Range of Discharge Opening (mm)	Recommend feeding size when the minimum output size (mm)	Max feed size (mm)	Capacity (t/h)	Main Motor Power (kw)	Weight (kg)	Overall Dimension (L×W×H) (mm)
2’FT	PSGB- 0607	Standard fine	600	6-38	70	60	16-50	22	4500	2195×1158×1651
	PSGB- 0609	Standard medium		10-38	95	80	18-65
	PSGB- 0611	Standard coarse		13-38	110	90	22-70
	PSGD- 0603	Short head fine		3-13	35	30	9-35
	PSGD- 0605	Short head coarse		5-16	50	40	22-70
3’FT	PSGB- 0910	Standard fine	900	9-22	102	85	45-91	75	9980	2656×1636×2241
	PSGB- 0917	Standard coarse		13-38	175	150	59-163
	PSGB- 0918	Standard super coarse		25-38	178	150	118-163
	PSGD-0904	Short head fine		3-13	41	35	27-90		10530
	PSGD-0906	Short head medium		3-16	76	65	27-100
	PSGD-0907	Short head coarse		6-19	102	85	59-129
4.25’FT	PSGB- 1313	Standard fine	1295	13-31	137	115	109-181	160	22460	2983×1866×3156
	PSGB- 1321	Standard medium		16-38	210	178	132-253
	PSGB- 1324	Standard coarse		19-51	241	205	172-349
	PSGB- 1325	Standard super coarse		25-51	259	220	236-358
	PSGD-1306	Short head fine		3-16	64	54	36-163		22590
	PSGD-1308	Short head medium		6-16	89	76	82-163
	PSGD-1310	Short head coarse		8-25	105	89	109-227
	PSGD-1313	Short head super coarse		16-25	133	113	209-236
5.5’FT	PSGB- 1620	Standard fine	1676	16-38	209	178	181-327	220	43270	3941×2954×3771
	PSGB- 1624	Standard medium		22-51	241	205	258-417
	PSGB- 1626	Standard coarse		25-64	269	228	299-635
	PSGB- 1636	Standard super coarse		38-64	368	313	431-630
	PSGD-1607	Short head fine		5-13	70	60	90-209		43870
	PSGD-1608	Short head medium		6-19	89	76	136-281
	PSGD-1613	short head coarse		10-25	133	113	190-336
	PSGD-1614	Short head super coarse		13-25	133	113	253-336
7’FT	PSGB- 2127	Standard fine	2134	19-38	278	236	544-1034	400	86730	4613×3302×4638
	PSGB- 2133	Standard medium		25-51	334	284	862-1424
	PSGB- 2136	Standard coarse		31-64	369	314	1125-1814
	PSGB- 2146	Standard super coarse		38-64	460	391	1252-1941
	PSGD-2110	Short head fine		5-16	105	89	218-463		89500
	PSGD-2113	Short head medium		10-19	133	113	404-580
	PSGD-2117	Short head coarse		13-25	178	151	517-680
	PSGD-2120	Short head super coarse		16-25	203	172	580-744

Questions & Answers
1. How long is the delivery time of your product?
The delivery time is within 20 working days.

2. What is the payment term?
The payment term is T/T.

3.How long is the product warranty period?
Our warranty period is 1 year, excluding wearing parts.

4.What's the after sale service of your company?
We will provide foundation drawing to the clients for installation. Besides, we can provide guidance service for installation and operation of workers, etc.

5. Can your company provide wearing parts?
We can deliver you the spare parts within 10 working days after your order. If your equipment are not manufactured by our company, please provide us the wearing parts drawing or number.
