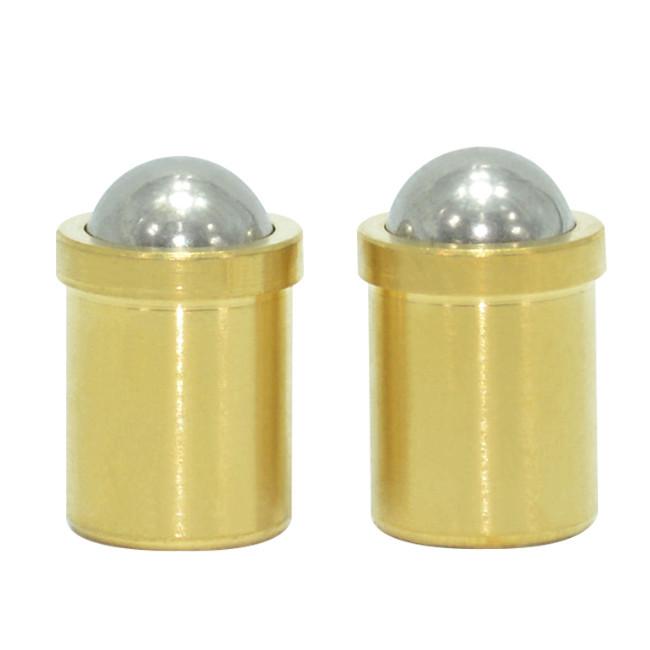

Brass Push Fit Spring Ball Plunger With Locking Mechanism
Brass Push-Fit Spring Ball Plunger With Locking Mechanism
Spring Plunger with collar and ball / body from brass, ball from stainless steel, is used for positioning, indexing, locking, latching as well as for other similar pressure applications.
It can be used for locating or for applying pressure, as a detent or for ejection.
Spring loaded force could be made according to customer's requirement.
| Model | Body | Ball | |
| Material | Material | Hardness | |
| HD101-4 | Brass | SUS440C | 55HRC~ |

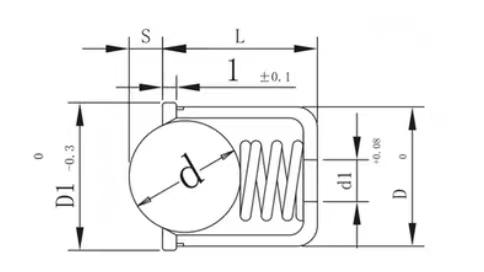

| D | D1 | L | S | d | d1 | Eelastic(N) | |
| MIN | MAX | ||||||
| 3 | 3.6 | 4 | 0.6 | 2 | 1 | 0.74 | 0.98 |
| 4 | 4.6 | 5 | 0.8 | 3 | 1.5 | 0.65 | 5.6 |
| 4L | 6.5 | 3.1 | 8.7 | ||||
| 5 | 5.6 | 6 | 1 | 4 | 2 | 2.8 | 6.3 |
| 5L | 8 | 5.1 | 13.5 | ||||
| 6 | 6.6 | 7 | 1.6 | 5 | 2.5 | 3 | 10 |
| 6L | 9 | 5.3 | 16.5 | ||||
| 8 | 8.6 | 9 | 1.9 | 6.35 | 3 | 6.5 | 11.7 |
| 8L | 12 | 8 | 28 | ||||
| 10 | 10.6 | 11.5 | 2.4 | 8 | 9 | 15 | |
| 10L | 14.5 | 13.5 | 30.5 | ||||
| 12 | 12.6 | 16 | 3.5 | 10 | 13 | 60 | |
1.May I have some samples for checking before ordering?
Sure,We provide free samples for you to check quality,Mix sample are acceptable,but freight collect or prepaid.
2.Are your products good quality?
Yes,Our products are refined polished,hanging plating ,lacquer covering after plating.carefully quality control,carefully packing.
3.How long is your delivery time?
Generally it is 7-10 if the goods are in stock. Or it is 10-15days if the goods are not in stock.it is according to your quantity.
4.How to ship to us if the products ready?
For large quantities,We suggest use the ocean shipping,which is the most cheap way for large order. For small quantities,We suggest go with Fedex,DHL,TNT or some other carriers.
