Chromium Plating Adjustable Toggle Latch Heavy Duty Latch Toggle Clamp ISO

The adjustable toggle latch (draw latch) is generally adjusted by the threads of two threaded rods, one is a Y-shaped threaded rod, and the other is a U-shaped threaded rod.

By adjusting the length of the threaded rod to adjust the tightening force, the threaded adjustable buckle is generally made of two materials, one is the cold-rolled plate material. The other material is stainless steel, which is formed by stamping stainless steel plates.

DK057-G1	DK057-G2

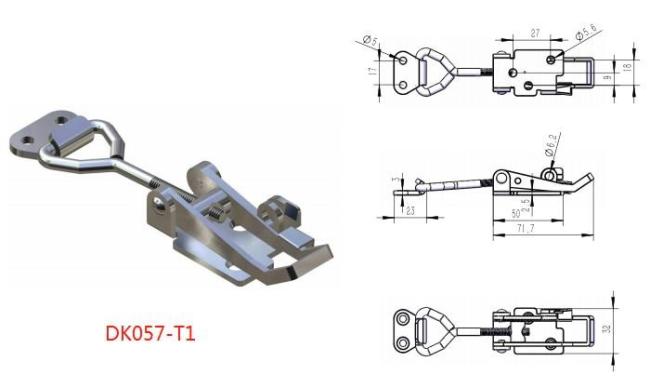

DK057-T1	DK057-T2

The DK057 Series is a Y shaped threaded rod.The entire series includes the following models:

DK057-G1,DK057-G2

DK057-T1,DK057-T2,

DK057-W1,DK057-W2,

DK057-W5,DK057-W6.

1. The quality inspection of raw materials includes indicators such as steel plate hardness;
2. Regular data detection of products, such as length, width, height and weight;
3. Product bearing capacity test;
4. Salt spray test to test the corrosion resistance of products.

304 stainless steel  toggle latch contain 18% chromium and 8% nickel, while 316 grade stainless steel buckles are made from a material containing 16% chromium, 11% nickel and 2.5% molybdenum for significantly improved corrosion resistance.

Adjustable toggle latches are more suitable for use on vibrating equipment, because we know that the equipment will inevitably vibrate during the working process, and some special equipment will vibrate a lot during engineering. After a long time, the toggle latches on the above The toggle latch lock may be loose, and the degree of buckling cannot meet the requirements. If we use an adjustable toggle latch lock, then we can adjust the adjustable toggle latch to achieve the effect of tightening at the initial installation.
