Cold Rolled Galvanized Adjustable Toggle Latches SS201 Installation Depth

The adjustable toggle latch (draw latch) is generally adjusted by the threads of two threaded rods, one is a Y-shaped threaded rod, and the other is a U-shaped threaded rod.

By adjusting the length of the threaded rod to adjust the tightening force, the threaded adjustable buckle is generally made of two materials, one is the cold-rolled plate material. The other material is stainless steel, which is formed by stamping stainless steel plates.

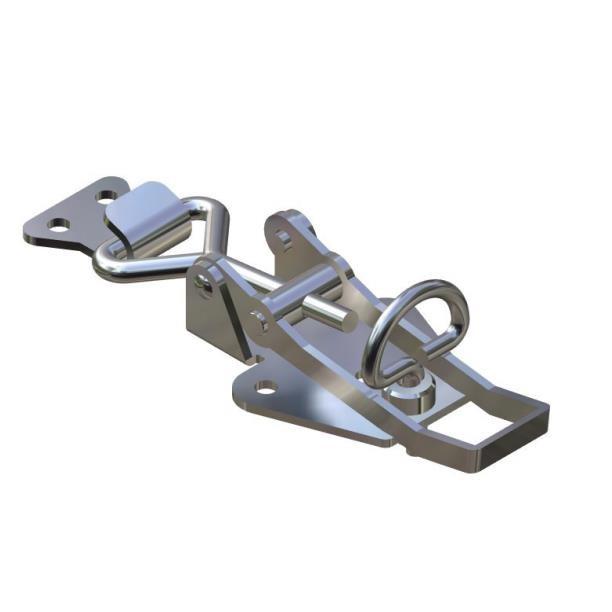

The toggle latch (draw latch) is generally composed of two parts, the toggle latch body and the hook (safety catch) piece. The function of the hook piece is to enable the hook on the toggle latch body to hook it, so as to connect the two parts that are not related, so as to achieve the fixing and connecting function of the hasp itself.

There are two installation methods for the toggle latch: screw installation and welding installation.Note that when opening holes on the device, you need to pay attention to the size interval of the openings, because the toggle latch body and the hook two separate parts. If the size control is not good, it may not be in place when buckled.

1. The quality inspection of raw materials includes indicators such as steel plate hardness;
2. Regular data detection of products, such as length, width, height and weight;
3. Product bearing capacity test;
4. Salt spray test to test the corrosion resistance of products.
