For Suzui Swift ZX32s 2011+ Air Suspension Strut Air Adjustable Shock Absorbers
For Suzui Swift ZX32s 2011+ air strut kit air suspension/air spring/air adjustable shock absorbers
MODEL FITMENT
--- Suzui Swift ZX32s 2011+
| PART NO. | MODEL | CODE | YEAR | ★ |
| SZ01-01-A1 | Liana | RA/B21S/C/D51S | 01~07 | |
| SZ02-01-A1 | Solio | 98~10 | ||
| SZ02-01-B1 | Wagon R Solio | 99~08 | ||
| SZ02-02-A1 | Solio | MA15S | 10~15 | |
| SZ02-03-A1 | Solio | 15~20 | ||
| SZ03-02-A1 | Swift | RS | 04~10 | |
| SZ03-02-B1 | Swift(Rr Integrated) | RS | 04~10 | |
| SZ03-03-A1 | Swift | AZG | 10~17 | |
| SZ03-04-A1 | Swift | A2L | 17~ | |
| SZ04-01-A1 | SX4 | YA11S/YA41S/YB11S/YB41S/YC11S | 06~14 | |
| SZ04-02-A1 | SX4 S-Cross | 13~ | ||
| SZ05-01-A1 | Landy(Chinese) | 07~ | ||
| SZ06-03-A1 | Grand Vitara | 05~ | ||
| SZ06-04-A1 | Vitara | 15~ | ||
| SZ07-01-A1 | Baleno | 16~ | ||
| SZ08-07-A1 | Alto | 08~13 | ||
| SZ08-08-A1 | Alto | GF | 14~ | |
| SZ09-04-A1 | Jimny(Height -0 ~ -50mm) | JB64W/JB74W | 18~ | ★ |
| SZ09-04-A2 | Jimny(Height -20 ~ +40mm) | JB64W/JB74W | 18~ | ★ |

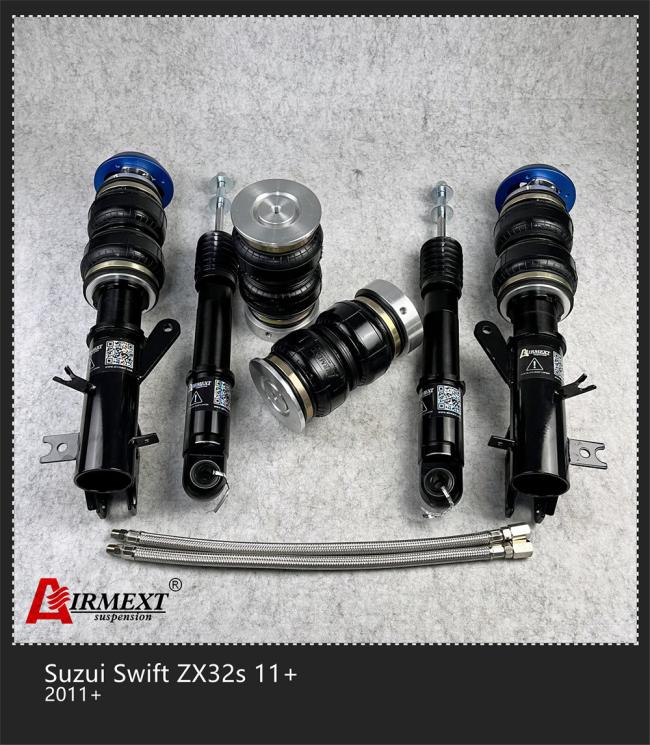

1.This air strut pack including:
-------4 * AIRMEXT air strut ( front shocks 2pcs and rear shocks 2pcs )
-------2 * spacers + bolts
-------4 * 1/8NPT air fittings
-------4 * dampers
-------2 *spanners (wrenches)
-------2 * sway bar (optional if needed)
-------2 * Pillow ball camber plate (optional and extra charged,pls contact with on-line service)
| Model: | For Suzui Swift ZX32s 2011+ |
| Brand | AIRMEXT |
| Material: | Rubber+Steel |
| Condition: | Brand-New |
| Payment: | TT.paypal.Western Union |
| Delivery: | 5-10 working days |
| Package: | Neutral Packing or As Requirement |
2. Features:
----- 32 - level adjustable damping
This allows you to dial further into the air suspension. The damping can be set to softer (counterclockwise) or harder (clockwise) simply by inserting the corresponding damping knob and turning it in either direction.
-----Thread and adjustable vibration holder
Adding further adjustment to your riding height in any PSI setting you choose is the ability to have an adjustable mount, just like the coil kit. This has the advantage of getting a perfect driving height at any PSI.
----- 125mm drop (front and back)
Front and rear air struts, 125 mm drop (stroke), lift your body randomly, with AIRMEXT G5 air management, 3 level memory height adjustment.
----- High pressure double bellows progressive speed spring
Engineered and designed to match your vehicle, slim double bellows type bags are available depending on your car's OEM suspension type. The air pressure corresponds directly to the hardness of your car. Higher PSI = harder ride. Low Err PSI = Softer ride. Every car is different and it may take some time to dial to your preferred Settings.
---- High performance AIRMEXT shock absorber
Each air strut kit has the same mass of impact, which is standard for our coil system. The air-rod shock absorber has different internal valve Settings to accommodate PSI variations.
-----12 months limited warranty
Our warranty is 12 months from the initial purchase date, including manufacturer defects
