Metal Film Resistors,High Precision Resistors

Structure

Rated power :1/8W-3W

Resistance Value :0.1Ω - 22MΩ

Tolerance:±0.1%,±0.25%,±0.5%,±1%

Features

1.Metal film resistors are made by depositing special treated metal film onto ceramic core in ultra high vacuum.Both ends of the core are plated with precious metal to ensure low noise and small temperature coefficient.

2.Film the metal in Vacuum,the surface coating is green(blue resin with the good waterproof.

3.Low noise,resistance to high temperature,low temperature coefficient,high overload power,and good high frequency performance.

4.Power: 1/8W,1/6W,1/4Ws,1/4W,1/2Ws,1/2W,1Ws,1W,2Ws,2W,3Ws,3Ws,5Ws

5.Delivery:5-7days.

6.Conforms to the ROHS standard and the LEAD-FREE non-lead standard.

Applications

Widely applied in high fidelity stereo,electronic calculators,computers,testing instruments,meters,autocontrolled equipment,military devices and aerospace equipment.

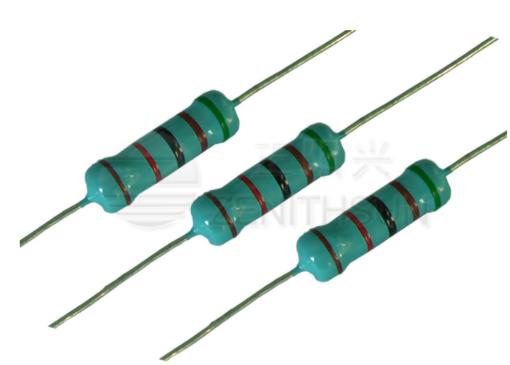

Image :
