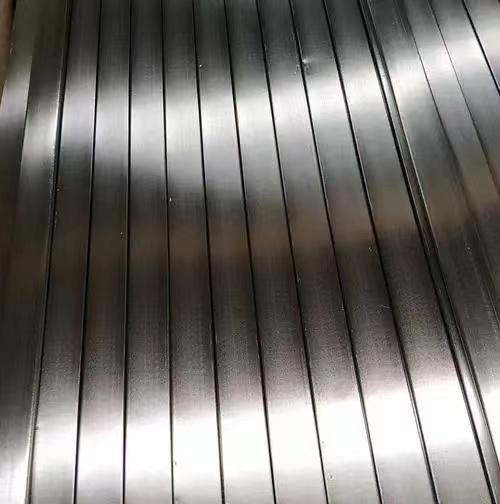

Mill Slit Edge Stainless Steel Flat Bar 201 304 316l 904l 1mm-800mm
Hot Selling Stainless Steel Flat Bar 201 304 316l 904l 1mm~800mm
Products Description:
Stainless steel flat steel used in the construction of Bridges, frames, fences, transmission ships, vehicles and so on. The raw billet of stainless steel flat steel is low carbon square billet, and the finished stainless steel flat steel is delivered in hot rolled form, cold rolled or hot rolled state.
The surface quality of stainless steel flat steel is stipulated in the standard, and the general requirements shall not exist harmful defects in use, such as layering, scarring, cracks and so on. The allowable range of geometric shape deviation is also stipulated in the standard, which generally includes bending degree, side width, side thickness, vertex Angle, theoretical weight and other items, and stipulates that there is a significant twist.
| Standard | ASTM A554, A312, A249, A269 and A270 | |||||
| Material Grade | 304,316,201,202, 316L,430 | |||||
| Size Range | 3x20-20x200mm | |||||
| Length | 6m or as customers' request | |||||
|
Tolerance |
a) width: +/-0. 15mm | |||||
| b) Thickness: +/- 0.02mm | ||||||
| c) Length:+/-4. 5mm - 0mm | ||||||
| Surface |
180G, 320G, 400G Satin / Hairline(Matt Finish, Brush, Dull Finish) 400G, 500G, 600G or 800G Mirror finish |
|||||
| Test | Squash test, Extended test, Water pressure test, Crystal rot test, Heat treatment, NDT | |||||
|
Chemical Composition of Material |
Composition
Material |
201 | 202 | 304 | 316 | 430 |
| C | ≤0.15 | ≤0.15 | ≤0.08 | ≤0.08 | ≤0.12 | |
| Si | ≤1.00 | ≤1.00 | ≤1.00 | ≤1.00 | ≤1.00 | |
| Mn | 5.5-7.5 | 7.5-10 | ≤2.00 | ≤2.00 | ≤1.00 | |
| P | ≤0.06 | ≤0.06 | ≤0.045 | ≤0.045 | ≤0.040 | |
| S | ≤0.03 | ≤0.03 | ≤0.030 | ≤0.030 | ≤0.030 | |
| Cr | 16-18 | 17-19 | 18-20 | 16-18 | 16-18 | |
| Ni | 3.5-5.5 | 4-6 | 8-10.5 | 10-14 | ||
| Mo | 2.0-3.0 | |||||
|
Mechanical Property |
Material Item | 201 | 202 | 304 | 316 | |
| Tensile Strength | ≥535 | ≥520 | ≥520 | ≥520 | ||
| Yield Strength | ≥245 | ≥205 | ≥205 | ≥205 | ||
| Extension | ≥30% | ≥30% | ≥35% | ≥35% | ||
| Hardness (HV) | <253 | <253 | <200 | <200 | ||
Products Details:
About us:
Q1. Can I have a sample order for stainless steel sheet plate products?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A:Sample needs 3-5 days;
Q3. Do you have any MOQ limit for stainless steel sheet plate products order?
A: Low MOQ, 1pcs for sample checking is available
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional. For mass products, ship freight is prefered.
Q5. Is it OK to print my logo on products?
A: Yes. OEM and ODM are available for us.
Q6: How to ensure the quality?
A:Mill Test Certificate is supplied with shipment. If needed, a Third Party Inspection is acceptable
