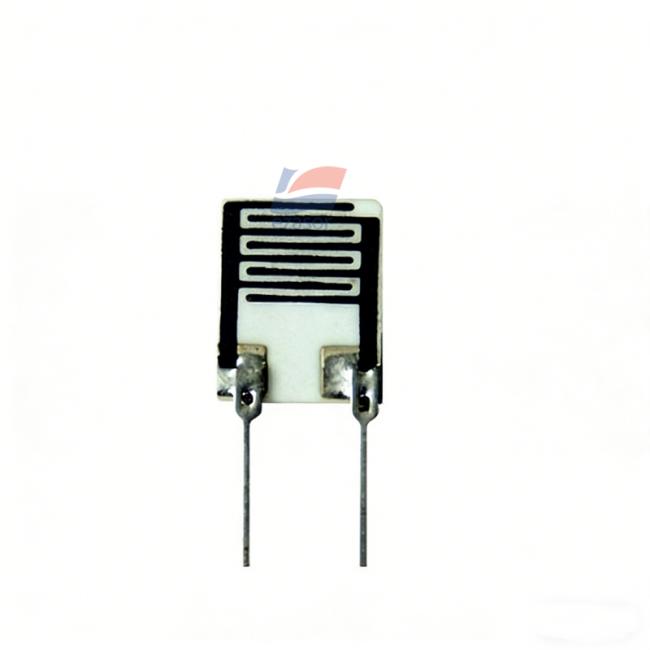

MS-Z302 Humidity Sensor Wide Humidity Range Short Response Time
MS-Z302 Humidity Sensor Wide Humidity Range Short Response Time
Features
Wide Humidity Range: Capable of detecting humidity within a broad range from 10% to 90% RH, making it suitable for various environments.
Short Response Time: With a quick response, it can detect humidity changes promptly, with a moisture absorption time of ≤20s and a dehumidification time of ≤30s.
Small Hysteresis: The hysteresis is only ±1%RH, ensuring more accurate and consistent humidity measurements.
Simple Manufacturing: Its manufacturing process is straightforward, which also contributes to its low cost.
Easy Integration: Designed to be easily integrated into different systems and devices.
Low Cost: Offers an economical solution without sacrificing performance.
Specification:
|
Detection Range
|
10-90%RH(@ 0-60℃) |
| Rated Voltage | 1.5V AC(MAX,Sine Wave) |
| Rated Power | 0.2mW(MAX,Sine Wave) |
| Working Frequency | 500Hz～2kHz |
| Characteristic Impedance & Range | 31 (20～45) KΩ (60%RH, 25℃) |
| Temperature Characteristic | ≤0.5%RH/℃ |
| Hysteresis | ±1%RH |
