Product Introduction:
We specialize in the production of XJ type cold and hot automatic feeding rubber extruders and XJL type rubber strainer series to meet your various needs!
Our products include various extruders such as XWJ Φ30 to Φ150, and XJL Φ120 and Φ150 rubber strainers. These equipments have simple and reliable structures, stable mechanical properties, beautiful appearance and durability, and are very suitable for processing various rubber products such as wires, cables, rubber tubes, and sealing strips.
It is particularly worth mentioning that our extruders are equipped with automatic feeding devices, which effectively solve the problems of slow feeding, uneven discharging, and unsafe operation caused by too soft rubber (such as butyl rubber, silicone rubber, etc.), greatly improving work efficiency.
Whether it is wires, cables, rubber tubes, rubber strips, rubber rollers or films, our equipment can easily cope with it and is your ideal choice of rubber machinery!
Technical Parameters:
| Model | XJ-75 | XJ-65 | XJ-90 | XJ-120 |
|---|---|---|---|---|
| Screw Diameter (mm) | 65 | 90 | 120 | 75 |
| Length-Diameter Ratio | 14:1 | 14:1 | 14:1 | 14:1 |
| Motor Power (kw) | 22 | 30 | 37 | 75 |
| Screw Rotation Speed (r/min) | 10-70 | 10-70 | 10-70 | 10-70 |
| Output (kg/h) | 60-100 | 80-160 | 150-240 | 220-400 |
| Overall Dimensions (m) | 2.3×1×1.8 | 2.5×0×1.8 | 2.3×1.1×1.7 | 3.4×2.3×1.8 |
| Weight (kg) | 1300 | 1500 | 2000 | 3500 |
Why book with us?

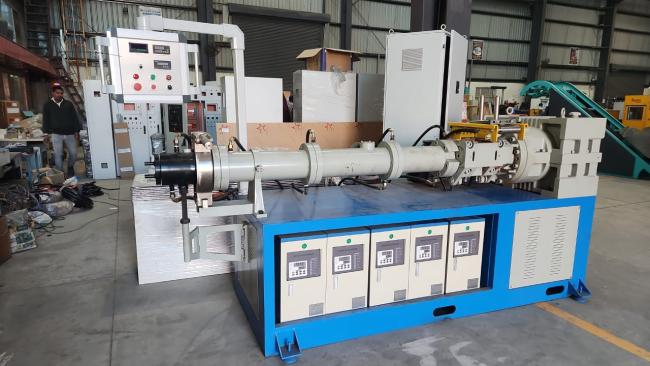

A CE Certified Rubber Cold Feed Extruder with an hourly capacity of 200 kg/hour is a high-performance machine designed for processing rubber compounds in various industrial applications, such as tire manufacturing, rubber profiles, hoses, cables, and other extruded rubber products.
Key Features of the CE Certified Rubber Cold Feed Extruder (200 kg/h):
-
Cold Feed Technology – Unlike traditional hot feed extruders, this machine processes rubber at ambient temperature, improving energy efficiency and product consistency.
-
High Output Capacity – Designed for 200 kg/hour production, suitable for medium to large-scale operations.
-
CE Certification – Complies with European safety and performance standards, ensuring reliability and workplace safety.
-
Precision Extrusion – Equipped with advanced screw and barrel design for uniform mixing and extrusion.
-
Variable Speed Control – Adjustable screw speed to optimize extrusion for different rubber compounds.
-
Temperature Control System – Optional heating/cooling zones to maintain optimal processing conditions.
-
User-Friendly Interface – PLC or touch-screen control panel for easy operation and monitoring.
-
Durable Construction – Robust materials (hardened steel, corrosion-resistant coatings) for long service life.
-
Versatile Applications – Compatible with EPDM, NBR, SBR, NR, silicone, and other rubber compounds.
-
Safety Features – Emergency stop, overload protection, and safety guards as per CE standards.
Typical Applications:
-
Tire treads & sidewalls
-
Rubber seals & gaskets
-

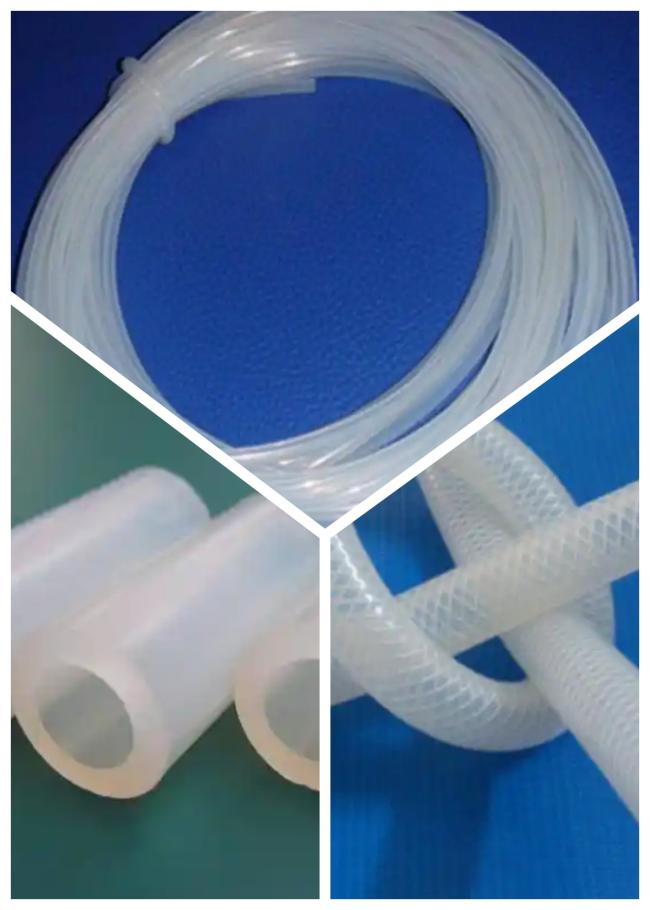

Hoses & tubing
-
Cable jacketing
-
Rubber profiles for automotive & construction
Optional Accessories:
-
Pre-extrusion mixer
-
Die head & cutter systems
-
Laser measuring devices
-
Automatic feeding systems
-
Water cooling or air cooling systems
