Pipe Tank Welding Turning Rolls Motor Power 4Kw Lead-screw Adjusted 20T welding rotator
Pipe Tank Welding Turning Rolls Motor Power 4Kw Lead-screw Adjusted 20T welding rotator
Quick Detail:
- The welding turning rotator is suitable for any cylindrical steel work-piece welding;
- The distance between wheels can be adjustable by it self(self-alignmetnt welding rotator)or by manual(lead-screw adjustment welding rotator or conventional bolt adjustment welding rotator) .
- There are several specifications for customer choice; we also can special design according to customer’s requirements.
Description:
This series welding rotator is the type of lead-screw adjustment ,which is suitable for welding, polishing, assembly for pipe/tank/vessel longitudinal and transverse seam welding.
Welding rotator can be auto adjusted according to the size and weight of cylinder, VFD rotary speed control, improving the reliability of operation.
Our company also can customize welding rotator in all varieties according to client's requirements.
Applications:
It used in many industries such as pressure vessel, boiler, freezing equipment, power station construction, metallurgical, engineering machinery, marine building, and petro-chemical industries etc.
Specifications:
|
Type |
Max loading(T) |
Range of suitable work piece(mm) |
Wheel Diameter(mm) |
roller linear velocity(m/h) |
Power of motor(kw) |
Way of setting |
|
CHGZ--2 |
2 |
Φ150-1800 |
200 |
100-1000 |
2*0.18 |
Variable frequency control
|
|
CHGZ--5 |
5 |
Φ250-2500 |
250 |
2*0.37 |
||
|
CHGZ--10 |
10 |
Φ300-3000 |
300 |
2*0.55 |
||
|
CHGZ--20 |
20 |
Φ400-3500 |
350 |
2*1.1 |
||
|
CHGZ--40 |
40 |
Φ500-4500 |
400 |
2*1.5 |
||
|
CHGZ--60 |
60 |
Φ600-5000 |
450 |
2*1.5 |
Competitive advantage:
1. Main electric elements are Siemens/Schneider.
2. VFD rotary speed control, improving the reliability of operation.
3. Steel and rubber roller or PU roller which can ensure a long time using.
4. With lubrication system.
5. Accept testing before delivery.
6. Accept special design and custom.

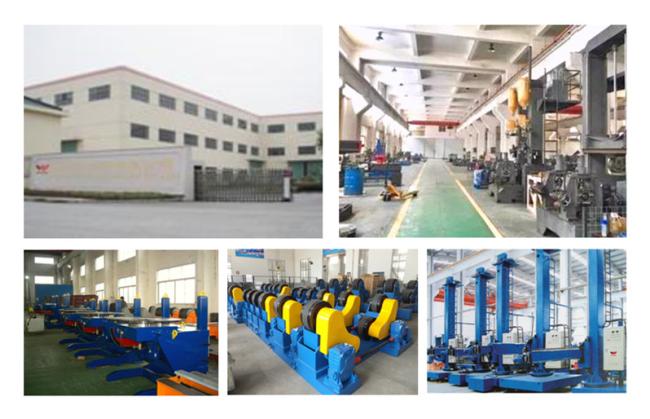

Company Profile:
