diode laser machine 3 waves 2 in1 removal machine laser picosecond laser machine painless
2 in 1 808nm Diode laser
Diode lazer Features
1. with different sizes
2.Applicable for all kinds of skin & hair
3.Permanent hair removal + skin rejuvenation
4.4 wavelength: 532nm+755+808+1064nm
5.8 languages optional
6.5 parts of human body and 5 kinds of skin for option
Diode machine working princeple :
Laser of 3 different wavelengths (755nm, 532nm, 1064nm) combined penetrates epidermis to hair follicle, preferentially absorbed by melanin and converted into heat to directly crush hair roots and nutrients, depriving hair generation ability without damaging surrounding tissues, meanwhile instant strong refrigeration ensures the epidermis won’t be burned, thus achieves a rapid, painless and permanent hair removal.

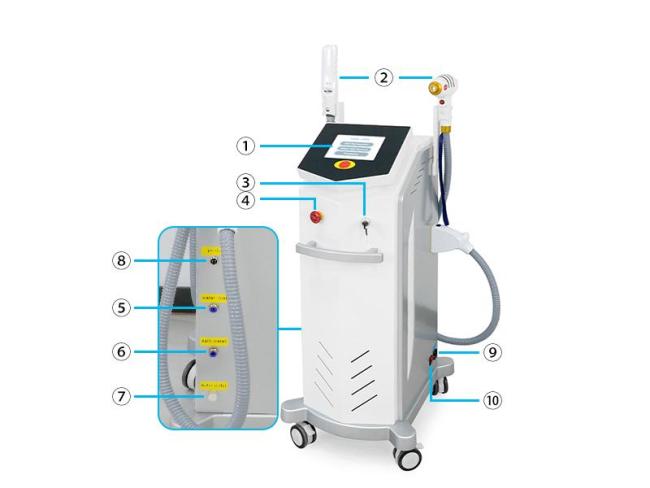

① 8 inch touch screen
② Operation handle
③ Emergency stop switch
④ Key switch
⑤ Water inlet
⑥ Overflow
⑦ Drain
⑧ Pedal interface
⑨ Power connector
⑩ Power switch
Technical Parameters
| Screen size | 8-inch touch screen |
| 808 laser type | Semiconductor diode laser |
| Picosecond laser type | Gem laser |
| Wavelength | 808nm,532nm,755nm,1064nm |
| 808 energy | 1-150J/cm2 |
| 808 pulse delay | 1-100ms |
| 808 pulse duration | 1-400ms |
| 808 spot size | 15*15mm |
| Highest energy in picoseconds | 2500mj/cm² |
| Picosecond pulse width | 600ps |
| Picosecond spot diameter | 1-10mm |
| Working frequency | 1-10Hz |
| Power | 2000W |
| Voltage power | 220V,110V 50Hz 60Hz |
| Cooling System |
Wind-cooled, Water cooling |
Technical parameters Packing list
| Name | Quantity |
| Host | 1 |
| Protective goggles | 1 |
| protective glasses | 1 |
| Switch key | 2 |
| Power cable | 1 |
| Treatment tips | 5 |
| water funnel | 1 |
| Pedal | 1 |
