4M Oven Rotomoulding Water Tank Making Machine Shuttle Type 2 L Arm
Price:
Negotiation
MOQ:
1 set
Delivery Time:
7-30 working days
Brand:
Yisong
Product Description
Water Tank Making Machine Shuttle Type 2 L Arm 4000 Oven
Shuttle style rotational molding machine is placed along a straight line with oven and two mainframes in tis center. Cooling chamber and loading station in both sides. When a beam on one side rotating a model into the oven to get heated, the other beam will stop aside to load or change beams.
In this way, the operation is flexiable for manufacturing comparatively large product. Even for comparatively small product, productivity is high. Besides, equipment is relatively simple and easy to be maintained. At present, this kind of rotational molding machine is broadly used in our country.
Benfan rotomolding machine advantage:
1. It only takes 3mins. from room temperature increase to 250 to 280 degree in oven
2. Arm is made of special alloy material which is good load
3. Full gear transmission, high efficiency
4. Full automatic operation,prognsis equipment trouble in advance and solve it in time.
5. Heavy duty oven and energy saving
1. It only takes 3mins. from room temperature increase to 250 to 280 degree in oven
2. Arm is made of special alloy material which is good load
3. Full gear transmission, high efficiency
4. Full automatic operation,prognsis equipment trouble in advance and solve it in time.
5. Heavy duty oven and energy saving
Specification
| Machine Dimension(m) | Oven Inner Dimension(m) | ||
| Length | Width | Height | |
| 13 | 5.6 | 4 | 2.6*2.6*2.6 |
| 14.7 | 6.1 | 4.5 | 3.1*3.1*3.1 |
| 16.3 | 6.8 | 5 | 3.6*3.6*3.6 |
| 18 | 7.5 | 5.5 | 4.1*4.1*4.1 |
| 20 | 8 | 6 | 4.6*4.6*4.6 |
| 22 | 8.7 | 6.5 | 5.1*5.1*5.1 |

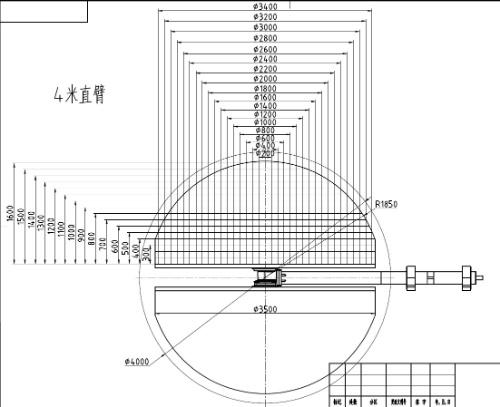

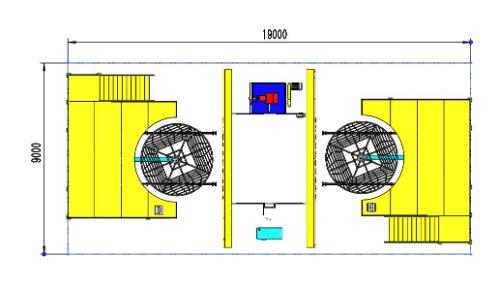

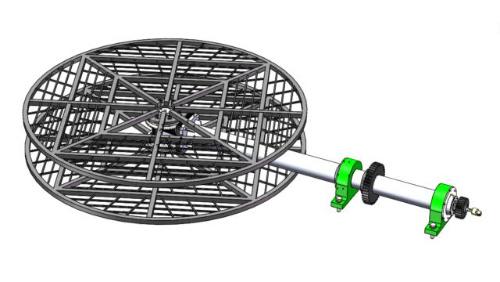

Yisong's 4.0M rotomoulding Shuttle machine, designed for heavy duty working
![Water Tank Making Machine Shuttle Type 2 L Arm 4000 Oven]()
![Water Tank Making Machine Shuttle Type 2 L Arm 4000 Oven]()
![Water Tank Making Machine Shuttle Type 2 L Arm 4000 Oven]()

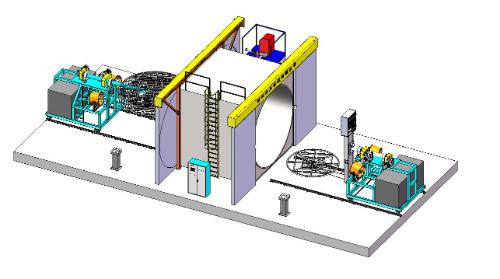

2 carriages can work with:
Straight arm
![Water Tank Making Machine Shuttle Type 2 L Arm 4000 Oven]()
![Water Tank Making Machine Shuttle Type 2 L Arm 4000 Oven]()
Offset L Shape arm
![Water Tank Making Machine Shuttle Type 2 L Arm 4000 Oven]()
![Water Tank Making Machine Shuttle Type 2 L Arm 4000 Oven]()
Operation plateform is suitable for your optional cohice
![Water Tank Making Machine Shuttle Type 2 L Arm 4000 Oven]()
More than 10 years experiences for making this machine
our engineer can avoid any defect in advance.
Circulation heating channel , recycle the heating engary
Our equipment is less power wasting,
hot air blow from lower part and back from upper area
![Water Tank Making Machine Shuttle Type 2 L Arm 4000 Oven]()
Want one machine for using heavy duty,
we will be your best choice.
2 carriages can work with:
Straight arm
Offset L Shape arm
Operation plateform is suitable for your optional cohice
More than 10 years experiences for making this machine
our engineer can avoid any defect in advance.
Circulation heating channel , recycle the heating engary
Our equipment is less power wasting,
hot air blow from lower part and back from upper area
Want one machine for using heavy duty,
we will be your best choice.
