35kg Wheeled ABC Dry Powder Fire Extinguisher Red Cylinder Mexican Type
Wheeled 35kg ABC Dry Powder Fire Mexican Extinguisher Red Cylinder
Mexican standard Dry Powder Fire Extinguisher is special designed and produced to Mexican Standards. Wheeled fire Extinguishers are big capacity fire extinguishers , inside powder good for put out fire in oil or gas station and matched with one big wheel and two small wheels and a long hose and horn hanged beside the cylinder or on the handle,for easy to carry and use.
Products Series Specification:
|
Technical Specification of Trolley Dry Powder Fire Extinguisher (Mexico Style) |
||
|---|---|---|
|
Capacity |
35KG |
50KG |
|
Out-Diameter(mm) |
280 |
320 |
|
Cylinder Height(mm) |
830 |
760 |
|
Volume(L) |
46.5 |
56 |
|
Empty Cylinder Weight(kg) |
24 |
26.5 |
|
Full Weight(kg) |
63 |
81 |
|
Temperature Range |
-20℃~+60℃ |
-20℃~+60℃ |
|
Working pressure(bar) |
16.67BAR |
16.67BAR |
|
Test Pressure(bar) |
33.34 |
33.34 |
|
Burst Pressure(bar) |
66.50 |
66.50 |
|
Material |
SPCC |
SPCC |
Reassemble the Instructions:
1. The fire extinguisher is turned on
2. The pointer of the pressure gauge reaches the red area
3. The fire extinguisher is a high-pressure container, and annual inspection is required

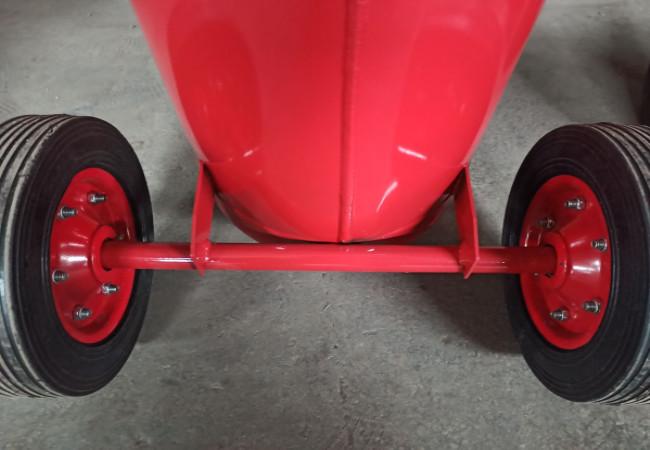

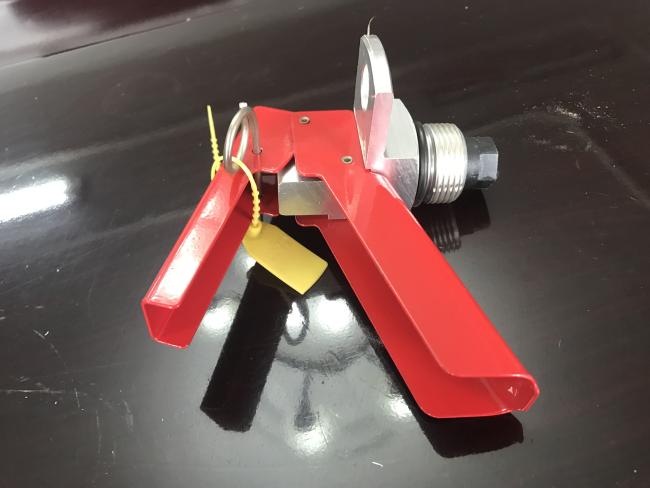

Accessories of Pressure Valve, Gauge, and Wheels
FAQ:
Q 1. What is packing of your products?
Usually, our goods are packed by cartons or we make the package by customer's requirement.
Q 2. What's your payment term?
T/T, L/C at sight,and etc.
Q 3. How about your delivery time?
Generally, it will take around 45days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
