4kg ISO Dry Chemical Powder Fire Extinguisher Red Cylinder Chile Type
4kg Dry Powder Fire Extinguisher Red Cylinder Chile Type Of Dry Chemical Powder
This kind fire extinguisher is satisfied by ISO standard and Chile standard . this extinguisher is produced according to usage of Chile applier. Portable fire system 4kg ABC fire extinguisher is a portable fire extinguishing tool that can be used to extinguish an initial fire and control the spread. Suitable for fighting fires in class A, B, C, & electrical fire. ABC dry chemical powder fire extinguisher is widely used in industrial, commercial and residential environment
Class A fire: Combustible material such as paper, wood
Class B fire: Flammable liquids such as paint, petrol
Class C fire: Flammable gases such as butane, methane
Electrical equipment: Such as computers, generators
Technical Specification:
| Technical Details of Chile Standard Dry Powder Fire Extinguisher | |||||
| Capacity | 1kg | 2kg | 4kg | 6kg | 10kg |
| Out-Diamter(mm) | 90 | 110 | 130 | 150 | 180 |
| Cylinder Height(mm) | 237 | 300 | 415 | 475 | 510 |
| Volume(L) | 1.25 | 2.5 | 4.7 | 7.0 | 11.5 |
| Weight of empty cylinder | 0.62 | 1.0 | 1.83 | 2.63 | 3.7 |
| Full Weight(kg) | 1.7 | 3.3 | 6.3 | 9.0 | 14.7 |
| Temperature Range(℃) | -40℃~+49℃ | -40℃~+49℃ | -40℃~+49℃ | -40℃~+49℃ | -40℃~+49℃ |
| Working pressure(bar) | 13.7BAR | 13.7BAR | 13.7BAR | 13.7BAR | 13.7BAR |
| Test Pressure(bar) | 41.1BAR | 41.1BAR | 41.1BAR | 41.1BAR | 41.1BAR |
| Material | SPCC | SPCC | SPCC | SPCC | SPCC |
Strict Quality Control:
Raw materials and components are inspected before moving on to manufacturing. Welding,coating and other procedures are fully operated to ensure our product’s optimal performance. Advanced machines are used in the process of manufacturing such as a pull up machine, which highly increases its efficiency Precise leakage test, water pressure test and other tests are also done for each product.

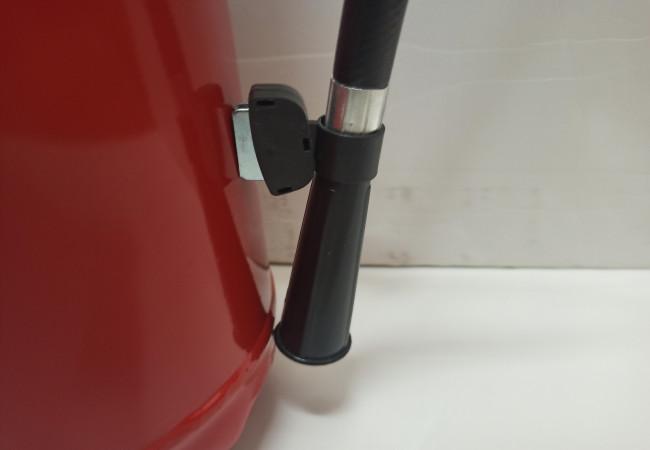

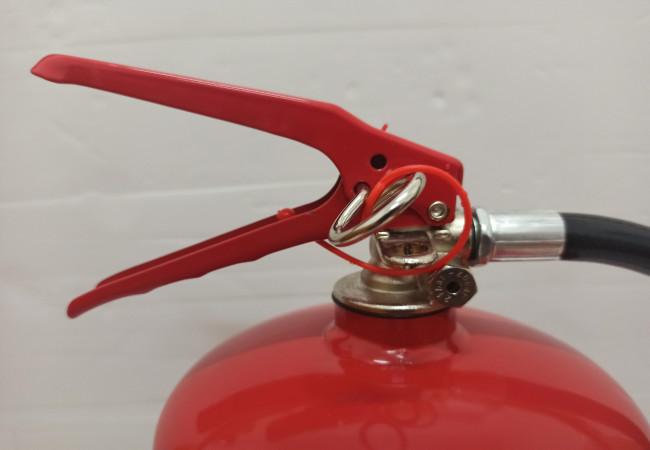

Details of Spare Parts of Valve and Nozzle
