Industrial 6kg ABC Dry Powder Fire Extinguisher Recharge Powder Chile Type
6kg Dry Powder Fire Extinguisher Chile Type Fire Abc Powder
Chile style fire extinguisher is satisfied by ISO standard and Chile standard .
6kg ABC fire extinguisher is a portable fire extinguishing that can be used to put out an initial fire and control the spread. Portable dry powder fire extinguishers will not take up too much space because, lighter, stable quality, it is widely used in homes, factory,school,cars and other areas are the ideal choice. It’s Suitable for fighting fires in class A, B, C, & electrical fire. ABC dry chemical powder fire extinguisher is widely used in industrial, commercial and residential environment.
Technical Specification:
|
Technical Details of Chile Standard Dry Powder Fire Extinguisher |
|||||
|
Capacity |
1kg |
2kg |
4kg |
6kg |
10kg |
|
Out-Diamter(mm) |
90 |
110 |
130 |
150 |
180 |
|
Cylinder Height(mm) |
237 |
300 |
415 |
475 |
510 |
|
Volume(L) |
1.25 |
2.5 |
4.7 |
7.0 |
11.5 |
|
Weight of empty cylinder |
0.62 |
1.0 |
1.83 |
2.63 |
3.7 |
|
Full Weight(kg) |
1.7 |
3.3 |
6.3 |
9.0 |
14.7 |
|
Temperature Range(℃) |
-40℃~+49℃ |
-40℃~+49℃ |
-40℃~+49℃ |
-40℃~+49℃ |
-40℃~+49℃ |
|
Working pressure(bar) |
13.7BAR |
13.7BAR |
13.7BAR |
13.7BAR |
13.7BAR |
|
Test Pressure(bar) |
41.1BAR |
41.1BAR |
41.1BAR |
41.1BAR |
41.1BAR |
|
Material |
SPCC |
SPCC |
SPCC |
SPCC |
SPCC |
Directions:
1. Hold Upright
2. Withdraw Safety Pin
3. Press level Fully Down
4. Point Nozzle At Base of Fire
5. Recharge After Use Even Partial
6. Check Periodically or regular inspection the function

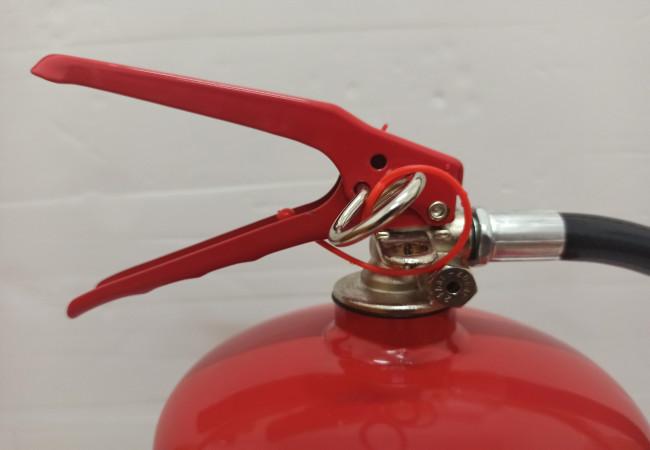

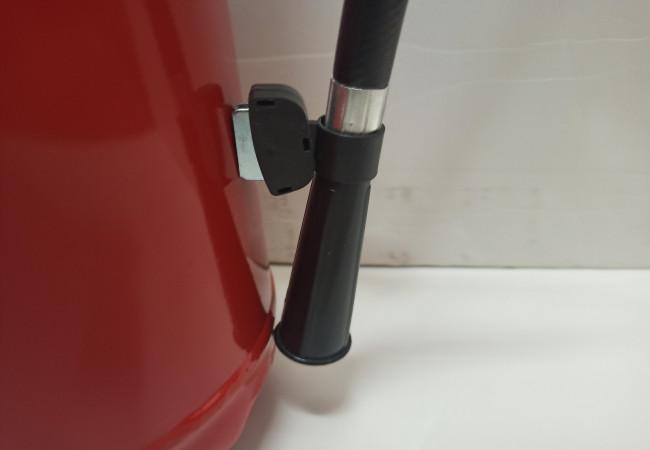

Details of Valve and Horn
