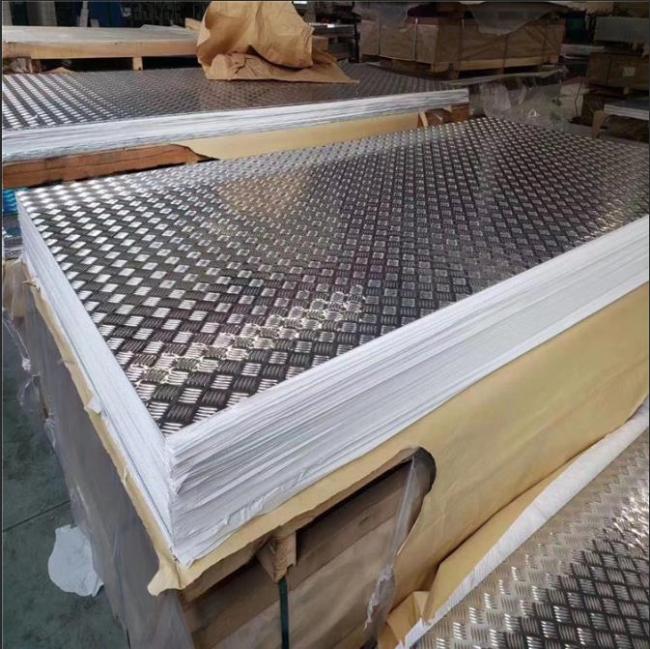

1000 3000 5000 Series Aluminium Checker Plate Sheet 3mm
Checkered Plate Aluminum Sheet Price 1000 3000 5000 Series Aluminum Diamond Sheet/Plate
Product Description
| 1 | Production Standard | ASTM, B209, JIS H4000-2006,GB/T2040-2012,etc |
| 2 | Material | 1000 2000 3000 4000 5000 6000 7000 8000 series |
| 3 | Width | 50mm-2500mm or as the customer's request |
| 4 | Longth | 50mm-8000mm or as the customer's request |
| 5 | Thickness | 0.12mm-260mm |
| 6 | Surface | Coated, Embossed,Brushed, polished, Anodized,etc |
| 7 | OEM service | Perforated, Cutting special size, Doing flatness, Surface treatment,etc |
| 8 | Payterm | Ex-work, FOB, CIF , CFR, etc |
| 9 | Payment | T/T, L/C, Western Union, etc |
| 10 | Delivery Time | Within 3 days for our stock size,15-20days for our production |
| 11 | Package |
Export standard package: bundled wooden box, suit for all kinds of transport, |
| 12 | MOQ | 200kg |
| 13 | Sample | Free and available |
| 14 | Quality | Certificate of Test,JB/T9001C,ISO9001,SGS,TVE |
| 15 | Export To |
Ireland,Singapore,Indonesia,Ukraine,SaudiArabia,Spain,Canada,USA,Brazil, |
| 16 | Application |
Construction filed, Ships building industry, Decoration, |
Product Details
Chemical Composition
| ALUMINUM ALLOY |
Grade | Normal Temper |
Temper | Tensile Strength N/mm² |
Yield Strength N/mm² |
Elongation% | Brinell Hardness HB |
|
| Plate | Bar | |||||||
| 1XXX | 1050 | O,H112,H | O | 78 | 34 | 40 | - | 20 |
| 1060 | O,H112,H | O | 70 | 30 | 43 | - | 19 | |
| Al-Cu (2XXX) |
2019 | O,T3,T4,T6,T8 | T851 | 450 | 350 | 10 | - | - |
| 2024 | O,T4 | T4 | 470 | 325 | 20 | 17 | 120 | |
| Al-Mn (3XXX) |
3003 | O,H112,H | O | 110 | 40 | 30 | 37 | 28 |
| 3004 | O,H112,H | O | 180 | 70 | 20 | 22 | 45 | |
| Al-Si (4XXX) | 4032 | O,T6,T62 | T6 | 380 | 315 | - | 9 | 120 |
| Al-Mg (5XXX) |
5052 | O,H112,H | H34 | 260 | 215 | 10 | 12 | 68 |
| 5083 | O,H112,H | O | 290 | 145 | - | 20 | - | |
| Al-Mg-Si (6XXX) |
6061 | O,T4,T6,T8 | T6 | 310 | 275 | 12 | 15 | 95 |
| 6063 | O,T1,T5,T6,T8 | T5 | 185 | 145 | 12 | - | 60 | |
| Al-Zn-Mg (7XXX) |
7003 | T5 | T5 | 315 | 255 | 15 | - | 85 |
| 7075 | O,T6 | T6 | 570 | 505 | 11 | 9 | 150 | |

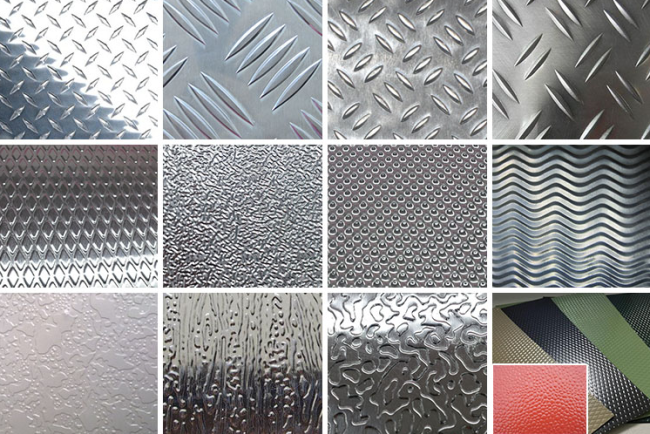

Surface Treatment
Package&Shipping
FAQ
Q: ARE YOU FACTORY OR TRADER?
A: Our company is a cold rolling manufacturer of magnetic stainless steel coil since 2016. We've gained our Export Right and become an integrated company of industry and trade in order to satisfy buyer's multi-request on different material and products.
Q: WHICH MATERIAL/PRODUCTS YOU CAN PROVIDE?
A: Stainless Steel Coils / Strips, Stainless Steel Sheets / Plates, Stainless Steel Circles / Discs, Decorative Stainless Steel Sheets.
Q: HOW TO GET A SAMPLE?
A: FREE samples are available for your checking and testing. And to get free samples, you need to send us you detailed receiving address (including post code) and your DHL/FedEx/UPS account for collecting samples, courier cost will be paid in your side.
Q: HOW TO VISIT YOUR FACTORY?
A: Most of the main cities have flights to Wuxi; you can take flight to Wuxi Shuofang International Airport.
If you come from Shanghai, it will take 2 hours by flight (every day 5 flights).
If you come from Hongkong, it will take 1 hour by flight (every day 1 flight around noon time).
