JIS ASTM AISI Q195 Q215 Q235 Material Galvanized Steel Sheet 0.5mm 1mm 2mm Thickness
JIS ASTM AISI Q195 Q215 Q235 Material Galvanized Steel Sheet 0.5mm 1mm 2mm Thickness
Product Description
Galvanized steel plate is to prevent corrosion on the surface of the steel plate to prolong its service life, coated with a layer of metal zinc on the surface of the steel plate, the zinc coated steel plate is called galvanized plate.
Specification
|
Technical Standard
|
EN10147, EN10142, DIN 17162, JIS G3302, ASTM A653
|
|
Steel Grade |
Dx51D, Dx52D, Dx53D, DX54D, S220GD, S250GD, S280GD, S350GD, S350GD,
S550GD; SGCC, SGHC, SGCH, SGH340, SGH400, SGH440,
SGH490,SGH540, SGCD1, SGCD2, SGCD3, SGC340, SGC340 , SGC490, SGC570; SQ CR22 (230), SQ CR22 (255), SQ CR40 (275), SQ CR50 (340), SQ CR80(550), CQ, FS, DDS, EDDS, SQ CR33 (230), SQ CR37 (255), SQCR40 (275), SQ CR50 (340), SQ CR80 (550); or Customer’s Requirement |
|
Type
|
Coil/Sheet/Plate/Strip
|
|
Thickness
|
0.12-6.00mm,or customer's requirement
|
|
Width
|
600mm-1500mm, according to customer's requirement
|
|
Type of Coating
|
Hot Dipped Galvanized Steel(HDGI)
|
|
Zinc Coating
|
30-275g/m2
|
|
Surface Treatment
|
Passivation(C), Oiling(O), Lacquer sealing(L), Phosphating(P), Untreated(U)
|
|

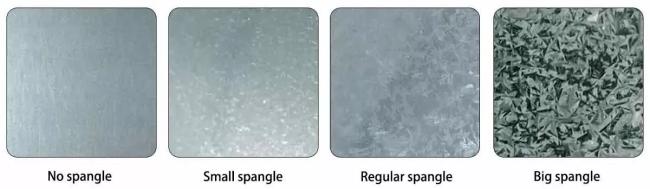

Surface Structure
|
Normal spangle coating(NS), minimized spangle coating(MS), spangle-free(FS)
|
|
Quality
|
Approved by SGS,ISO
|
|
ID
|
508mm/610mm
|
|
Coil Weight
|
3-20 metric ton per coil
|
|
Package
|
Water proof paper is inner packing,galvanized steel or coated steel
sheet is outer packing , side guard plate,then wrapped by
seven steel belt.or according to customer's requirement |
|
Export market
|
Europe, Africa, Central Asia, Southeast Asia, Middle East, South America,
North America, etc
|
Product Details
Surface
Shipping And Packing
FAQ
1. who are we?
We are based in Shanghai, China, start from 2011,sell to Southern Europe(10.00%),Northern Europe(10.00%),Western Europe(10.00%),Mid East(10.00%),Oceania(10.00%),Africa(10.00%),Southeast Asia(10.00%),Eastern Europe(10.00%),South America(10.00%),North America(10.00%). There are total about 11-50 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Stainless steel decorative plate,stainless steel water ripple plate,stainless steel Diamond plate,stainless steel decorative strip,metal decorative products
4. why should you buy from us not from other suppliers?
1. 12 years experience in R and D manufacturing and sales. 2. Strong capacity, technology and Quality Control system in art stainless steel production. 3. Foreign trade sales team with professional service and great reputation in oversea markets.
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,Express Delivery；
Accepted Payment Currency:USD,EUR,CNY;
Accepted Payment Type: T/T,L/C,Western Union;
Language Spoken:English,Chinese
Galvanized steel plate is to prevent corrosion on the surface of the steel plate to prolong its service life, coated with a layer
of metal zinc on the surface of the steel plate, the zinc coated steel plate is called galvanized plate.
