China FTD DC12V Wireless Conference Systems UHF Master Controller With Recorder MP3 Player for sale

FTD DC12V Wireless Conference Systems UHF Master Controller With Recorder MP3 Player

Price Negotiable

Price: $ 420~462

MOQ: 10 pcs

Delivery Time: 7 work days

Brand: FTD

Product Description

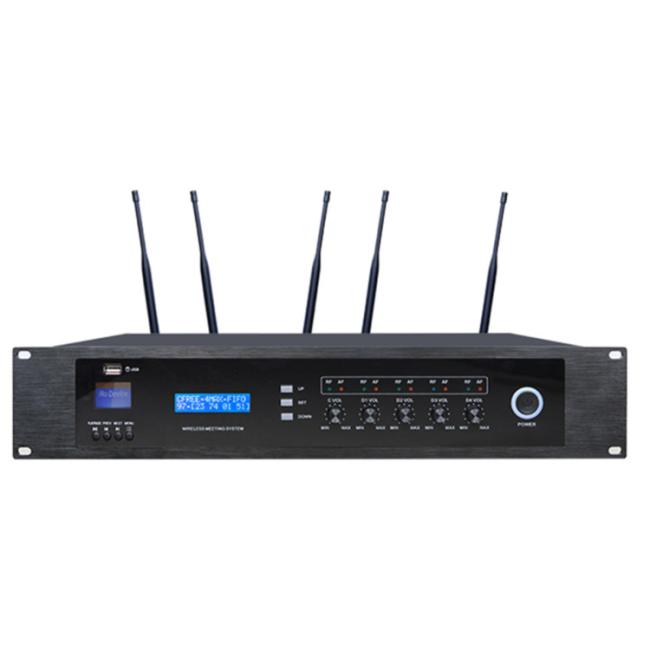

Wireless Conference System UHF Master Controller Built-In Recorder And MP3 Player

Product Description

Product Name	UHF Wireless Conference System Master Controller (With Recording)
Material	Metal
Package	Carton

Product performance description

Wireless Conference System Controller, capacity of 260 units, 5 units could be used simultaneously, first-in first out, chairman mode discussion mode, built-in recorder and MP3 Player.

Features

Simple operation UHF wireless conference system. Minimum cable wiring to save cable layout cost. Minimum cable connection ideal for rental use or portable conference system. Basic discussion conference system or audio conference system. Economy wireless conference system and meeting system. System capacity of 256 delegate units. Chairman unit with priority over delegate units. Chairman unit and delegate unit built-in rechargeable LIPO battery. Several meeting modes: Limit (1/2/3/4), First in first out (1/2/3/4), Chairman Only and free discussion modes. 5 delegate microphones can be turned on at the same time. Microphones can be operated on the built-in rechargeable lithium battery. Battery working time of 16 hours and standby time of 60 hours. Multi-channel high bandwidth and intermediate band frequency selective filtering to avoid any interference. Built-in feedback suppressor to decrease feedback and noise effectively. Built-in noise deletion circuit and TONE-LOCK system to make sure the system has strong anti-jamming function. Operation distance up to 300 meters and coverage up to 4,000 Square meters. Separate volume control for 5 channels on master controller front panel. Separate output level meter for each 5 channels for direct visual monitoring. Optional v auto-track video tracking function. UHF wireless conference system master control is powered by DC12V. Master control With unbalanced 6.3mm jack output and balanced XLR output to sound reinforcement system. Video tracking function need external equipment and cameras.

Specification

Model		WCS-400
Description		UHF Wireless Conference System Master Controller
Audio	Transmission Way	UHF wireless one way transmission by oscillation PLL technology
	Channel Qty	5 channels (one for chairman Mic and four for delegate Mics)
	Frequency Range	740MHz-790MHz @ ±10PPM stability
	Modulation Mode	FM
	Receive Sensitivity	-100dBM
	Output Level	Balanced XLR output: 0-600mV, unbalanced Jack output: 0-300mV
	Frequency Response	60Hz-16KHz
	S N Ratio	>105dB
	THD	<0.5%
	Communication Distance	300 meters
Control	Transmission Way	UHF wireless two way transmission
	Channel Qty	16
	Frequency Range	740MHz-790MHz
	Modulation Mode	FSK
	Receive Sensitivity	-100dBM
	Transmitted Power	+6dBm (adjustable)
	Frequency Deviation	<0.002
	Communication Rate	100KBPS
	Signal Coverage	4,000 Square meters
Mechanical	Power Supply	DC12V-15V, >=1A
	Power Consumption	< 7W
	Operation Temperature	-20ºC to +55ºC
	Dimension	485(W) x 355(D) x 100(H)mm
	Weight	7.2 kg
