POE Powered IP Horn Speaker TCP/IP Network PAVA System Multicast Sound System

Price Negotiable
Price: Negotiable
MOQ: 10
Delivery Time: 10-15 work days
Brand: FTD
Product Description

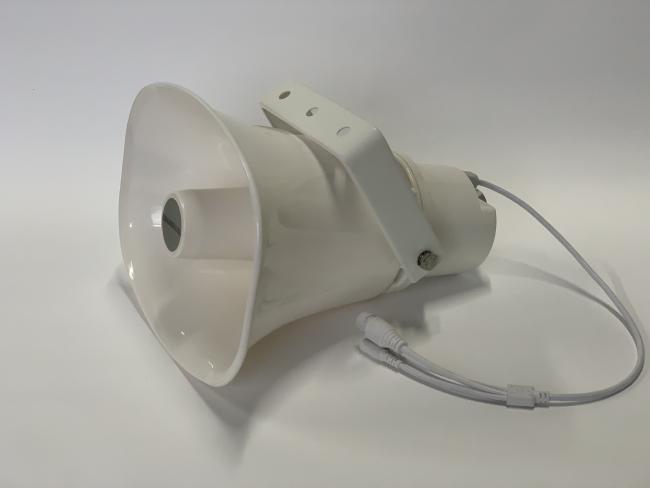

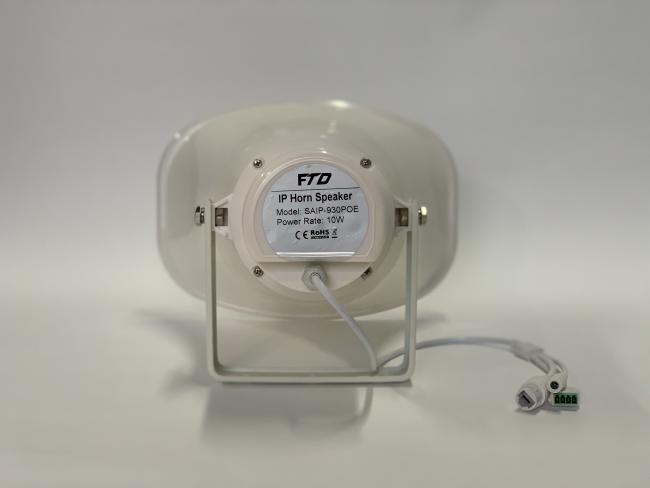

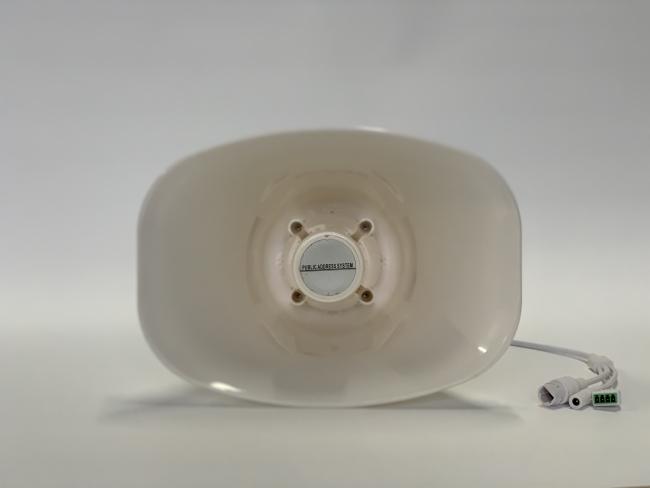

PAVA System TCP/IP Network POE Powered PA Horn Speaker


Product Description



Product Name IP Horn Speaker
Material ABS cabinet, Iron wall mount bracket
Package Carton




Product performance description
The IP POE Powered Horn Speaker is the latest in IP technology. This Power over Ethernet (Compatible with both IEEE 802.3af & IEEE 802.3at) VoIP mass notification device has network-controlled speaker volume, scheduled program broadcast, priority-based multicast streaming, group definition, working status supervision, remote online technical support and trouble shoot. The speaker is capable of broadcasting audio through multicast.




























.



Features

  • POE (Power over Ethernet) supportable all in one network audio system
  • POE IP PA system with background music, paging system and voice alarm system
  • Minimum cable connection over existing LAN/WAN/Internet systemHuge system capacity up to 1,200 zones
  • Support with existing POE switch network system
  • Compatible with both IEEE 802.3af & IEEE 802.3at
  • IP based POE powered 30W Horn speaker
  • Built-in IP module, 30W class-D amplifier and speaker
  • Single network cable for control, signal and power supply
  • Different music or voice message simultaneously broadcasted through different POE speakers
  • Network adjustable speaker volume
  • Closed contact input & Closed contact output for third party integration



Specification




Model

FIP-930POE

Description

IP POE Wall Mount Speaker

Power Output (1KHz@-3dB)

30 Watts

Built-in Amplifier

30W Watts

Speaker Unit

1.5" driver*1

Network I/F

10/100Mbps

Protocol

ARP, TCP/IP, UDP, ICMP & IGMP (Group Broadcast)

Audio Format

MP3/MP2

Audio Quality

16digit stereo CD level

Sampling Rate

8K~48K

Bit Rate

8K~512Kbps

Sensitivity

95dB/1W/1M

S/N Ratio

>=85dB

THD

<=0.1%

Frequency Response

100-18KHz(±3dB)

Connector

One RJ45 port for existing LAN/WAN & internet
One control input, 0V, short circuit contact
One control output, 0V, short circuit contact
One DC12V battery backup input

Power Input

POE 802.3af or POE 802.3at & DC 12V

Operation Temp

-30ºC to +55ºC

Dimension

285x205(H)mm

Bracket

Iron wall mount bracket

Material

ABS cabinet

Weight

2.2kg








Certifications&Exhibition







Company Introduction


Guangzhou FTD Audio Limited is a leading manufacturer of Public Address System and Conference System in China, We are focus on R&D and our Professional R&D team already 15 years' experience on Audio field. FTD audio will offer the professional products and service to each of partner and do a win win business with our partners!







Our Services & Strength



1.One year warranty after sales. if any problem happened under warranty , you can return to us and fix it.

2.Accept OEM and ODM order for our customers.

3. Stable quality with good quality control, quality is our life.

4. 7*24 hours quick response for technology support.

5. Various PA system product for one shop purchase.

6. System solution designed can be offered base on requirement.

7. Reasonable price for a win win business .







Packing&Shipping
