Intermediate Transmission Gear Shaft Teeth Grinding For Gearbox 42CrMo
Price:
$1850.0/Piece
MOQ:
2 Pieces
Delivery Time:
60 Days
Brand:
YIZGEAR
Product Description
Transmission Gears Intermediate Gear Shaft Gear Teeth Grinding For Gearbox
Intermediate Gear shaft is between the input gear / shaft and output gear shaft
Gears and gear shafts are the main component of a gearbox/ gear reducer
- Legnth: 1250mm
- Module: 4
- Gear teeth number: 16
- Material: 42CrMo (Similar to AISI 4140)
- Heat treatment: Induction Hardened
Technical Specifications
| Parameter | Specification |
|---|---|
| Custom Made | Available |
| Gear Profile Type | Gleason |
| Manufacturing Process | Gear Grinding |
| Teeth Grinding | Included |
| Module (M) | 4 |
| Number of Teeth (Z) | 16 |
| Pressure Angle (α) | Custom |
| Lead Angle | Custom |
| Accuracy Grade | ISO 6 Grade |
| Heat Treatment | Carburizing |
| Surface Hardness | 58-62HRC |
Steel Code Grades Comparison
| CHINA/GB | ISO | ГΟСТ | ASTM | JIS | DIN |
|---|---|---|---|---|---|
| 45 | C45E4 | 45 | 1045 | S45C | CK45 |
| 40Cr | 41Cr4 | 40X | 5140 | SCr440 | 41Cr4 |
| 20CrMo | 18CrMo4 | 20ХМ | 4118 | SCM22 | 25CrMo4 |
| 42CrMo | 42CrMo4 | 38XM | 4140 | SCM440 | 42CrMo4 |
| 20CrMnTi | 18XГT | SMK22 | |||
| 20Cr2Ni4 | 20X2H4A | ||||
| 20CrNiMo | 20CrNiMo2 | 20XHM | 8720 | SNCM220 | 21NiCrMo2 |
| 40CrNiMoA | 40XH2MA/40XHMA | 4340 | SNCM439 | 40NiCrMo6/36NiCrMo4 | |
| 20CrNi2Mo | 20NiCrMo7 | 20XH2MA | 4320 | SNCM420 |

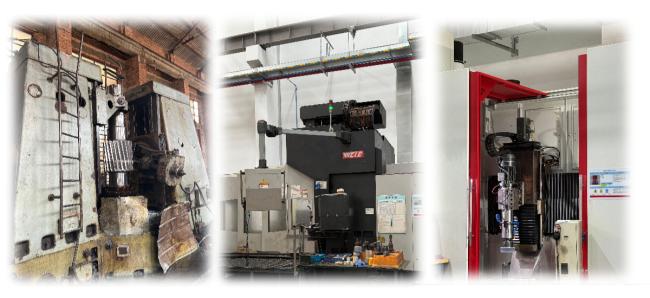

Production Equipment
Manufacturing Process
