Duplex 2205 Hot Rolled Bright Surface Stainless Steel Channel Bar and U Channel
Price:
3.01
MOQ:
30
Delivery Time:
Negotiable
Product Description
Duplex 2205 Stainless Steel Channel Bars & U Channels
High-quality duplex 2205 (1.4462 / S32205) stainless steel channel bars and U channels offering superior corrosion resistance and mechanical strength for demanding industrial applications.
Product Specifications
- Product Types: Stainless Steel Angle Bars & Channel Bars
- Available Grades: 201, 304, 310S, 316L, 321, 2205, and more
- Standards: ASTM, GB, DIN
- Angle Bar Sizes: 30×30×3mm to 200×200×10mm × 6m length
- Channel Bar Sizes: 50×30×3mm to 200×100×10mm × 6m length
- Services: Custom cutting available
- Packaging: Waterproof paper wrapping or wooden pallets
- Brand: TSINGSHAN
Stainless Steel Angle Bar Specifications
Standard Sizes and Weight per Meter
| Size A×B (mm) | 3mm | 4mm | 5mm | 6mm | 7mm | 8mm | 9mm | 10mm |
|---|---|---|---|---|---|---|---|---|
| 20×20 | 0.894 | 1.13 | 1.38 | |||||
| 25×25 | 1.13 | 1.45 | 1.77 | 2.06 | ||||
| 30×30 | 1.37 | 1.77 | 2.17 | 2.53 | ||||
| 35×35 | 1.61 | 2.09 | 2.57 | 3.01 | ||||
| 40×40 | 1.85 | 2.41 | 2.97 | 3.49 | ||||
| 45×45 | 2.12 | 2.76 | 3.40 | 4.00 | ||||
| 50×50 | 2.36 | 3.07 | 3.79 | 4.46 | 5.13 | 5.76 | 6.42 | 7.06 |
| 60×60 | 4.58 | 5.42 | 6.24 | 7.03 | ||||
| 63×63 | 5.03 | 5.95 | 6.84 | 7.71 | 8.60 | 9.48 | ||
| 70×70 | 5.42 | 6.42 | 7.39 | 8.34 | 9.31 | 10.3 | ||
| 75×75 | 5.82 | 6.89 | 7.95 | 8.97 | 10.0 | 11.1 | ||
| 80×80 | 7.37 | 8.50 | 9.61 | 10.7 | 11.8 | |||
| 90×90 | 8.33 | 9.65 | 11.90 | 12.2 | 13.4 | |||
| 100×100 | 9.28 | 10.8 | 12.20 | 13.6 | 15.0 |
Stainless Steel Channel Bar Specifications
Standard Sizes and Weight per Meter
| Size H×B (mm) | 3mm | 4mm | 5mm | 6mm | 7mm | 8mm | 9mm | 10mm | 12mm |
|---|---|---|---|---|---|---|---|---|---|
| 40×20 | 1.79 | ||||||||
| 50×25 | 2.27 | ||||||||
| 60×30 | 2.74 | 3.56 | 4.37 | 5.12 | |||||
| 70×35 | 3.23 | 4.21 | 5.17 | 6.08 | |||||
| 80×40 | 3.71 | 4.84 | 5.96 | 7.03 | |||||
| 90×45 | 4.25 | 5.55 | 6.83 | 8.05 | |||||
| 100×50 | 4.73 | 6.18 | 7.62 | 8.98 | 10.3 | 11.7 | 13.0 | 41.2 | |
| 120×60 | 9.20 | 10.9 | 12.6 | 14.2 | |||||
| 130×65 | 10.1 | 11.9 | 13.8 | 15.5 | 17.3 | 19.1 | |||
| 140×70 | 12.9 | 14.9 | 16.8 | 18.8 | 20.7 | ||||
| 150×75 | 13.9 | 16.0 | 18.1 | 20.2 | 22.2 | 26.3 | |||
| 160×80 | 14.8 | 17.1 | 19.3 | 21.6 | 23.8 | 28.1 | |||
| 180×90 | 16.7 | 19.4 | 22.0 | 24.5 | 27.0 | 32.0 | |||
| 200×100 | 18.6 | 21.6 | 24.5 | 27.4 | 30.2 | 35.8 |
About Our Company
We are a comprehensive stainless steel enterprise specializing in wholesale distribution, material processing, storage, and supply chain management. Located in Wuxi, the stainless steel trading hub, we have invested over 10 million yuan with annual sales exceeding 300 million yuan.
Strategic Partnerships
We maintain long-term cooperative relationships with leading steel mills including Taiyuan Steel, East Steel, Zhang Pu Steel, Hongxing Steel, Zhejiang Qingshan, and distribute imported stainless steel plates from Sweden, North America, South Africa, Japan, and Korea.
Material Portfolio
- 310S, 309S, 316L, 321, 304L, TP304, 347H
- 17-4PH, 317L, 2507, 2205, 904L
- High-temperature resistant stainless steel series
- Duplex stainless steel series
- Super stainless steel series
Processing Capabilities
- Plasma cutting machines
- Coil material opening equipment
- Laser cutting machines
- 8K mirror finishing
- Grinding and wire drawing
- Film and titanium plating equipment
- Thick plate cutting up to 150mm
- Custom shapes: rounds, squares, and specialized profiles
Industry Applications
Our materials serve diverse industries including machinery, chemical processing, petroleum, boiler manufacturing, heat exchangers, food machinery, beverage equipment, and medical devices.

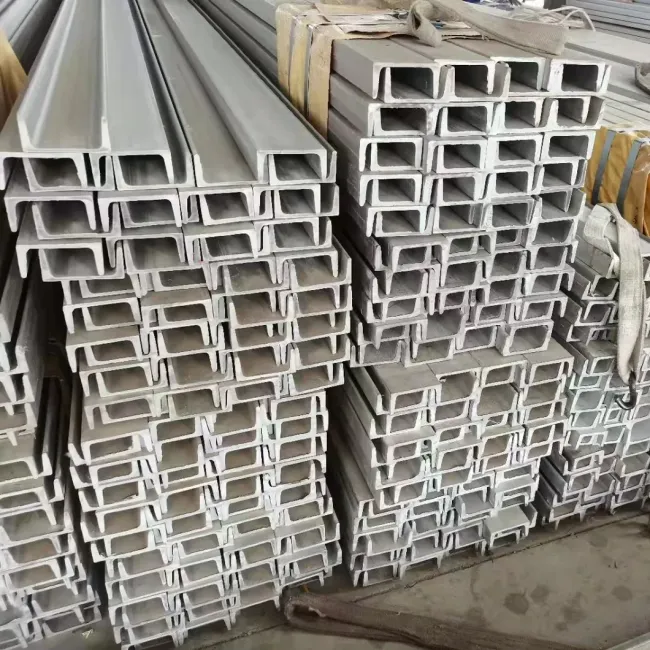

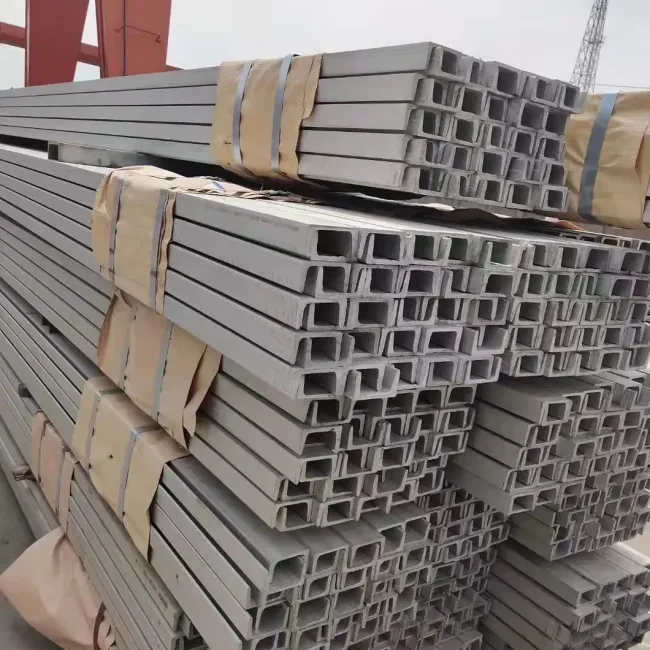

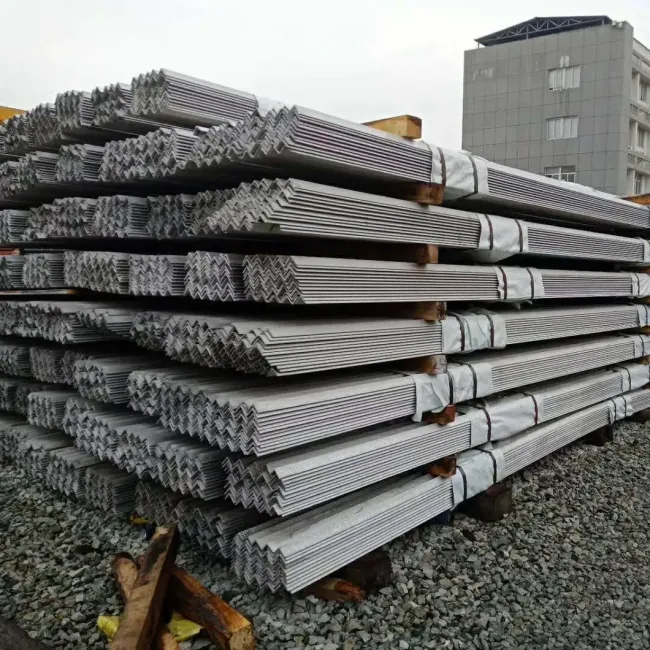

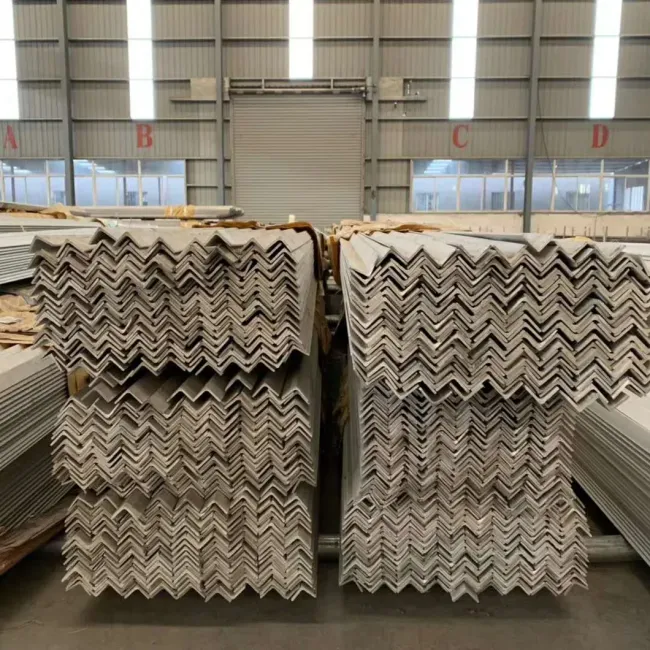

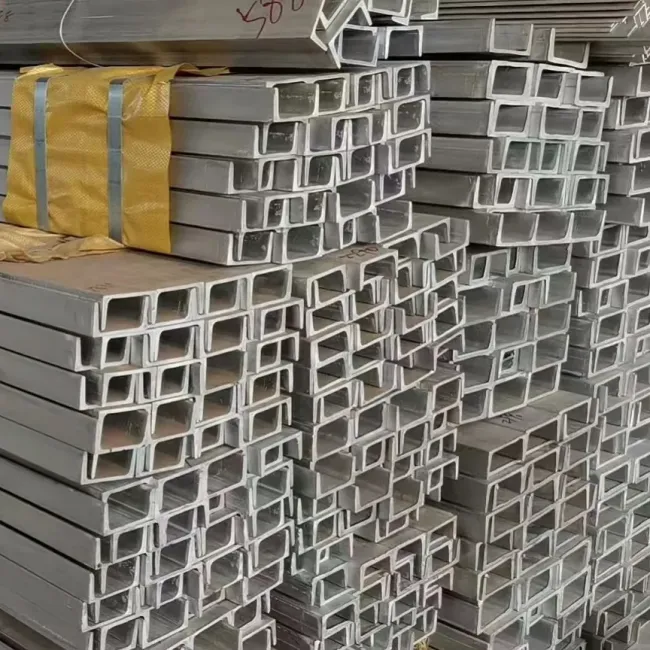

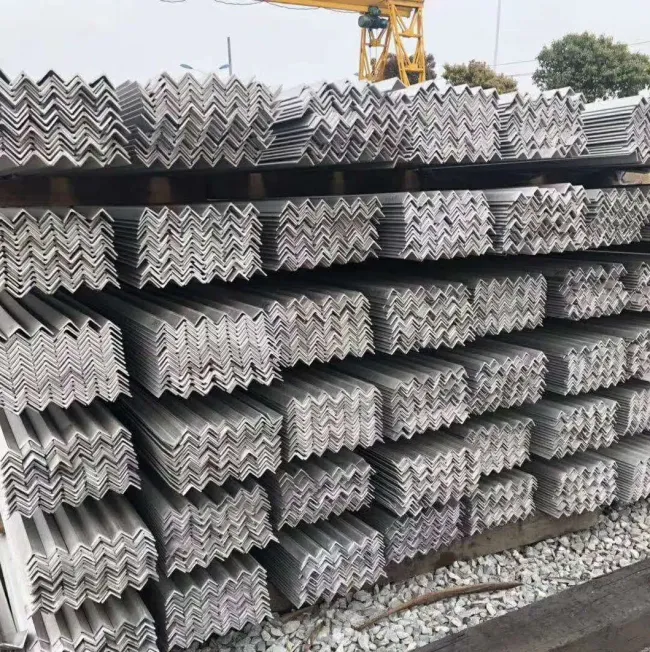

Product Gallery
Industrial Applications
Stainless steel angle bars and channel bars are essential structural components used in frame construction for high-voltage power transmission towers, steel bridge frameworks, construction tower crane booms, industrial workshop columns and beams, and support structures for air conditioning and solar power systems.
Common Applications Include:
- Building structures and construction engineering
- Industrial furnace frameworks
- Shipbuilding and marine structures
- Infrastructure and architectural projects
- Mechanical equipment supports
- Renewable energy installations
