Hot Rolled Bright Surface Stainless Steel U Channel Bar 30*30-100*100mm ASTM 304 316L
Price:
1.92
MOQ:
30
Delivery Time:
Negotiable
Product Description
AISI ASTM 304 304L 316 321 410 430 Stainless Steel C Channel U Channel Bar
Product Specifications
| Products Name | Stainless Steel Angle Bar / Stainless Steel Channel Bar |
|---|---|
| Grade | 201 304 310S 316L 321 2205 etc |
| Standard | ASTM GB DIN |
| Size of Angle Bar | 30×30×3 - 200×200×10mm × 6m length |
| Size of Channel Bar | 50×30×3 - 200×100×10mm × 6m length |
| Service | Cutting |
| Packing | Waterproof paper surround or wooden pallets |
| Brand | TSINGSHAN |
Standard Size and Weight per Meter - Stainless Steel Angle Bar
| Size (A×B mm) | Thickness / t mm | |||||||
|---|---|---|---|---|---|---|---|---|
| 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 | |
| 20×20 | 0.894 | 1.13 | 1.38 | |||||
| 25×25 | 1.13 | 1.45 | 1.77 | 2.06 | ||||
| 30×30 | 1.37 | 1.77 | 2.17 | 2.53 | ||||
| 35×35 | 1.61 | 2.09 | 2.57 | 3.01 | ||||
| 40×40 | 1.85 | 2.41 | 2.97 | 3.49 | ||||
| 45×45 | 2.12 | 2.76 | 3.40 | 4.00 | ||||
| 50×50 | 2.36 | 3.07 | 3.79 | 4.46 | 5.13 | 5.76 | 6.42 | 7.06 |
| 60×60 | 4.58 | 5.42 | 6.24 | 7.03 | ||||
| 63×63 | 5.03 | 5.95 | 6.84 | 7.71 | 8.60 | 9.48 | ||
| 70×70 | 5.42 | 6.42 | 7.39 | 8.34 | 9.31 | 10.3 | ||
| 75×75 | 5.82 | 6.89 | 7.95 | 8.97 | 10.0 | 11.1 | ||
| 80×80 | 7.37 | 8.50 | 9.61 | 10.7 | 11.8 | |||
| 90×90 | 8.33 | 9.65 | 11.90 | 12.2 | 13.4 | |||
| 100×100 | 9.28 | 10.8 | 12.20 | 13.6 | 15.0 | |||
Standard Size and Weight per Meter - Stainless Steel Channel Bar
| Size (H×B mm) | Thickness (mm) | ||||||||
|---|---|---|---|---|---|---|---|---|---|
| 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 | 12 | |
| 40×20 | 1.79 | ||||||||
| 50×25 | 2.27 | ||||||||
| 60×30 | 2.74 | 3.56 | 4.37 | 5.12 | |||||
| 70×35 | 3.23 | 4.21 | 5.17 | 6.08 | |||||
| 80×40 | 3.71 | 4.84 | 5.96 | 7.03 | |||||
| 90×45 | 4.25 | 5.55 | 6.83 | 8.05 | |||||
| 100×50 | 4.73 | 6.18 | 7.62 | 8.98 | 10.3 | 11.7 | 13.0 | 41.2 | |
| 120×60 | 9.20 | 10.9 | 12.6 | 14.2 | |||||
| 130×65 | 10.1 | 11.9 | 13.8 | 15.5 | 17.3 | 19.1 | |||
| 140×70 | 12.9 | 14.9 | 16.8 | 18.8 | 20.7 | ||||
| 150×75 | 13.9 | 16.0 | 18.1 | 20.2 | 22.2 | 26.3 | |||
| 160×80 | 14.8 | 17.1 | 19.3 | 21.6 | 23.8 | 28.1 | |||
| 180×90 | 16.7 | 19.4 | 22.0 | 24.5 | 27.0 | 32.0 | |||
| 200×100 | 18.6 | 21.6 | 24.5 | 27.4 | 30.2 | 35.8 | |||

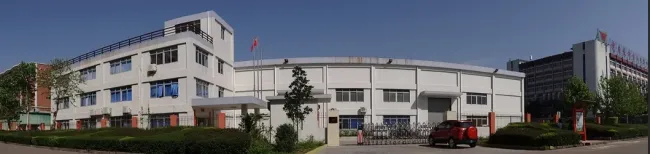

About Our Company
Our company is a comprehensive stainless steel enterprise specializing in material wholesale, processing, storage, and distribution. Located in Wuxi, the stainless steel trading center, we have a total investment of 10 million yuan with annual sales exceeding 300 million yuan.
We maintain long-term, stable cooperative relationships with renowned steel mills including Taiyuan, East, Zhang Pu, Hongxing, Zhejiang Qingshan, and distribute stainless steel plates imported from Sweden, North America, South Africa, Japan, South Korea, and other regions.
Material Range
- 310S, 309S, 316L, 321, 304L, TP304, 347H, 17-4PH, 317L, 2507, 2205-904L
- High temperature resistant stainless steel series
- Duplex stainless steel series
- Super stainless steel series and other specialized materials
Processing Capabilities
- Plasma cutting machines and coil material opening equipment
- Laser cutting machines and 8K mirror finishing
- Grinding, wire drawing, film and titanium plating equipment
- Material opening, strip cutting, plate cutting operations
- Oil mill wire drawing and complete coil processing
- Thick plate cutting up to 150mm thickness
- Custom cutting of rounds, squares, and shaped components
- Casting parts and forging parts manufacturing
Our materials are widely used in machinery, chemical, petroleum, boiler, heat exchanger, food machinery, beverage machinery, medical equipment, and various other industries.

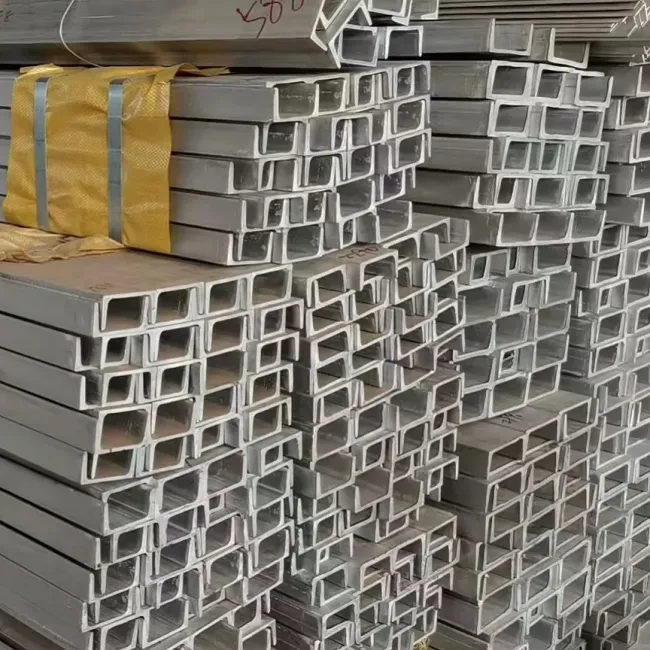

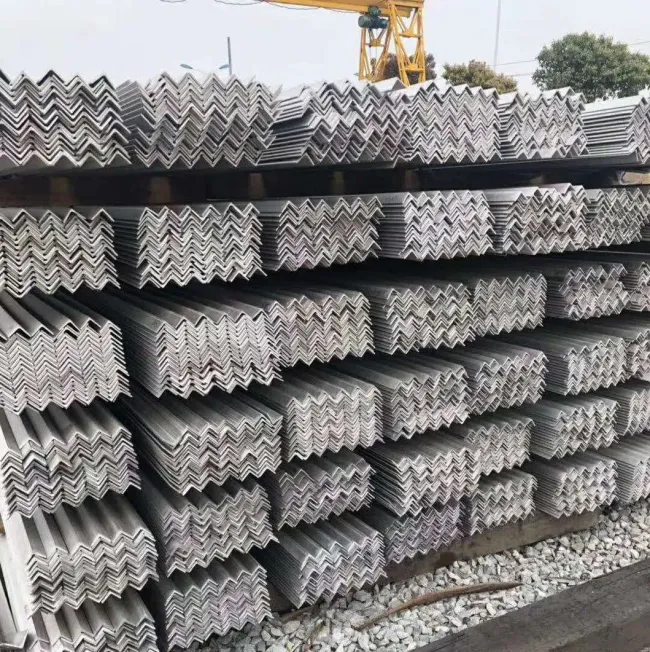

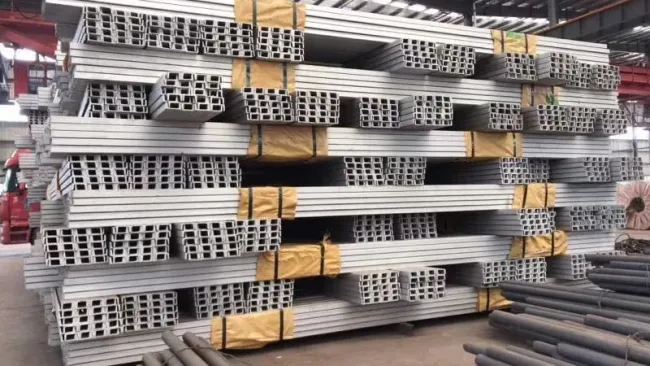

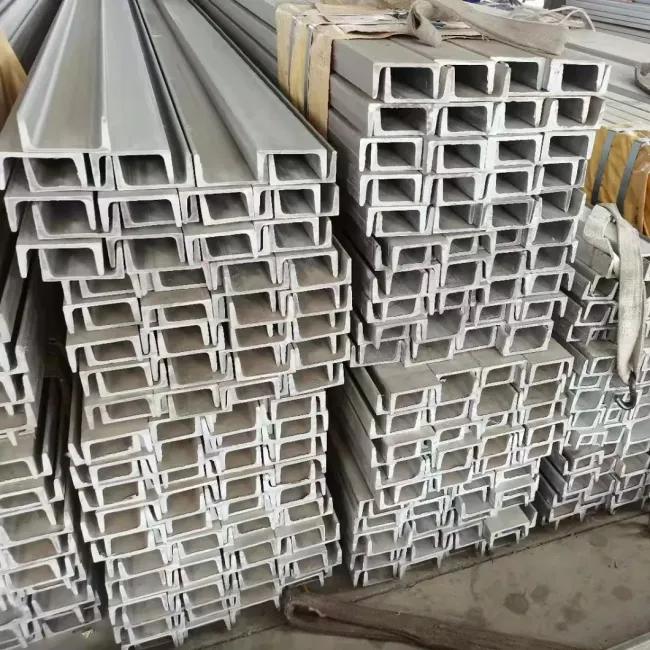

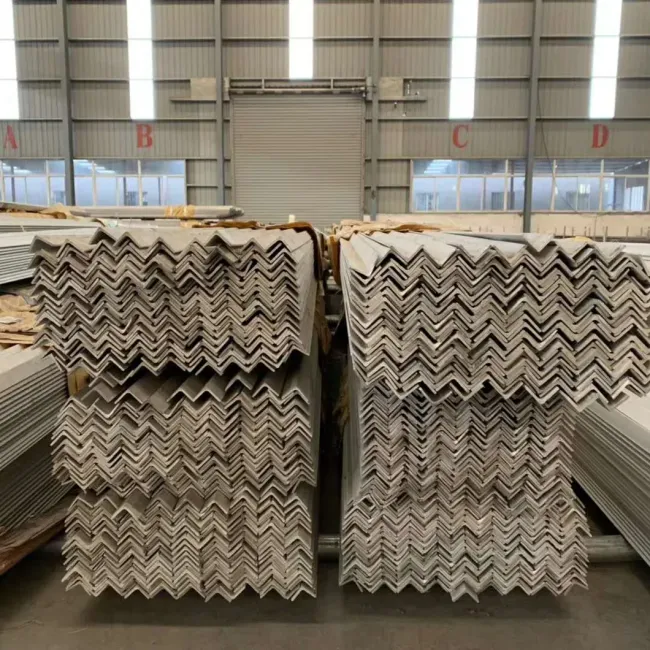

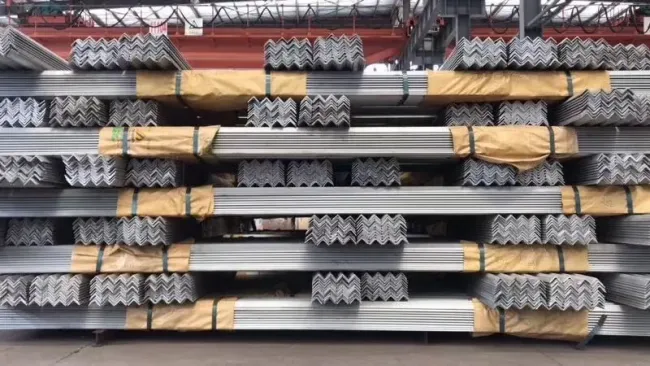

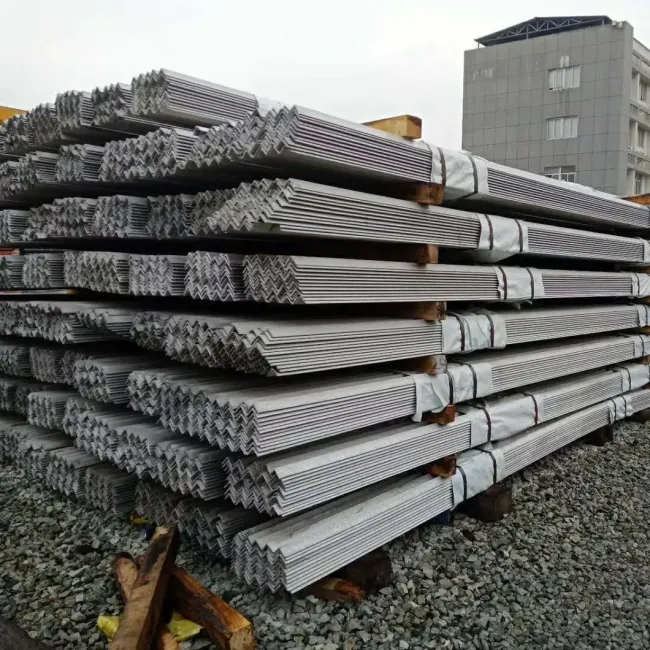

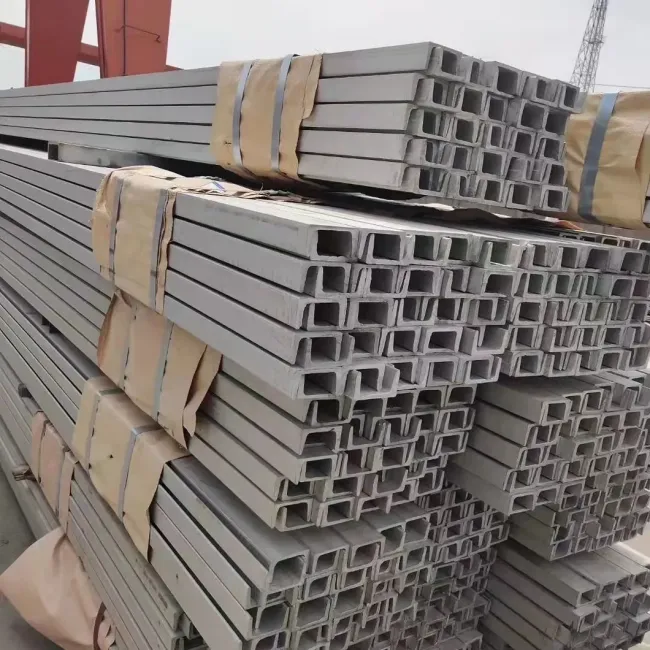

Product Photos
Applications
Stainless steel angle bars and channel bars are primarily used for frame structures including high-voltage power transmission towers, steel structure bridge main beam frames, construction site tower crane columns and booms, workshop columns and beams, as well as air-conditioning and solar-powered shelf installations.
These structural components are widely used in building construction and engineering projects such as house beams, ship beams, industrial furnaces, and various structural applications across multiple industries.
