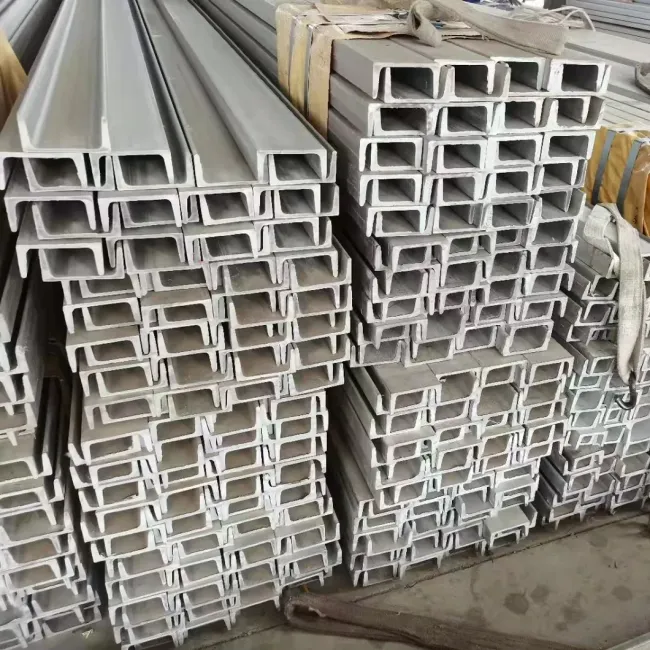

EN 10204-3.1 Certificated Hot Rolled Bright Surface Stainless Steel U-Channel and C-Channel
| Product Name | Stainless Steel Angle Bar / Stainless Steel Channel Bar |
|---|---|
| Grade | 201, 304, 310S, 316L, 321, 2205, etc. |
| Standard | ASTM, GB, DIN |
| Size of Angle Bar | 30×30×3 - 200×200×10mm × 6m length |
| Size of Channel Bar | 50×30×3 - 200×100×10mm × 6m length |
| Service | Cutting |
| Packing | Waterproof paper surround or wooden pallets |
| Brand | TSINGSHAN |
| Size (A×B mm) | 3mm | 4mm | 5mm | 6mm | 7mm | 8mm | 9mm | 10mm |
|---|---|---|---|---|---|---|---|---|
| 20×20 | 0.894 | 1.13 | 1.38 | |||||
| 25×25 | 1.13 | 1.45 | 1.77 | 2.06 | ||||
| 30×30 | 1.37 | 1.77 | 2.17 | 2.53 | ||||
| 35×35 | 1.61 | 2.09 | 2.57 | 3.01 | ||||
| 40×40 | 1.85 | 2.41 | 2.97 | 3.49 | ||||
| 45×45 | 2.12 | 2.76 | 3.40 | 4.00 | ||||
| 50×50 | 2.36 | 3.07 | 3.79 | 4.46 | 5.13 | 5.76 | 6.42 | 7.06 |
| 60×60 | 4.58 | 5.42 | 6.24 | 7.03 | ||||
| 63×63 | 5.03 | 5.95 | 6.84 | 7.71 | 8.60 | 9.48 | ||
| 70×70 | 5.42 | 6.42 | 7.39 | 8.34 | 9.31 | 10.3 | ||
| 75×75 | 5.82 | 6.89 | 7.95 | 8.97 | 10.0 | 11.1 | ||
| 80×80 | 7.37 | 8.50 | 9.61 | 10.7 | 11.8 | |||
| 90×90 | 8.33 | 9.65 | 11.90 | 12.2 | 13.4 | |||
| 100×100 | 9.28 | 10.8 | 12.20 | 13.6 | 15.0 |
| Size (H×B mm) | 3mm | 4mm | 5mm | 6mm | 7mm | 8mm | 9mm | 10mm | 12mm |
|---|---|---|---|---|---|---|---|---|---|
| 40×20 | 1.79 | ||||||||
| 50×25 | 2.27 | ||||||||
| 60×30 | 2.74 | 3.56 | 4.37 | 5.12 | |||||
| 70×35 | 3.23 | 4.21 | 5.17 | 6.08 | |||||
| 80×40 | 3.71 | 4.84 | 5.96 | 7.03 | |||||
| 90×45 | 4.25 | 5.55 | 6.83 | 8.05 | |||||
| 100×50 | 4.73 | 6.18 | 7.62 | 8.98 | 10.3 | 11.7 | 13.0 | 41.2 | |
| 120×60 | 9.20 | 10.9 | 12.6 | 14.2 | |||||
| 130×65 | 10.1 | 11.9 | 13.8 | 15.5 | 17.3 | 19.1 | |||
| 140×70 | 12.9 | 14.9 | 16.8 | 18.8 | 20.7 | ||||
| 150×75 | 13.9 | 16.0 | 18.1 | 20.2 | 22.2 | 26.3 | |||
| 160×80 | 14.8 | 17.1 | 19.3 | 21.6 | 23.8 | 28.1 | |||
| 180×90 | 16.7 | 19.4 | 22.0 | 24.5 | 27.0 | 32.0 | |||
| 200×100 | 18.6 | 21.6 | 24.5 | 27.4 | 30.2 | 35.8 |

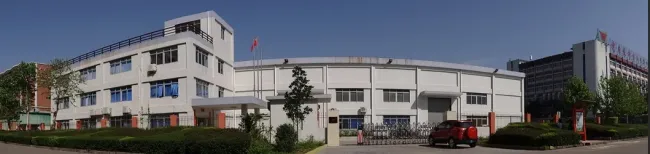

Our company is a comprehensive stainless steel enterprise specializing in material wholesale, processing, storage, and distribution. Located in Wuxi, the stainless steel trading center, we have a total investment of 10 million yuan with annual sales exceeding 300 million yuan.
We maintain long-term, stable cooperative relationships with renowned steel mills including Taiyuan, East, Zhang Pu, Hongxing, Zhejiang Qingshan, and others. We also distribute imported stainless steel plates from Sweden, North America, South Africa, Japan, South Korea, and other regions.
- 310S, 309S, 316L, 321, 304L, TP304, 347H, 17-4PH, 317L, 2507, 2205-904L
- High temperature resistant stainless steel series
- Duplex stainless steel series
- Super stainless steel series
- Plasma cutting machines
- Coil material opening equipment
- Laser cutting machines
- 8K mirror, grinding, wire drawing, film and titanium plating equipment
- Material opening, strip cutting, plate cutting
- Oil mill wire drawing, complete coil oil film wire drawing
- Thick plate cutting up to 150mm thickness
- Custom cutting of rounds, squares, and shaped pieces
- Casting parts and forging parts
Our materials are widely used in machinery, chemical, petroleum, boiler, heat exchanger, food machinery, beverage machinery, medical equipment, and other industries.

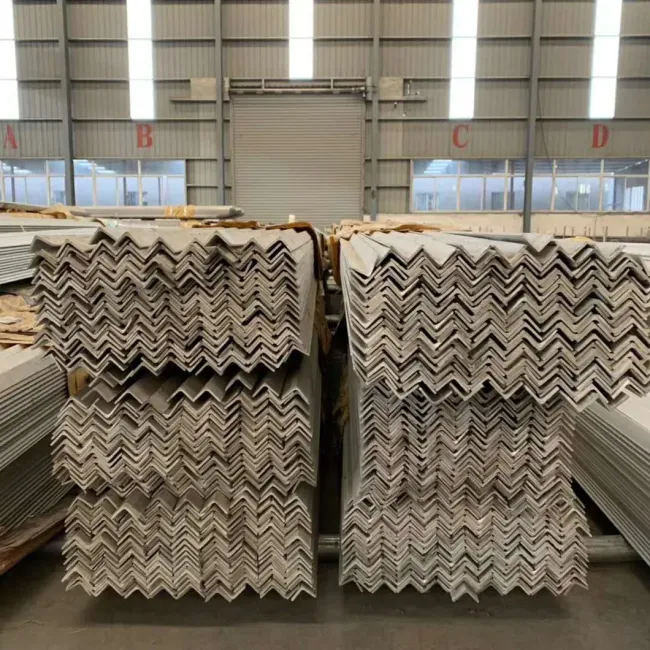

Stainless steel angle bars and channel bars are primarily used for constructing frame structures including:
- High-voltage power transmission towers
- Frame structures on both sides of main beams in steel bridge construction
- Columns and booms of tower cranes on construction sites
- Columns and beams in workshop structures
- Air-conditioning and solar-powered shelf supports under windows
- Building structures and engineering construction applications
- House beams, ship beams, industrial furnaces
Our stainless steel angle bars and channel bars are applied across various industrial sectors and construction applications.
Contact our team for detailed specifications, pricing, and custom requirements for EN 10204-3.1 certified stainless steel U-channels and C-channels.
