No. 4 Finish Grade 430 Cold Rolled Stainless Steel Sheet with PVC Application for Lift
Price:
1.35
MOQ:
100
Delivery Time:
Negotiable
Product Description
No. 4 Finish Stainless Steel Sheet Grade 430 0.4 - 3.0mm with PVC Application for Lift
NO.4 Finish Stainless Steel Sheet Grade 430 0.4 - 3.0mm With PVC Application for Lift
Product Specifications
Products: 430 Stainless Steel Sheet
Thickness: Cold rolled 0.3 - 3.0mm, Hot rolled 4.0 - 10.0mm
Standard Size: Cold rolled 1000×2000mm, 1219×2438mm, Hot rolled 1500×6000mm
Surface: 2B, BA, NO.4, Hairline, Mirror 8K, etc.
Brand: TISCO, JISCO, POSCO, BAOSTEEL
Standard: ASTM A240 / JIS G4305 / EN 10088-2
Other Grades: 201, 202, 301, 304, 304L, 309S, 310S, 316L, 316Ti, 317L, 321, 347, 410, 420, 430, 440, 441, 443, 444, 2205, 2507, etc.
Our Service: Slit Cutting, Surface processing
Introduction of 430 Stainless Steel
Stainless steel grade 430 is a non-hardenable steel containing straight chromium, belonging to the ferritic group of steels. This steel is known for its good corrosion resistance and formability, coupled with practical mechanical properties. It can be used in certain chemical applications.
Grade 430F stainless steel is usually provided in bar form for use in automatic screw machines. Grade 434 has similar properties as grade 430, although it is a molybdenum-bearing version that enhances corrosion resistance.
Key Properties
The following sections provide the key properties of grade 430 stainless steels coil, sheet and plate covered under ASTM A240/A240M.
Chemical Composition of 430 Stainless Steel
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | N |
|---|---|---|---|---|---|---|---|---|---|
| 430 | - 0.12 | - 1 | - 1 | - 0.04 | - 0.030 | 16 - 18 | - | - 0.50 | - |
| 430F | - 0.12 | - 1.25 | - 1 | - 0.06 | 0.15 - | 16 - 18 | - | - | - |
Mechanical Properties of 430 Stainless Steel
| Grade | Tensile Strength (MPa) min | Yield Strength 0.2% Proof (MPa) min | Elongation (% in 50mm) min | Hardness Rockwell B (HR B) max | Hardness Brinell (HB) max |
|---|---|---|---|---|---|
| 430 | 483 | 310 | 22 | 85 | 183 |
| 430F | 552 typical | 379 typical | 25 typical | - | 262 |
Physical Properties of 430 Stainless Steel
| Grade | Density (kg/m³) | Elastic Modulus (GPa) | Mean Coefficient of Thermal Expansion (μm/m/°C) | Thermal Conductivity (W/m.K) | Specific Heat 0-100°C (J/kg.K) | Electrical Resistivity (nΩ.m) |
|---|---|---|---|---|---|---|
| 430 | 7750 | 200 | 10.4 (0-100°C) 11.0 (0-315°C) 11.4 (0-538°C) | 26.1 (at 100°C) 26.3 (at 500°C) | 460 | 600 |
| 430F | 7750 | 200 | 10.4 (0-100°C) 11.0 (0-315°C) 11.4 (0-538°C) | 26.1 (at 100°C) 26.3 (at 500°C) | 460 | 600 |
Grade Specification Comparison
| Grade | UNS No | Old British | Euronorm | Swedish SS | Japanese JIS |
|---|---|---|---|---|---|
| 430 | S43000 | 430S17 | 1.4016 X8Cr17 | 2320 | SUS 430 |
| 430F | S43020 | - | 1.4104 X12CrMoS17 | 2383 | SUS 430F |
Possible Alternative Grades
| Grade | Reasons for choosing 430 |
|---|---|
| 430F | Higher machinability than 430 is needed in bar product, and reduced corrosion resistance is acceptable |
| 434 | Better pitting resistance is required |
| 304 | Slightly higher corrosion resistance is needed, together with greatly improved ability to be welded and cold formed |
| 316 | Much better corrosion resistance is needed, coupled with greatly improved ability to be welded and cold formed |
| 3CR12 | Lower corrosion resistance is acceptable in a cost-critical application |
Performance Characteristics
Corrosion Resistance
All ferritic grades, including stainless steel grade 430, have excellent stress corrosion cracking resistance. Grade 430 provides good corrosion resistance to numerous substances, with maximum resistance achieved in well-polished or buffed condition. Its pitting and crevice corrosion resistance is similar to grade 304. 430F is a high-sulfur free machining grade with comparatively lower resistance to pitting and crevice corrosion than non-free machining grades.
Heat Resistance
Stainless steel grade 430 can resist oxidation up to 870°C (1598°F) in intermittent usage and up to 815°C (1499°F) in continuous usage. It may become brittle at room temperature after prolonged heating in the 400-600°C (752-1112°F) range, which can be overcome with annealing.
Heat Treatment
Solution annealing is performed by heating to 815-845°C (1499-1553°F), followed by slow furnace cooling to 600°C (1112°F) and rapid air-cooling. Slow cooling between 540-400°C (1004-752°F) may cause embrittlement. For sub-critical annealing, heat to 760-815°C (1400-1499°F) followed by air-cooling or water quenching. This stainless steel cannot be hardened by thermal treatment.
Welding
Pre-heating at 150-200°C (302-392°F) is required before welding. Post-weld annealing at 790-815°C (1454-1499°F) can address embrittlement in welded metal, though grain refinement will not occur. Recommended filler rods include grade 430, 308L, 309, or 310 based on application requirements.
Machining
Grade 430 stainless steel is easier to machine than standard austenitic steels like grade 304, though galling may occur. Lightly drawn bars are easier to machine than annealed bars. Grade 430F offers excellent machinability.
Fabrication
Grade 430 stainless steel has a low work hardening rate that facilitates easy bending and forming. However, its low ductility rate makes rigorous operations challenging. Grade 430 wire can handle rigorous cold heading, with sub-critical intermediate annealing potentially required for extreme cold working.
Applications of 430 Stainless Steel
- Dish washer linings
- Refrigerator cabinet panels
- Element supports and fasteners
- Stove trim rings and chimney liners
- Automotive trim and lashing wires

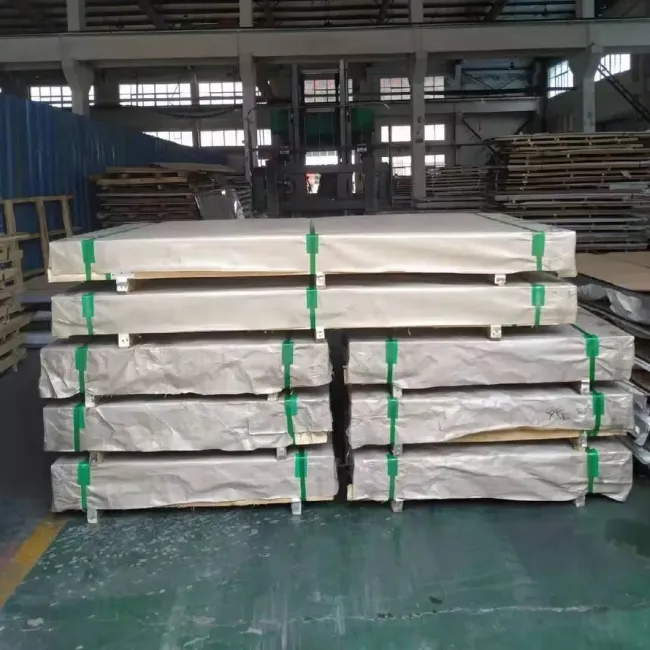

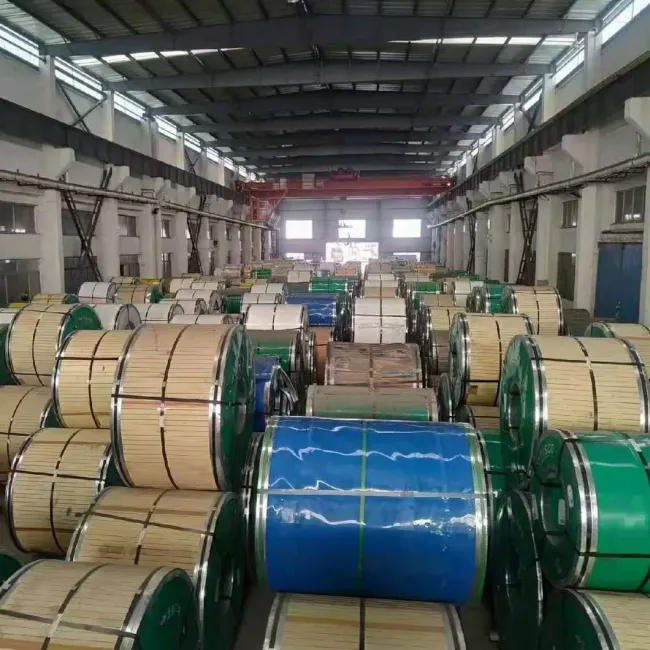

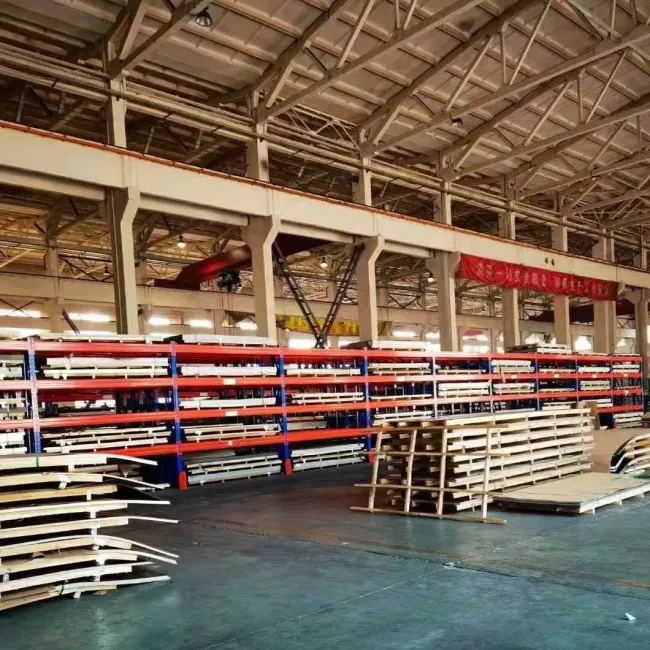

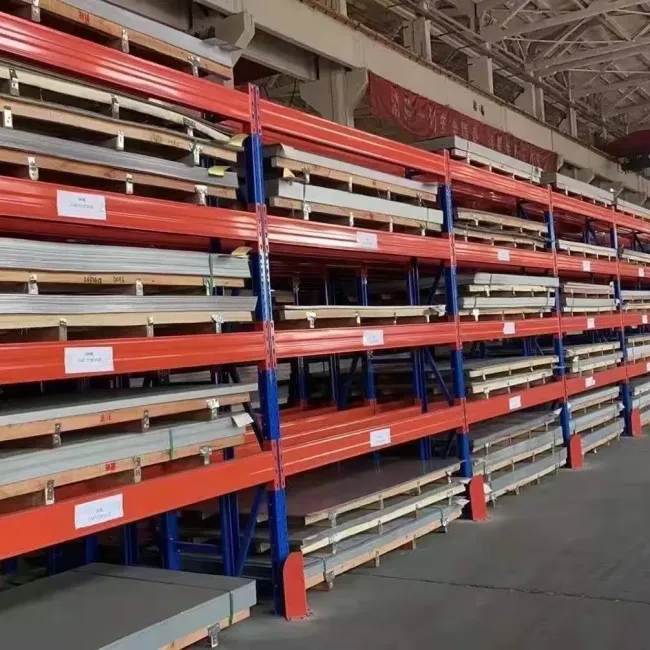

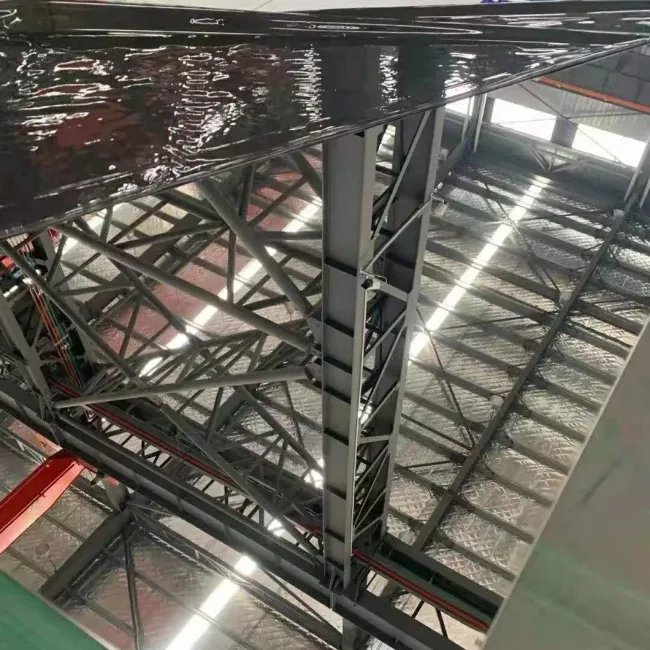

Product Images
