2000mm Width S30403 S30408 S30400 Hot Rolled Stainless Steel Plate with 2.0 - 16.0mm Thickness from TISCO
Price:
2.43
MOQ:
100
Delivery Time:
Negotiable
Product Description
2000mm Width S30403 S30408 S30400 Stainless Steel Plates
Premium stainless steel plates from TISCO available in thickness range 2.0-16.0mm with 2000mm width.
Product Specifications
Product Name: Stainless Steel Plate
Thickness: Cold rolled: 0.4mm-3mm
Hot rolled: 3.0mm-100mm
Hot rolled: 3.0mm-100mm
Width: 1000mm, 1219mm, 1250mm, 1500mm, 1800mm, 2000mm or customized
Length: 1000mm-6000mm or as requested
Available Materials
200 Series: 201, 202, 202cu, 204
300 Series: 301, 302, 303, 304, 304L, 304H, 309S, 310, 310S, 316, 316L, 317L, 321, 347
400 Series: 409, 409L, 410, 420, 430, 431, 439
Others: 2205, 2507, 904L, 317L, 254SMO, 253MA, 630, etc.
300 Series: 301, 302, 303, 304, 304L, 304H, 309S, 310, 310S, 316, 316L, 317L, 321, 347
400 Series: 409, 409L, 410, 420, 430, 431, 439
Others: 2205, 2507, 904L, 317L, 254SMO, 253MA, 630, etc.
Available Finishes
2B, BA, HL, Mirror, NO1, NO4, 8K
Standards
ASTM, AISI, DIN, EN, GB, JIS
Brands
TISCO, BAOSTEEL, ZPSS, LISCO, JISCO
Size Specification Chart
| Thickness | 1000mm | 1219mm | 1500mm | 1800mm | 2000mm |
|---|---|---|---|---|---|
| 0.3mm | ★ | ★ | |||
| 0.4mm | ★ | ★ | |||
| 0.5mm | ★ | ★ | |||
| 0.6mm | ★ | ★ | ★ | ||
| 0.7mm | ★ | ★ | |||
| 0.8mm | ★ | ★ | ★ | ||
| 1.0mm | ★ | ★ | ★ | ||
| 1.2mm | ★ | ★ | ★ | ||
| 1.5mm | ★ | ★ | ★ | ||
| 2.0mm | ★ | ★ | ★ | ★ | ★ |
| 2.5mm | ★ | ★ | ★ | ★ | ★ |
| 3.0mm | ★ | ★ | ★ | ★ | ★ |
| 4.0mm | ★ | ★ | ★ | ||
| 5.0mm | ★ | ★ | ★ | ||
| 6.0mm | ★ | ★ | ★ | ||
| 8.0mm | ★ | ★ | ★ | ||
| 10.0mm | ★ | ★ | |||
| 12.0mm | ★ | ★ | |||
| 14.0mm | ★ | ★ | |||
| 16.0mm | ★ | ★ |
About 304 Stainless Steel
Grade 304 is the most commonly used stainless steel. It is an austenitic, corrosion-resistant steel with excellent strength, toughness, fabrication characteristics and weldability. The low carbon version, 304L, may be required for full corrosion resistance when thicker sections are welded. The 304H version has a guaranteed minimum carbon content, which ensures good strength at high temperatures.
Typical Applications
- Brewing and dairy equipment
- Evaporators, drums, barrels
- Heat exchangers, hospital equipment
- Refrigeration parts
- Chemical and food processing
- Shop fittings, bench tops, kitchens
- Kitchen utensils, sinks, wash troughs
- Hand rails, dishwashers, clothes dryers
- Ovens, heating trays, air conditioning equipment
- Guttering and rain water goods
- Counters and display cabinets
- Commercial oven hoods, beer barrels
Chemical Composition
| Grade | Carbon | Silicon | Manganese | Phosphorus | Sulphur | Nickel | Chromium | Nitrogen |
|---|---|---|---|---|---|---|---|---|
| 304 Spec (max) | 0.08 | 0.75 | 2.00 | 0.045 | 0.030 | 8.00-10.50 | 18.00-20.00 | 0.10 |
| 304 Typical | 0.045 | 0.49 | 1.22 | 0.028 | 0.005 | 8.3 | 18.2 | 0.045 |
| 304L Spec (max) | 0.03 | 0.75 | 2.00 | 0.045 | 0.030 | 8.00-12.00 | 18.00-20.00 | 0.10 |
| 304L Typical | 0.020 | 0.42 | 1.46 | 0.028 | 0.005 | 9.1 | 18.3 | 0.048 |
Mechanical Properties
| Grade/Thickness | 0.2% Proof Stress (MPa) | Tensile Strength (MPa) | Elongation (%) | Hardness HB (max) |
|---|---|---|---|---|
| 304 Specification (min) | - | 205 | 520 | 40 |
| 304 0.3-3.5mm | 260 | 660 | 55 | 160 |
| 304 3.6-6mm | 250 | 600 | 55 | 160 |
| 304 >6mm | 240 | 580 | 55 | 155 |
Available Forms & Finishes
We supply 304 stainless steel as plate, coil, sheet, strip, round, hexagon, flat bar, angles, tube, pipe and welding consumables.
Finishes: No1 (hot rolled, annealed and pickled), 2D (cold rolled), 2B (cold rolled, skin passed), N4 (polished), BA (bright annealed).
Corrosion Resistance
Grade 304 stainless steel has excellent corrosion resistance in many environments. It provides good service in atmospheric conditions, resisting most environments except for marine conditions or heavy industrial pollution. Best appearance is maintained where design allows even rain washing of surfaces.
Applications
- Architecture & Building: Surface, Pillar, Window frame, Stair hand-rail
- Kitchen Utensils: Washing machine drum, Gas range stove, Plate, Housewares, Hollowware
- Others: Computer components, Automotive trim

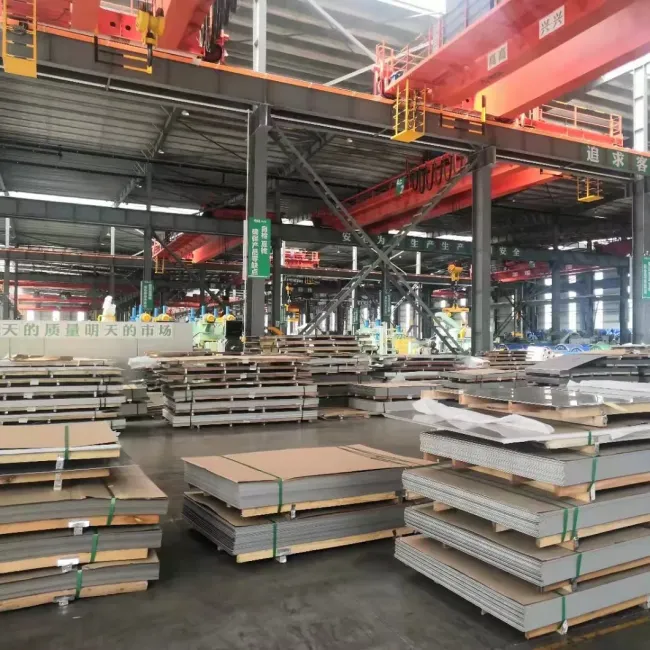

Packing & Delivery
Stainless steel coils are packed with kraft paper, plastic plate and wooden pallet. Packages are designed to avoid damage during transportation and can be customized according to regulations and customer requests.
Shipping Details
| MOQ | 1 Ton |
| Price Term | FOB |
| Payment | L/C at sight or 30% TT as deposit |
| Delivery Time | 20-30 days after receiving deposit |
| Sample | Samples free, express charges borne by customer |
Product Images

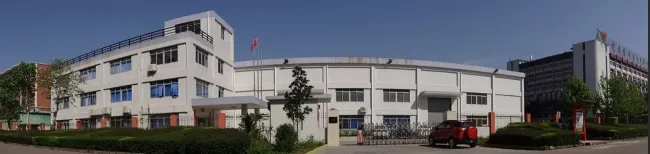

Company Information
Our company is a professional stainless steel trading company integrating sales, processing, distribution and storage. We adhere to "high efficiency, mutual benefit, service first" business philosophy with reasonable and preferential prices, providing society with various inexpensive quality stainless steel products.
We specialize in distribution of domestic and imported cold and hot rolled stainless steel coils and plates, operating steel types: 201, 202, 304, 321, 316L, 444, 409, 430, 309S, 310S and more. Products sourced from leading manufacturers including TISCO, BAOSTEEL, POSCO, and others.
