7-1/2 Inch Diameter Carbide Sealed Bearing Rotary Cone Drill Bits For Water Well Drilling

Price Negotiable

Price: 1000-3000 usd/pc

MOQ: 1

Delivery Time: 4 weeks

Brand: ENG

Product Description

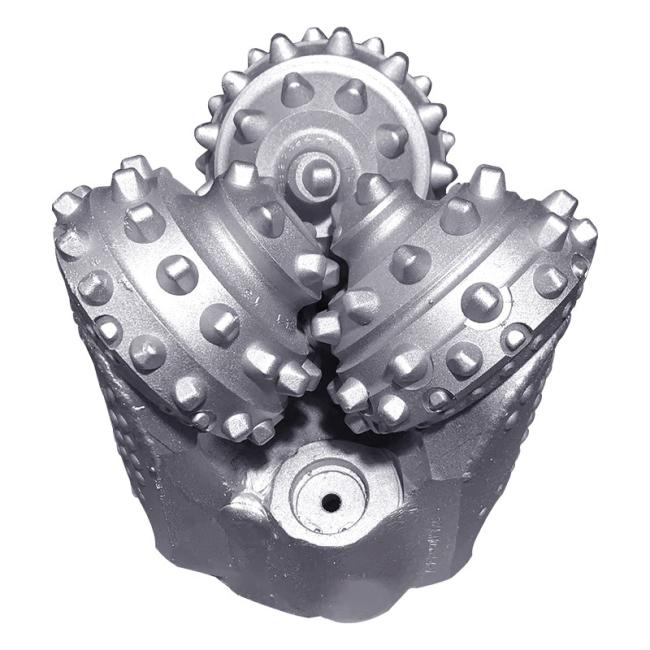

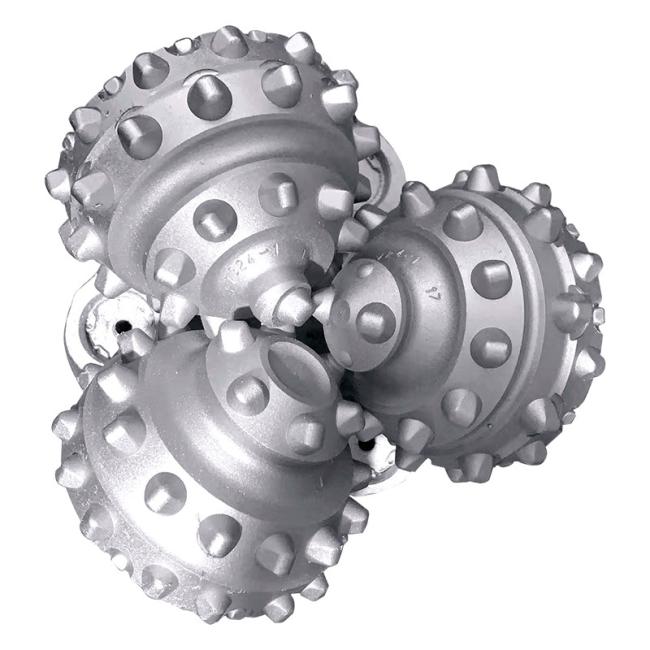

7 1/2" Carbide Sealed Bearing Rotary Drill Bits Water Well Drill Bits

Product profile
Carbide insert with high strength and wear resistance are adopted to improve the wear resistance and cutting efficiency.
New journal bearing structure greatly prolongs the working life of the bearing, and has the ability to withstand medium bit pressure and adapt to high speed.
New flat rubber sealing ring is more suitable for the working environment and using parameters of roller cone bit.
New sealing structure makes the sealing performance match with the bearing, thus greatly prolongs the service life of the drill bit.

Product Specifications
Diameter	7 1/2" 190mm
Bearing Type	Journal bearing/flat rubber seal ring
Drilling cycle type	Mud circulation
Connection thread ty	4 1/2'' REG
Operation Parameters
Rotary speed (r/min)	40-110 r/min
Weight on Bit (KN)	0.5～1.05 kN/mm
Formation	low compressive strength, medium soft, hard abrasive interbedded formation, such as hard shale, anhydrite, soft limestone, sandstone, interbedded dolomite, etc.

Package&Shipping

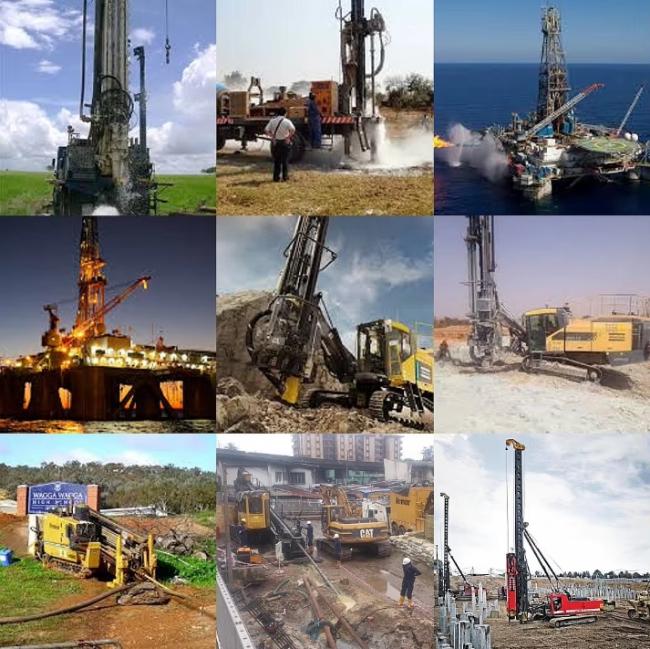

Applications

FAQ

Q: You are a trading company or manufacturer ?

A: Manufacturer, We are a 100% real factory with over 10 years' experience in water/oil/gas wells Drill Bits.

Q: How about your products ?

A : Both of tricone bits and PDC bits strictly conform to API 7 requirements and ISO9001. we will do kinds inspections before delivery, also cover for after-sales service.

Q: Package Methods ?

A: Normally wooden case, also can be steel box; can be customized if need.

Q: Payment Terms ?

A: we accept T/T, L/C, Paypal, Western Union, etc.

Q: Can I visit your factory ?

A: Yes, we welcome you to our factory all the time, will send invitation letters if need; also can show our workshop and warehouse online.
