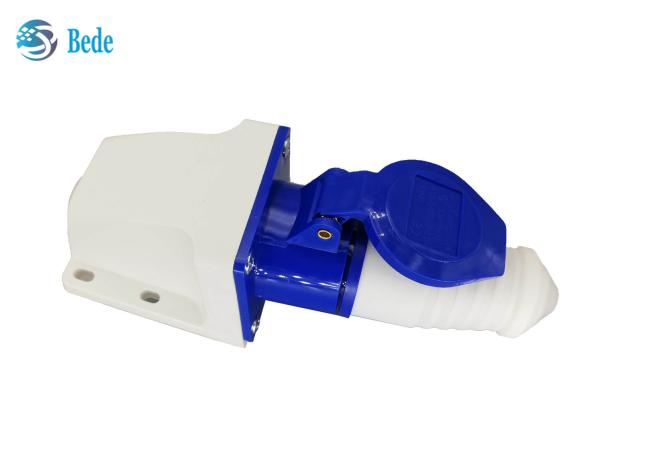

220-250V 16A Industrial Connector Male And Female Single Phase 2P+E Blue Color Wall Mounted Type

220~250V 16A Industrial Connector Male And Female Single Phase 2P+E Blue Color Wall Mounted Type

Description of the industrial connector

1. Execution Standards: ICE 60309
2. Phase: 2P+E / P+N+E
3. Rated Voltage: 220~250V
4. Rated Current: 16A
5. Socket fixing mode: No mounting holes required, screwed to a flat surface
6. Housing material: Polypropylene
7. Pins material: Brass
8. Waterproof Grade: IP44
9. Size: as following photos

Applications of the industrial connector

   Industrial connectors provide high power power transmission, widely used in metal smelting, petrochemical industry, railroads, ships, military industry and industrial equipment, this 2P+E single phase connector is also used for home power supply, campgrounds, yachts, garden equipment.

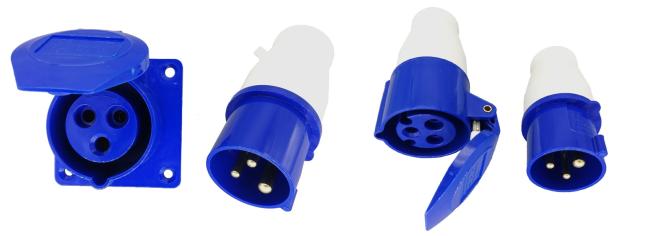

Panel mounting model and coupler type in stock too, feel free to contact us if they are needed.
