Male And Female DB 2w2 Solder Cup Coaxial Power Connector Waterproof IP 68
Male And Female D Sub 2w2 Solder Cup Coaxial Power Connector Waterproof IP 68
Description
2W2 d sub coaxial cable female and male connector, which made of copper shell, PBT+15%GF insulator, and epoxy resin as sealling material, have a solid body to meet the IP67 protection, with the option of corrosion protection or corrosion resistance, is well suited for outdoor harsh environment applications.

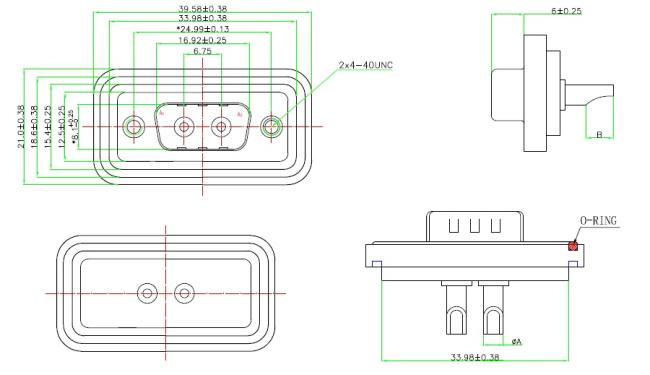

Please refer to the following drawings for dimensions. If more details are needed, please feel free to contact us
How to Buy
We provide this product with different rated currents for different usage scenarios. Please let us know the part number and quantity. We will wholeheartedly provide you with the best products and services.
We offer this connectors with sealed cable and sealed panel mounting options, and both of them can be straight type and right angle type. Please feel free to contact us for more details.
| Part number | A | B | Wire Gauge/AWG | Rated current/A |
| DB3W3-1 | 2.5 | 4.5 | 14~16 | 10 |
| DB3W3-2 | 3.6 | 5.0 | 10~12 | 20 |
| DB3W3-3 | 4.4 | 5.5 | 8~10 | 30 |
| DB3W3-4 | 5.5 | 5.5 | 6~8 | 40 |
