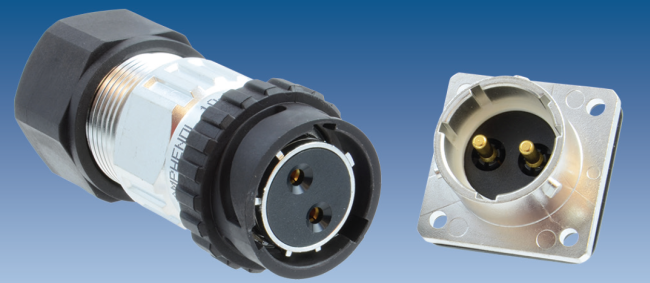

Amphe-OBTS Series Power Connector 2 Way 48V DC Plug C10-730511-Z2S / Z2P For Cell Tower

Amphe-OBTS Series Power Connector 2 Way 48V DC Plug C10-730511-Z2S / Z2P For Cell Tower

Amphenol Industrial Products Group introduces its new Amphe-OBTS series of power connectors, circular connectors based on the MIL-C-26482 Series 2 standard.

These innovative connectors are designed for next-generation base stations, providing a secure and stable power connection. They are compatible with cell towers from various brands, including Ericsson.

Features:

• Zinc alloy housing, tin/nickel plated, 360° electromagnetic interference shielding, shock and vibration resistant.

• Bayonet locking mechanism to prevent detachment.

• Operating temperature range: -55°C to +105°C.

• IP67 protection rating.

• Crimp-type socket with screw-end contacts, making it ideal for field installation.

• Cable sealing range: 6-18mm outer diameter.

• UL94-V0 certified and ISO 21207 Method B 5-cycle corrosion test.

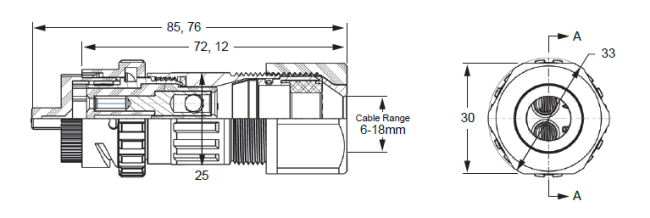

C10-730511-Z2S
2 WAY 48 V DC FEMALE STRAIGHT PLUG

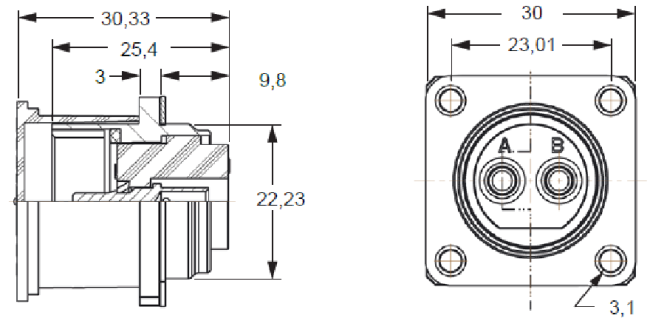

C10-730511-Z2P
2 WAY 48 V DC MALE PANEL RECEPTACLE

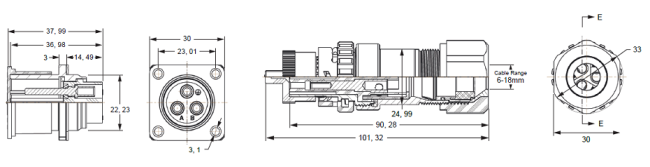

C10-730513-Z3S
3 WAY 400VDC/250V AC STRAIGHT PLUG

C10-730513-Z3P
3 WAY 400VDC/250V AC MALE PANEL RECEPTACLE
