Y Type Waterproof Cable Connector 3 Channel 2 3 4 5 Pins IP68 250V 16~24A

Description


1.Made of Nylon PA66 plastic material for long service life, rust-proof and flame retardant.
2.Waterproof grade IP68, suitable for water depth within 10 meters
3.High temperature resistant, the bottom adopts anti-slip design, more stable

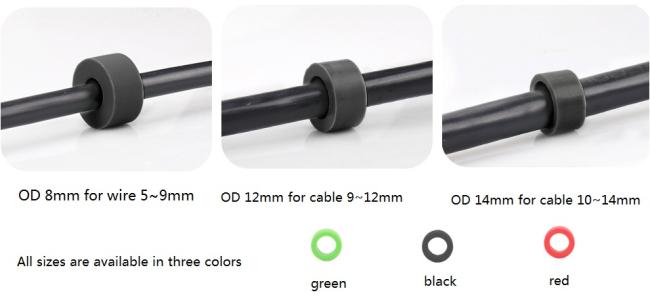

4.Strong sealing performance, use different sizes of silicone rings, suitable for different wires: 4-8mm /5-9mm /9-12mm,

5.Practical and easy to install.

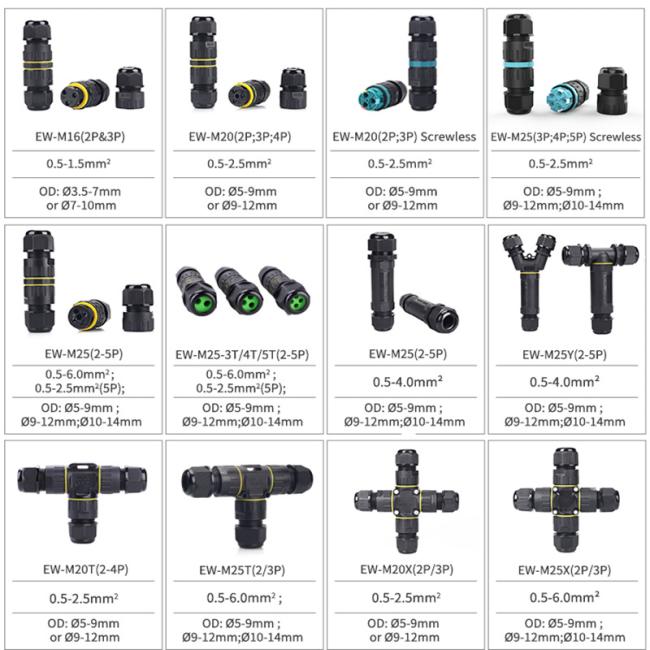

6.Item Style:2/3/4/5/6 pins: 5 kinds of terminals can be selected, suitable for 2 pins, 3 pins, 4 pins, 5 pins cable; about 2 and 3pins, screwless terminal blocks are recommended for faster replacement

7. Item Size:160*60*30mm

8.Application range:Mainly used for outdoor waterproof equipment, street lamps, buried lights, underwater lights, tunnel lights, outdoor flood lights, etc.

Quick Details:

How to use

1. Unscrew the nut and take out the terminal
2. Strip the insulation layer of the wire, the outer layer is 19~23mm, and the inner layer is 8~10mm
3. Connect the wires from the output in parallel and insert into the terminal block, then tighten the screws
4. Insert the wire of the input end into the corresponding hole of the terminal and tighten the screw
5. Tighten the waterproof nut to complete
6. learn how to wiring from our YouTube:  https://youtu.be/cJ9dcrRI74c
