DB-9 Male And AISG Cables 8 Pin Female Connectors 50 Meter Or Customize Length

AISG Cables With DB-9 Male And AISG 8 Pin Female Connectors 50 Meter Or Customize Length​

Description

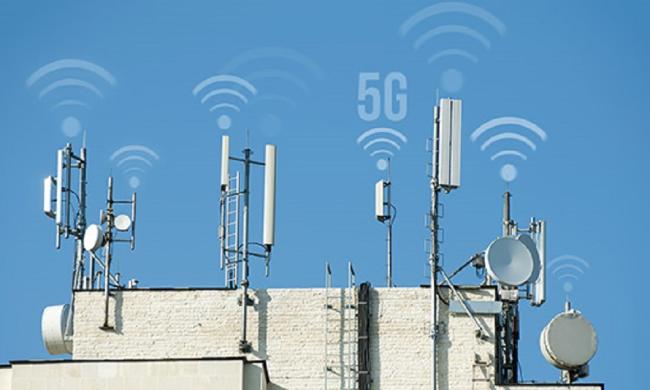

   Directly connects RCU (Remote Control Unit) with RRU (Remote Radio Units) with this AISG cables, feeds data and power to RET(Remote Electrical Tilt) system components.  Its widely used in 3G,4G and 5G networks, especially suitable for 3G,4G and 5G ESC antennas, tower amplifiers and base station equipment.

Advantages

• Suitable for complex environments with antenna base stations, -40°C ~ +85°C
• UV resistant, suitable for long-term outdoor environments
• Fireproof, flame retardant grade conforms to UL94-V0
• High-quality connectors, mating life is more than 500 times
• No abnormal phenomenon in the salt spray test 168H
• The length can be customized to meet the different requirements of buyers

Electrical Characteristics

1. Withstand voltage: 850V
2. Contact impedance: <5mΩ
3. Insulation resistance: 500MΩ
4. Rated voltage: 300V
