Circular Flange Gx20 Plug Male And Female Set Panel Mount Connector
GX 20 Connectors With Circular Flange Male And Female Set Panel Mount Connector

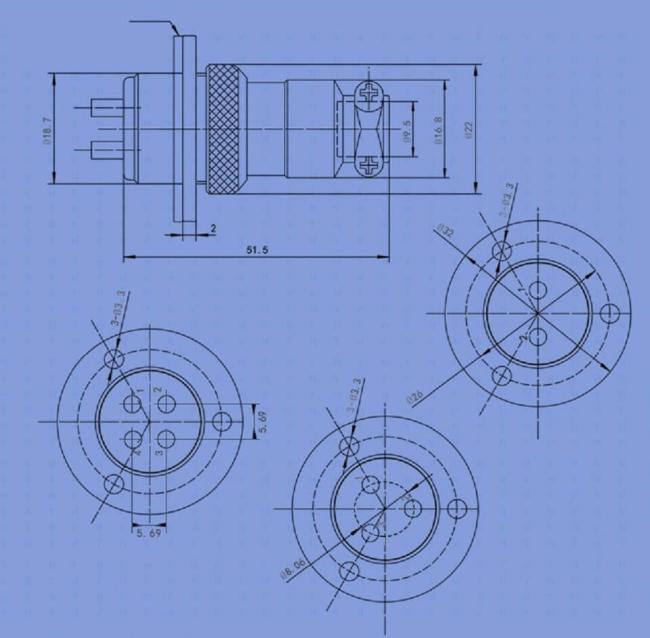

Structure
1. Silicone pad, used for waterproofing between the male end and the panel, you can choose whether it has a dust cover according to your needs
2. Male end, mounted on panel
3. spring washers, nut and screw, stainless steel material, for fixing male end to panels
4. Female end,
5. Housing, for fixing female end and cable, Zinc alloy material
6. Contacter, copper material, silver plated,
Description
1. 2/3/4/5/6/7/8 pins for your opinion
2. Mounting hole size: 19mm / M19
3. Applicable temperature: -50℃ ~ +70℃
4.Widely used in aviation, navigation, industrial control, testing instruments and other fields
Electrical parameters
| Rated current | Rated voltage | |||
| 2 pins | 3/4/5 pins | 6/7/8 pins | 2/34/5 pins | 6/7/8 pins |
| 10A | 7A | 5A | 250V | 150V |
Similar product
Other types of GX20 products are available, please contact us or back to the product catalog to know more
