GX 20 Elbow Aviation Connector Plug Panel Mounting Connectors 90 Degrees Female And Male Kits
Panel Mounting Connectors Sets GX 20 Elbow 90 Degrees Right Angle Connector
Description

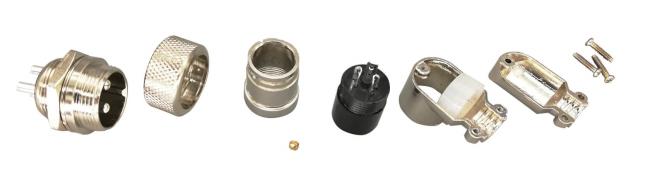

This is a high-quality aviation connector, made of zinc alloy, including an elbow female connector and an M19 male connector, the male end is installed on the panel, and the reserved hole of the panel is 19mm. The material of the contact is brass, silver plated, has excellent electrical conductivity and very low contact resistance. The insulating material is bakelite, which is heat-resistant and has high resistance, which ensures that this product can be used safely at -50~70℃.
- Factory outlet, buy male or female end only is available,
- Not retail, wholesale only
- Customized products are available, OEM ODM are welcome
Electricity data
| pins | 8 | 9 | 10 | 12 | 14 | 15 |
| rated current | 5A | 5A | 5A | 5A | 5A | 5A |
| rated voltage | 150V | 150V | 150V | 150V | 150V | 150V |
| Withstand voltage | 1500V | 1500V | 1500V | 1500V | 1500V | 1500V |
| Insulation resistance(MΩ) | 1000 | 1000 | 1000 | 1000 | 1000 | 1000 |
Similar product
GX20 right angle elbow connector 2 3 4 5 6 7 pins in stock
other GX20 panel mounting connector on sale also, please feel free to contact us via email
