M25 Circular Aviation Connector 4 Pin With Round Flange And Dust Cover 300V 20A
Price:
negotiation
MOQ:
100sets
Delivery Time:
within 48 hours
Brand:
BEDE
Product Description
M25 Circular Connectors Aviation Connector With Round Flange And Dust Cover 300V 20A
Description
- High-current aviation connectors for rail transit, aviation, navigation, industrial control, test instruments and other fields
- Panel mounting model, panel mounting hole size is 25mm
- Suitable for temperature range of -50~+70℃
- Wiring method: welding
- Pins: 2 3 4 5 6 7 pins

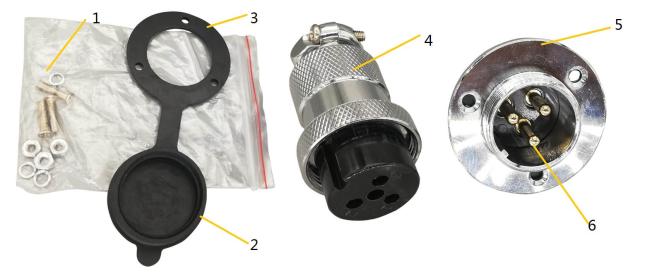

Structure
1.Screw nut and washers for mounting male connector on panel
2 & 3.Silicone gaskets and dust caps
4. Female connector
5.Male end with flange
6. contact pins, brass material and silver plated
Electrical data
| pins | 2pin | 3pin | 4pin | 5pin | 6pin | 7pin |
| Rated current / A | 20 | 20 | 15 | 15 | 12 | 12 |
| Rated voltage / V | 300 | 300 | 250 | 250 | 250 | 250 |
| Operating Voltage / V | 500 | 500 | 400 | 400 | 300 | 200 |
| size of contact hole / mm | 3.5 | 3.5 | 3.5 | 3.0 | 3.0 | 3.0 |
Similer products
M25 circular connector with round flange 8 9 10 12 pins in stock
M25 circular connector with square flange in stock 2 3 4 5 6 7 8 9 10 12 pins in stock
