Male And Female Docking Circular Connectors 2 3 Pins 10A 500V
WS16 Circular Connector Male And Female Docking Connectors 2 3 Pins 10A 500V

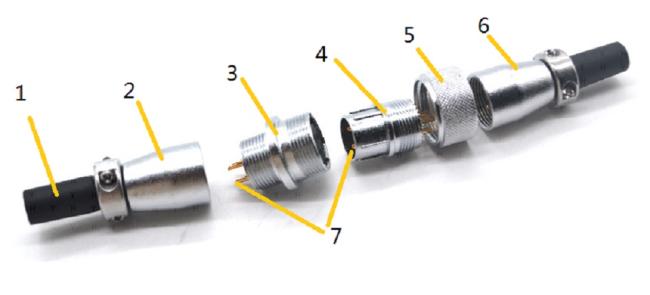

Product structure
1.Cable protection sleeve, suitable for cable diameter 6mm
2.housing for female connector, zinc alloy with chrome plated
3.female connector, housing materials zinc alloy with chrome plated, Insulator material PPS plastic
4.male connector, materials as the same as female connector
5.Nut,materials zinc alloy with chrome plated,used for fixing male and female adter connection
6.housing for male connector
7.contact pins, brass material with gold plated
Product Size
Female connector: ΦD=M18 L=47.5mm Φd max=10mm
Male connector: ΦD=21mm L=44.8mm Φd max=10mm
Electrical data
| pins | rated current | rated voltage | contact hole diameter | contact resistance | wire section (AWG) |
| 2 / 3 | 10A | 500V | φ1.5 | 2.5mΩ | 14 |
Similar product
This page is about WS16, WS20, WS24, WS28 on sales also, the series also includes panel mount mode, square flange mode, please feel free to contact us if you are interested
